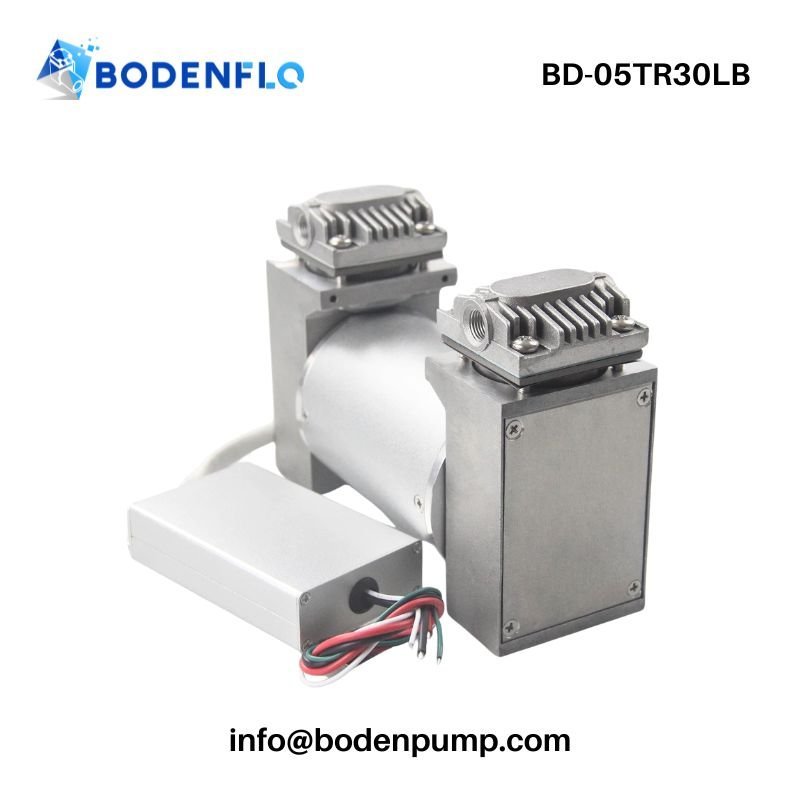

The BD-05TR30LB is a swing piston pump designed for OEM high-flow air compression and vacuum systems, delivering 30 L/min max flow, 7 bar max pressure, and -90 kPa vacuum with a twin-head brushless motor structure for applications requiring stronger airflow, stable pressure output, and oil-free operation.
| Voltage | 24 V DC |
|---|---|
| Max Flow | 30 L/min |
| Max Vacuum | -90 kPa |
| Max Pressure | 7 bar |
| Motor | Brushless DC Motor |
| Power | 130 W |
| Weight | 1.8 kg |

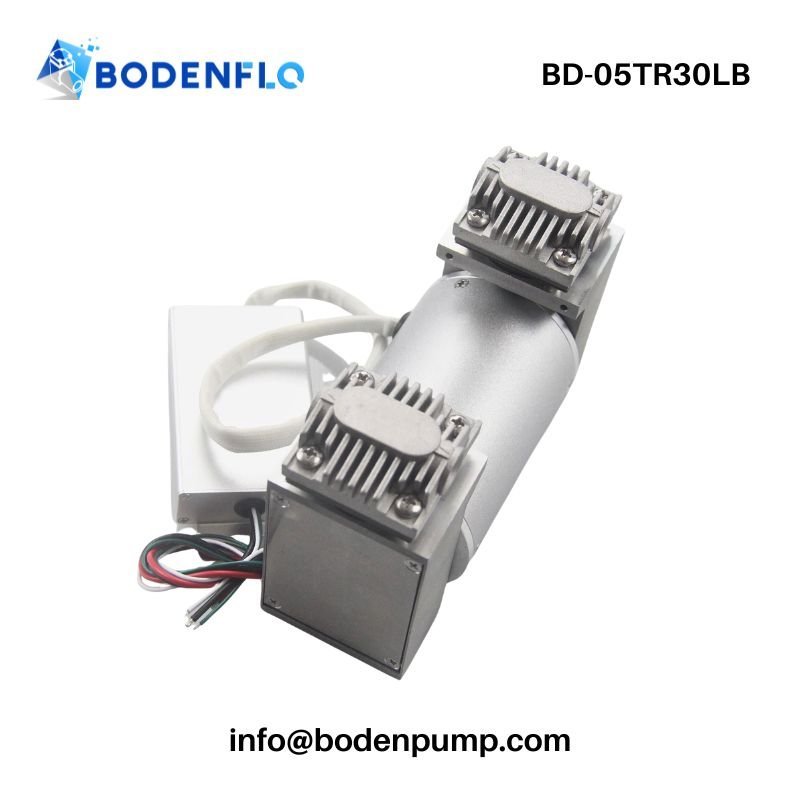

The BD-05TR30LB is a swing piston pump designed for OEM air compression and vacuum systems that require higher airflow, strong vacuum, and stable pressure output. Its twin-head structure increases total air delivery while maintaining the pressure and vacuum performance required in compact pneumatic equipment.
With 30 L/min max flow, 7 bar max pressure, and -90 kPa max vacuum, this model is suitable for high-flow micro compressor systems, vacuum generation modules, gas sampling equipment, medical pneumatic systems, and industrial air transfer applications. For OEM engineers, it provides a practical option when a single-head air pump cannot meet the required airflow capacity.
The following specifications help engineers evaluate whether BD-05TR30LB matches the required air flow, vacuum level, pressure output, electrical load, installation space, and operating conditions before sample testing.

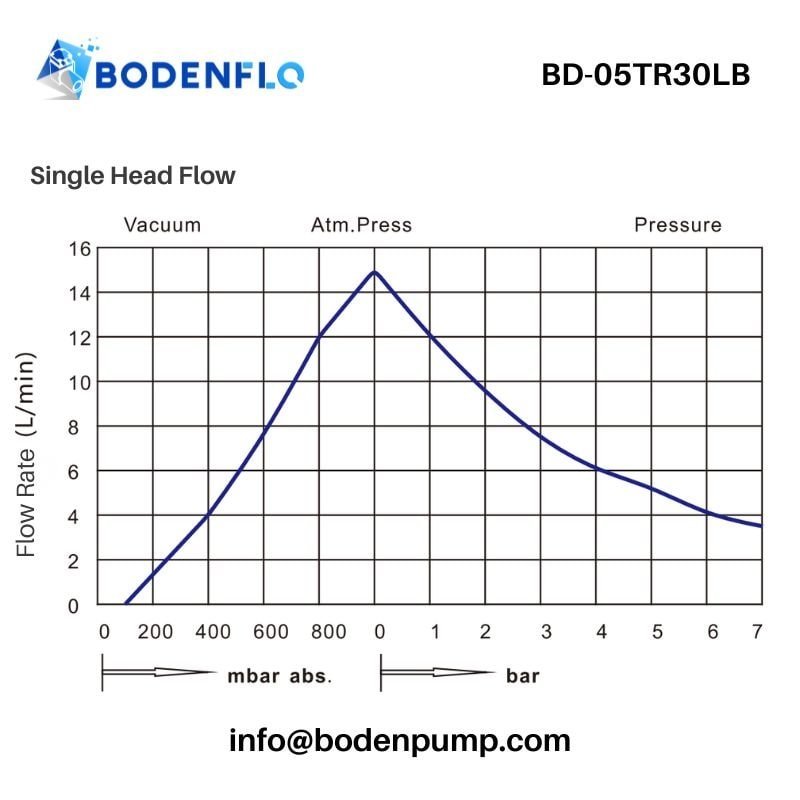

| Category | Specification |
|---|---|
| Basic Information | |
| Model | BD-05TR30LB |
| Type | Double Head Air Pump |
| Structure | Twin-Head Swing Piston Pump |
| Voltage Range | 24 V DC |
| Air Performance | |
| Max Flow | 30 L/min (1.059 cfm) |
| Max Vacuum | -90 kPa (-26.6 in.Hg / -900 mbar / -675 mmHg) |
| Max Pressure | 7 bar (101.5 psi / 7000 mbar / 0.7 MPa) |
| Electrical & Motor Data | |
| Motor Type | Brushless DC Motor |
| Max Load Current | 5.5 A |
| Power | 130 W |
| Lifetime | >10,000 h under rated operating conditions |
| Mechanical Data | |

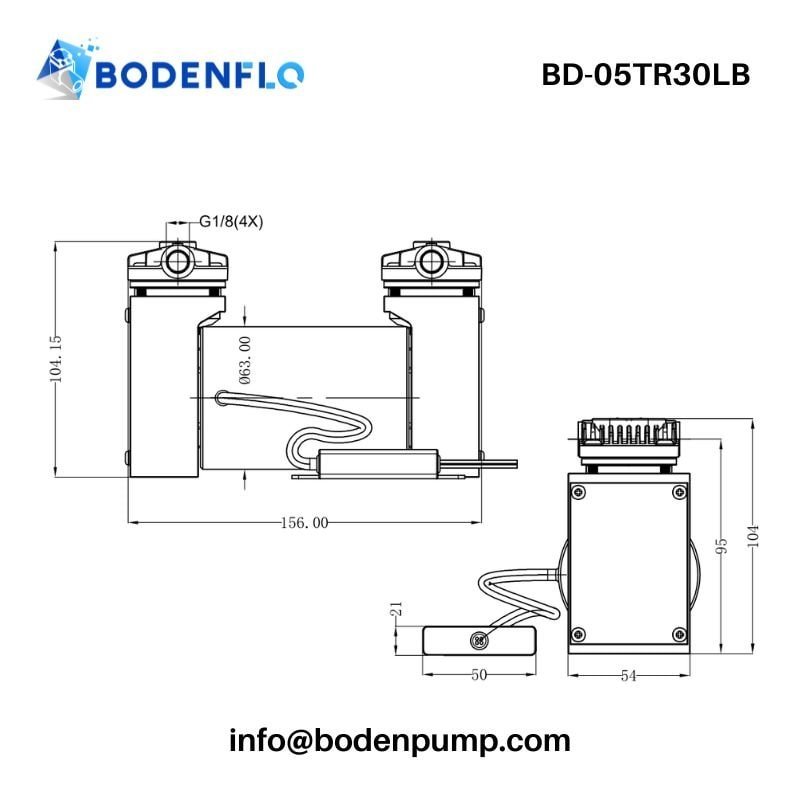

| Dimensions | 156 × 54 × 104 mm (6.14 × 2.13 × 4.09 in) |
| Weight | 1.8 kg (3.97 lb) |
| Operating Conditions | |
| Operating Ambient Temperature | -20°C to 60°C |
| Operating Medium Temperature | 5°C to 40°C |
The standard configuration is designed for oil-free air compression and vacuum generation in OEM equipment. The aluminum alloy pump head supports mechanical strength and heat dissipation, while the PTFE piston cup and FPM valve help improve sealing and gas compatibility.
| Component | Material / Feature |
|---|---|
| Pump Head | Aluminum Alloy |
| Piston Cup | PTFE |
| Valve | FPM |
| Motor | Brushless DC Motor |
| Operation | Oil-free, dry-running capable |
For neutral gases or general air transfer applications, the standard configuration can be evaluated first. For corrosive gases, special gas samples, or long exposure to aggressive media, material compatibility should be confirmed before sample testing.
If the standard version does not fully match your equipment design, BODENFLO can support selected customization items for OEM integration.
| Item | Customization Options |
|---|---|
| Wiring | Custom cable length and wire definition |
| Connector | Open leads, plug connectors, or OEM interface |
| Tubing Interface | Customized fittings or tubing connection support |
| Mounting | Custom bracket or installation structure support |
| Branding | Private label or customer-specific marking |
BODENFLO can also support project-level review of wiring, control signals, tubing connections, mounting position, and vibration control, helping reduce integration risk when the pump is integrated into compact high-flow pneumatic systems.
The BD-05TR30LB is designed for OEM equipment requiring higher airflow, high pressure, and strong vacuum in a compact twin-head pump platform. Its 30 L/min airflow, 7 bar pressure, and -90 kPa vacuum make it suitable for demanding medical, laboratory, industrial, and pneumatic applications.
Selecting a twin-head swing piston air pump involves more than comparing airflow, pressure, or vacuum specifications. A reliable OEM partner should help reduce development time, lower integration risk, and support long-term production. BODENFLO works with OEM customers from prototype evaluation through mass production to help simplify pneumatic system development.
Real application feedback helps buyers understand how BD-05TR30LB performs in higher-flow pressure and vacuum systems beyond the datasheet.
Germany | Analytical Instrument Engineer
Application: High-flow gas sampling module
Feedback: The twin-head structure helped us increase gas transfer capacity without using two separate pumps.
Finland | Shockwave Therapy Equipment Manufacturer
Application: Pneumatic module for ESWT system
Feedback: The compressor maintained stable operating performance at 4 bar, providing consistent pressure output and fast response throughout continuous shockwave treatment cycles.
South Korea | Industrial Equipment Manufacturer
Application: Air compression and detection system
Feedback: The 30 L/min flow capacity and oil-free structure made the pump suitable for our compact pneumatic platform.
Proper installation helps maintain stable pressure, vacuum performance, and service life during OEM integration.
Air Path and Sealing
Use sealed tubing and fittings to reduce pressure loss or vacuum leakage. If the inlet gas contains particles, dust, or liquid mist, add suitable filtration to protect the valve and piston structure.
Wiring and Control
Red wire is DC power positive, black wire is DC power ground, white wire is speed control, and green wire is speed feedback. For full-speed operation, leave the white control wire unconnected.
Mounting and Operation
Fix the pump securely to reduce vibration and housing resonance. During continuous or high-load operation, keep enough space for heat dissipation and avoid blocked outlets or excessive system restriction.
Material and Operating Conditions
The standard configuration uses an aluminum alloy pump head, PTFE piston cup, and FPM valve. For corrosive or special gases, confirm material compatibility before sample testing. Operating ambient temperature is -20°C to 60°C, and operating medium temperature is 5°C to 40°C.
[BD-05TR30LB Swing Piston Pump Datasheet (PDF)]
A double-head compressor uses two pumping chambers working simultaneously, providing significantly higher airflow from a single compact unit. Compared with a single-head compressor, it helps simplify the pneumatic layout, reduces the need for multiple pumps, and improves overall system efficiency in high-flow applications.
The rated airflow is measured under free-flow conditions. Actual performance depends on tubing diameter, pneumatic resistance, filters, leakage, and back pressure. Evaluating the complete pneumatic circuit is often more important than evaluating the compressor alone.
Yes. The BD-05TR30LB is designed for continuous-duty OEM applications when operated within the recommended voltage and load conditions. To ensure reliable long-term operation, the compressor should be installed with adequate ventilation or heat dissipation, especially in enclosed equipment.
In practical applications such as shockwave therapy systems, the compressor has demonstrated stable continuous operation at a working pressure of 4 bar, providing reliable airflow and pressure throughout extended operating cycles.
Yes. BODENFLO offers multiple swing piston compressors to match different airflow and pressure requirements.
| Type | Voltage | Model | Max Flow | Max Pressure | Max Vacuum |
|---|---|---|---|---|---|
| Single-Head Swing Piston Compressor | 24 V DC | BD-08AB-S | 45 L/min | 7 bar | -85 kPa |
| Single-Head Swing Piston Compressor | 24 V DC | BD-05TR15LB | 15 L/min | 7 bar | -90 kPa |
| Double-Head Swing Piston Compressor | 24 V DC | BD-05TR32L | 32 L/min | 8-10 bar | -85 kPa |
It depends on your application. For systems requiring instant high airflow, stable pressure, or pulse output, adding an air tank can improve pressure stability and reduce compressor cycling. For continuous airflow applications, the compressor can often be connected directly without an air reservoir.
Yes. The BD-05TR30LB supports PWM speed control and speed feedback (FG output), allowing engineers to adjust airflow, pressure, noise, and power consumption according to different operating conditions.
If you are developing high-flow air compression systems, gas sampling equipment, medical pneumatic modules, analytical instruments, or compact pressure/vacuum equipment, BODENFLO can support model selection, customization, sample testing, and long-term supply.
