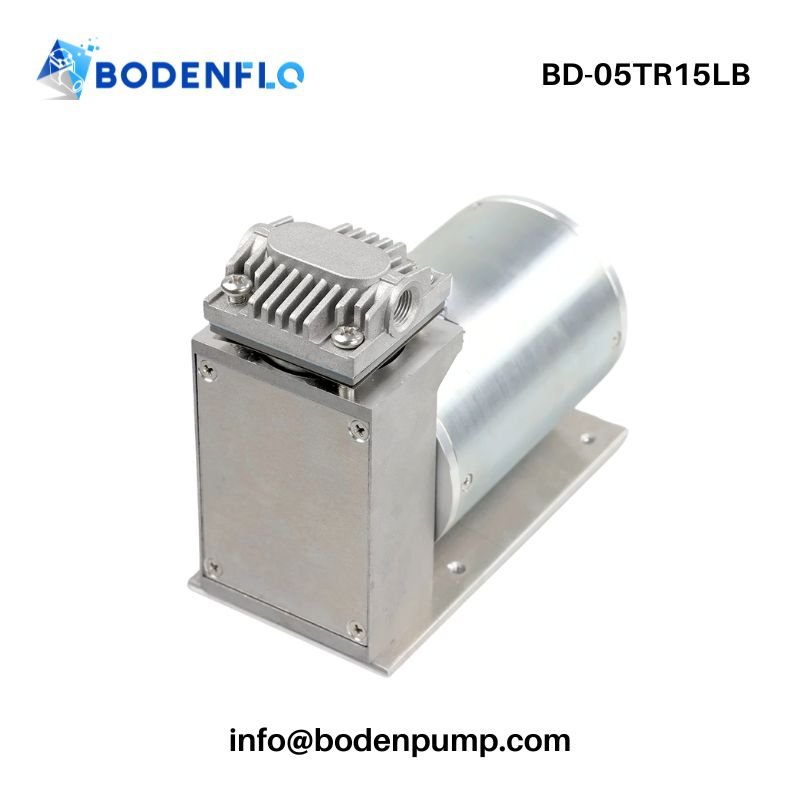

The BD-05TR15LB is a swing piston compressor designed for OEM high-pressure air and vacuum systems, delivering 15 L/min max flow, 7 bar max pressure, and -90 kPa vacuum with a high-power brushless motor for applications requiring stronger start-up, stable compression, and compact integration.
| Voltage | 24 V DC |
|---|---|
| Max Flow | 15 L/min |
| Max Vacuum | -90 kPa |
| Max Pressure | 7 bar |
| Motor | Brushless DC Motor |
| Power | 84 W |
| Weight | 1.6 kg |
The BD-05TR15LB is a swing piston compressor designed for OEM air compression and vacuum systems that require high pressure, strong vacuum, and reliable start-up under load. Its positive displacement piston structure helps generate stable gas compression and transfer in compact equipment where a standard diaphragm air pump may not provide enough pressure capability.
With 15 L/min max flow, 7 bar max pressure, -90 kPa max vacuum, and an 84 W brushless motor, this model is suitable for high-pressure micro air systems, vacuum generation modules, gas sampling equipment, and compact pneumatic devices. For OEM engineers, it provides a stronger motor option for applications requiring stable compression, oil-free operation, and long service life.
The following specifications help engineers evaluate whether BD-05TR15LB matches the required air flow, pressure output, vacuum level, electrical load, material compatibility, and installation space before sample testing.
| Category | Specification |
|---|---|
| Basic Information | |
| Model | BD-05TR15LB |
| Type | BLDC Air Compressor |
| Structure | Swing Piston Compressor |
| Voltage Range | 24 V DC |
| Air Performance | |

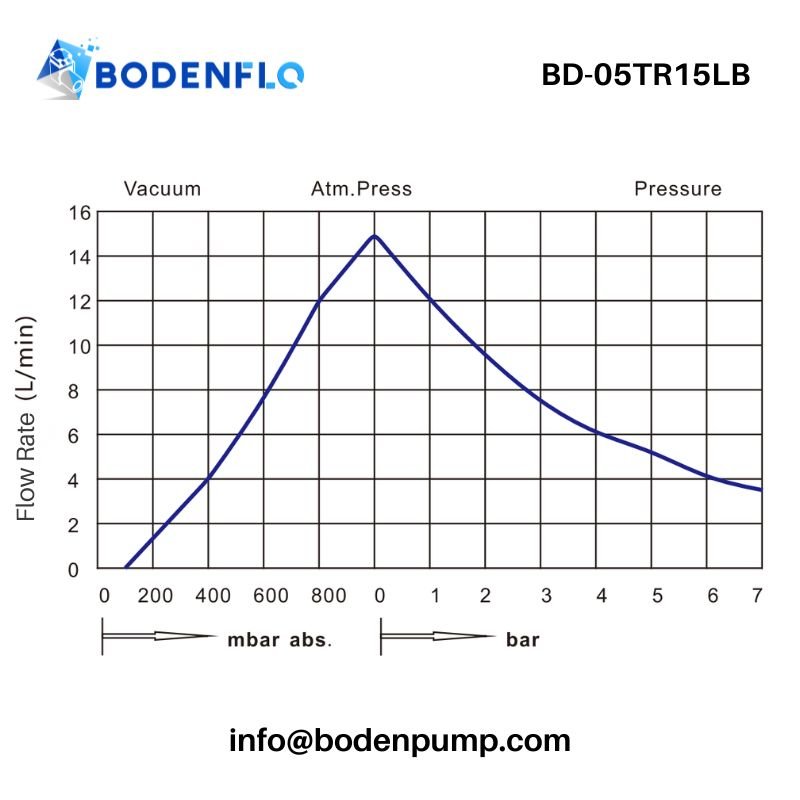

| Max Flow | 15 L/min (0.530 cfm) |
| Max Vacuum | -90 kPa (-26.6 in.Hg / -900 mbar / -675 mmHg) |
| Max Pressure | 7 bar (101.5 psi / 7000 mbar / 0.7 MPa) |
| Electrical & Motor Data | |
| Motor Type | Brushless DC Motor |
| Max Load Current | 3.5 A |
| Power | 84 W |
| Lifetime | >10,000 h under rated operating conditions |
| Mechanical Data | |

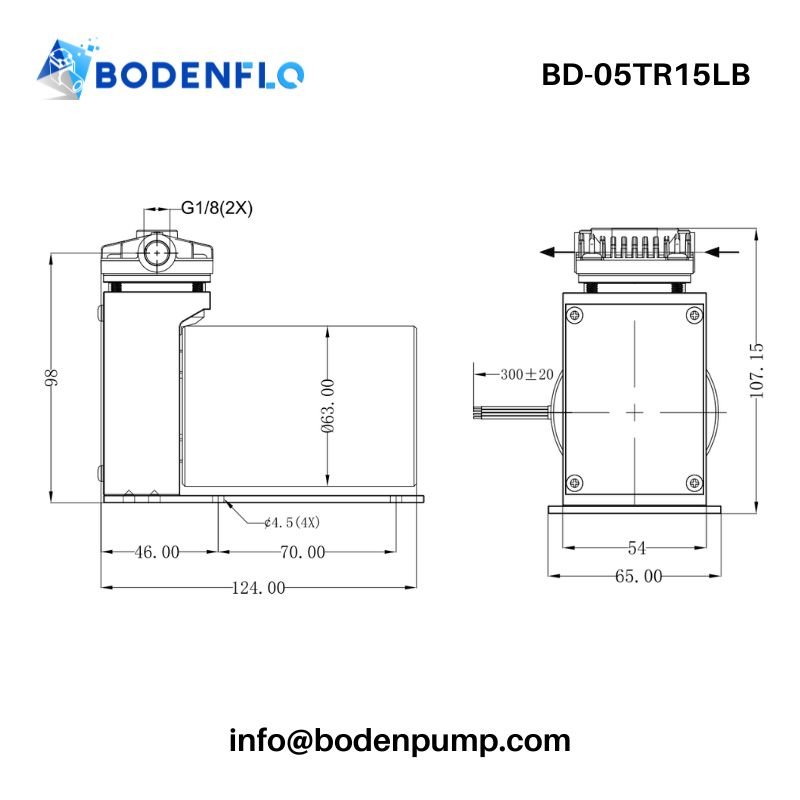

| Dimensions | 124 × 65 × 107 mm (4.88 × 2.56 × 4.21 in) |
| Weight | 1.6 kg (3.53 lb) |
| Operating Conditions | |
| Operating Ambient Temperature | -20°C to 60°C |
| Operating Medium Temperature | 5°C to 40°C |
The standard material configuration is designed for oil-free air compression and vacuum generation in compact OEM equipment. The aluminum alloy pump head provides mechanical strength and heat dissipation support, while the PTFE piston cup and FPM valve help improve sealing performance and gas compatibility.
| Component | Material / Feature |
| Pump Head | Aluminum Alloy |
| Piston Cup | PTFE |
| Valve | FPM |
| Operation | Oil-free, dry-running capable |
For neutral or mildly corrosive gases, the standard configuration can be evaluated first. If the target gas is chemically aggressive or the pump will be exposed to special media for long periods, material compatibility should be confirmed before sample testing.
If the standard version does not fully match your equipment design, BODENFLO can support selected customization items for OEM integration.
| Item | Customization Options |
|---|---|
| Motor Type | Brushed DC motor or brushless DC motor available |
| Wiring | Custom cable length and wire definition |
| Connector | Open leads, plug connectors, or OEM interface |
| Tubing Interface | Customized fittings or tubing connection support |
| Mounting | Custom bracket or installation structure support |
| Branding | Private label or customer-specific marking |
BODENFLO can also support project-level review of wiring, control signal, tubing connection, mounting position, and vibration control. This helps reduce integration risk when the pump is used in compact high-pressure pneumatic systems.
BD-05TR15LB is suitable for OEM applications that require high pressure, strong vacuum, and stable start-up under load. It is especially useful when engineers need a compact pump with stronger motor output than lower-power piston or diaphragm air pump options.
Developing a high-pressure mini compressor system requires more than selecting a pump with suitable pressure and flow specifications. Successful integration also depends on application engineering, reliable manufacturing, customization capability, and long-term supply stability. BODENFLO supports OEM customers throughout the entire project lifecycle—from initial design evaluation to mass production.
The following examples are based on typical OEM development projects and illustrate how customers evaluate the BD-05TR15LB swing piston compressor in demanding high-pressure and vacuum applications.
Germany | Dental Equipment Manufacturer
Application: Dental air supply system
Feedback:The higher motor power provided stable pressure during continuous operation, helping maintain consistent airflow for our dental equipment while reducing the need for a larger external compressor.
United States | Medical Device OEM
Application: Portable medical pneumatic module
Feedback: The compact structure, brushless motor, and reliable pressure performance made the compressor easy to integrate into our portable medical system, where long service life and stable operation were critical.
Australia | Industrial Automation Equipment Manufacturer
Application: High-pressure pneumatic control system
Feedback: The 84 W brushless motor delivered reliable start-up under load and stable pressure output, making it well suited for our industrial pneumatic module where higher starting torque and continuous operation were required.
Proper installation helps maintain stable pressure, vacuum performance, and service life during OEM integration.
Air Path and Sealing
Use sealed tubing and fittings to reduce pressure loss or vacuum leakage. If the inlet gas contains particles, dust, or liquid mist, add suitable filtration to protect the valve and piston structure.
Wiring and Control

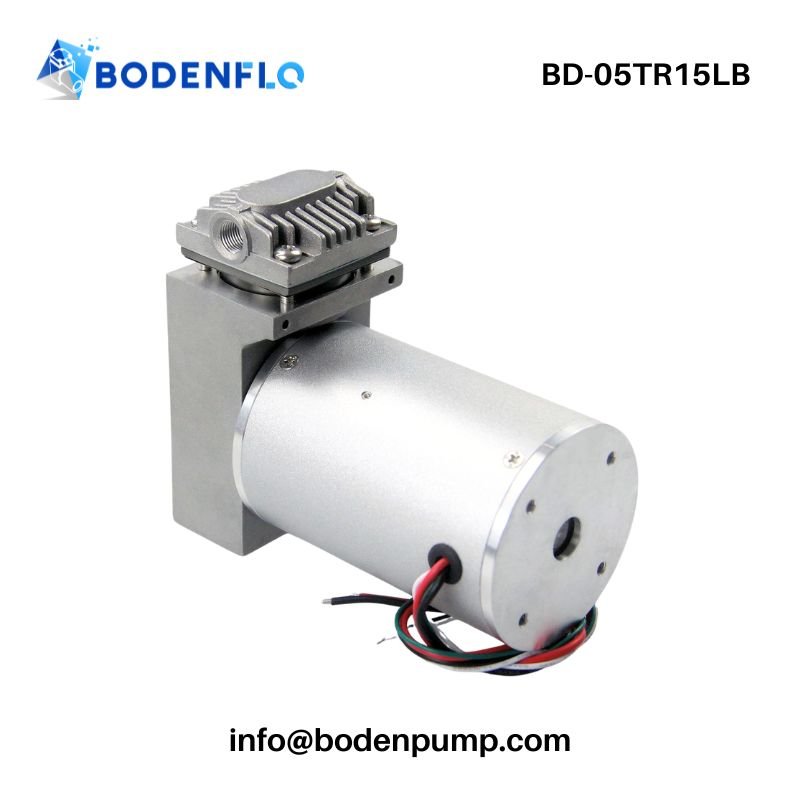

Red wire is DC power positive, black wire is DC power ground, white wire is speed control, and green wire is speed feedback. For full-speed operation, leave the white control wire unconnected.
Mounting and Operation
Fix the pump securely to reduce vibration and housing resonance. During continuous or high-load operation, keep enough space for heat dissipation and avoid blocked outlets or excessive system restriction.
Material and Operating Conditions
The standard configuration uses an aluminum alloy pump head, PTFE piston cup, and FPM valve. For corrosive or special gases, confirm material compatibility before sample testing. Operating ambient temperature is -20°C to 60°C, and operating medium temperature is 5°C to 40°C.
[BD-05TR15LB Swing Piston Compressor Datasheet (PDF)]
A brushless swing piston compressor combines high pressure, strong vacuum, and long service life with reduced maintenance. Compared with brushed compressor pumps, the brushless motor provides better efficiency, longer operating life, and more reliable performance for continuous OEM applications.
Yes. The BD-05TR15LB high-pressure micro pump features an 84 W brushless motor, providing stronger starting torque and improved load-handling capability. It is well suited for pneumatic systems with higher resistance or demanding start-up conditions.
This swing piston compressor is widely used in dental equipment, medical pneumatic systems, industrial automation, gas sampling devices, laboratory instruments, and other OEM applications requiring stable pressure, vacuum, and oil-free air compression.
Yes. The BD-05TR15LB brushless swing piston compressor is designed for long-term OEM operation. To achieve optimal performance and service life, ensure proper ventilation, secure mounting, and avoid prolonged operation with blocked outlets or excessive system restriction.
Both models deliver 15 L/min airflow, 7 bar pressure, and -90 kPa vacuum. The BD-05TR15LB uses an 84 W brushless DC motor, making it ideal for continuous operation and demanding start-up conditions. The BD-05TR15L uses a 65 W brushed DC motor, providing a more economical solution for applications with moderate duty cycles and lower load requirements.
Yes. If your project requires a lighter and more compact swing piston compressor, BODENFLO also offers the BD-08AB-S. This 24 V brushless swing piston compressor delivers up to 6-7 bar maximum pressure, 45 L/min maximum airflow, and -85 kPa maximum vacuum, while weighing only 690 g.
If you are developing compact compressors, gas sampling devices, medical pneumatic modules, analytical instruments, or high-pressure OEM air systems, BODENFLO can support model selection, customization, sample testing, and long-term supply.
