DC 24V BD-08A-S/BD-08V-S 45Lpm Small Air Compress Vacuum pump

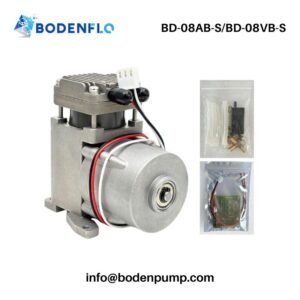

Model BD-08AB-S positive pressure pump and BD-08VB-S negative pressure pump products, consisting of long-life brushless motor and Aluminum alloy material pump body, the above parameters are the hottest selling ones, we also support customization of other parameters, please feel free to ask.

Additional information

Voltage

24V

Air Flow

20-45L/min

Pressure

4-6bar

Vacuum

-85kpa

Motor

brush/brushless

Diaphragm

EPDM/FKM

The Working Principle of the Reciprocating piston Air Compressor:

Under the drive of the electric motor, the piston in the cylinder makes a reciprocating linear movement through the action of the crank connecting rod tension.

Pumps Features:

The BD-08 series single head is a special miniature air compressor & air pump, the most important feature is the positive and negative use, ultra small size, high pressure & flow rate, mainly used for inflation, pressurisation, absorption and vacuum. More features of this air pump are listed below.

  • Piston construction design – compact structure
  • High torque brush motor – efficient and durable
  • Aluminium material – ultra light & high temperature resistant
  • 4 hole fixing – easy to operate & install
  • Flexible pump head – can be adjusted in 4 directions
  • FKM valve – enhanced life



Model: BD-08A-S/BD-08V-S

Performance parameter:

  • Max Pressure: 6 Bar(87psi)
  • Max Vacuum: -85 kpa(637mmHg)
  • Free Flow: 45L/min

Motor parameter

  • Motor Type: DC Brushless Motor
  • Rated Voltage: 24V DC
  • Rated Current: <3A
  • Noise:65-75dB
  • Duty Cycle:  Intermittent
  • Durable time: ≥1000hours

Another parameter

  • Inlet&outlet dimensions: ID4mm. OD:8mm
  • Dimension: 145 x 67.4 x 97 mm
  • Weight: 1kg
  • Material: Aluminum alloy
  • Valve: FKM

Model BD-08A-S positive pressure pump and BD-08V-S negative pressure pump products, consisting of long-life brush motor and Aluminum alloy material pump body, the above parameters are the hottest selling ones, we also support customization of other parameters, please feel free to ask.

Life Span:

The life span of these small air compressor depends mainly on the type of motor used. We offer both brushed and brushless motors, up to 5000 hours with premium DC brushless motors, and up to 1000 hours with brush motors.

With optional brushless DC motors, we also offer Pulse Width Modulation (PWM) option. This unique feature is ideal for applications that require precise control of pump output

Application Scope:

The BD-08A-S series air pumps feature ultra-small dimensions, flow rates up to 45 LPM, pressures up to 6 bar and vacuums up to 85 kpa, and are used in a wide range of applications, mainly in the automotive, medical and health care, energy saving and environmental protection, intelligent robotics and industrial automation equipment industries. Typical examples include.

  • Automotive brake booster systems
  • High-pressure spray booster
  • Rehabilitation and physiotherapy instruments
  • Outdoor gas detection
  • Pressure and vacuum industrial instruments, etc.
