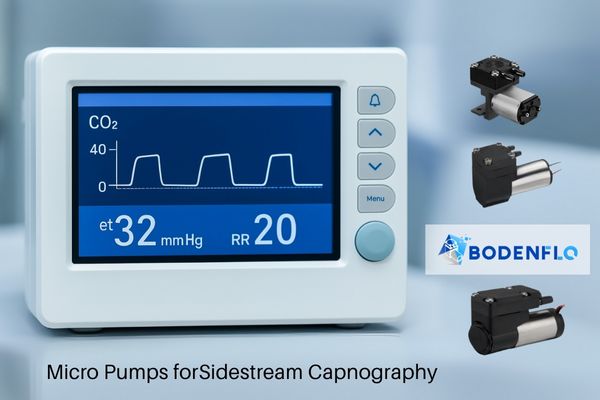

Why Use Micro Pumps for Sidestream Capnography?

Inaccurate CO₂ readings can hide life-threatening patient issues. Bulky, loud equipment makes monitoring difficult and stressful. There must be a better way to get this vital data reliably.

Micro diaphragm pumps are the ideal engine for sidestream capnography. They are small, quiet, and power-efficient, enabling them to draw a stable, precise sample of a patient's breath to a CO₂ sensor, ensuring accurate, real-time monitoring in any clinical setting.

This technology is at the core of modern patient safety. The pump's role seems simple—just move a little air—but getting it right is a serious engineering challenge. Let's explore how these tiny pumps make such a big impact on patient care.

What is sidestream capnography and why is it important?

In critical care, you need to know if a patient is breathing properly. Guessing isn't an option and waiting for signs of distress is too late. You need instant, continuous feedback.

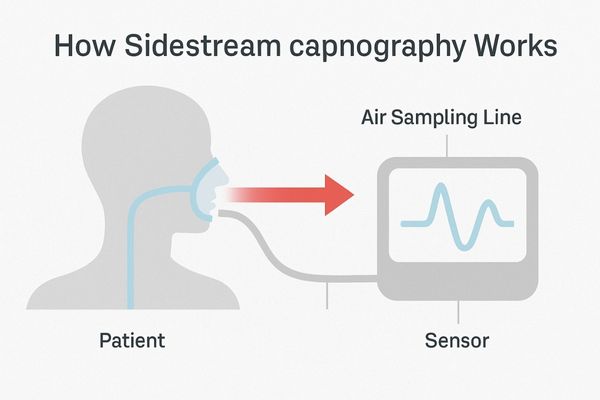

Sidestream capnography is a vital monitoring technique that continuously measures the concentration of carbon dioxide (CO₂) in a patient's exhaled breath. This provides immediate insight into their ventilation, circulation, and metabolism, making it essential for patient safety during anesthesia and in intensive care.

I've talked to many anesthesiologists, and they call the capnography waveform¹ the "shape of life." The principle is simple: a micro pump pulls a small sample of gas from the patient's breathing circuit through a thin tube.

This gas flows to a monitor containing a CO₂ sensor². The resulting measurement is displayed as a number and a continuous waveform. Its most critical use is confirming that a breathing tube³ is correctly placed in the trachea, not the esophagus—a mistake that can be fatal.

In the ICU, it helps doctors manage ventilators and detect changes in a patient's condition long before other vital signs would show a problem.

Value in Clinical Scenarios

How do micro pumps work in sidestream capnography?

The CO₂ sensor is inside the monitor, often several feet from the patient. How does the patient's breath get there instantly and without being corrupted? It feels like magic, but it’s precision engineering.

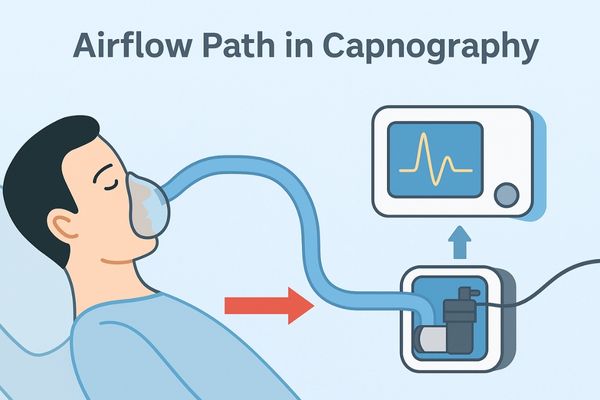

A micro pump acts as a tiny, consistent vacuum engine. It actively draws a small, constant stream of respiratory gas from the patient's airway, through a sampling line, and delivers it to the internal CO₂ sensor for analysis.

Think of it as a very long, very thin straw. The pump is at one end, and it creates a gentle but constant suction. This suction pulls air from the other end, which is connected to the patient's breathing mask or tube.

The path is typically: patient's airway → a narrow sampling tube → a water trap or filter (to protect the sensor) → the micro pump⁴ → the CO₂ sensor⁵ chamber. The pump's job is to overcome the resistance of this long, narrow path and deliver a perfectly smooth, stable flow of gas. If the flow pulsates or varies, the CO₂ reading will be erratic and useless. The pump is the heart that ensures a steady stream of data⁶.

Why choose eccentric diaphragm pumps for CO₂ sampling?

You need a pump for your monitor, but not just any pump will work. A noisy, bulky, or unstable pump will degrade the device's performance and make it unpleasant to use.

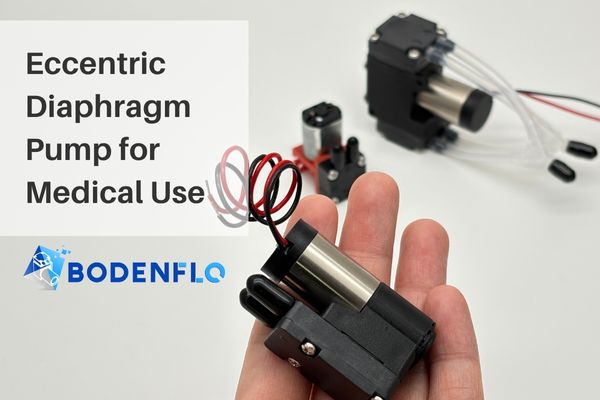

Eccentric diaphragm pumps are chosen because they deliver highly stable, non-pulsating flow, which is critical for accurate sensor readings. Their compact size, low power consumption, and quiet operation make them the perfect fit for sophisticated medical monitoring equipment.

When designing a medical device that will be at a patient's bedside, every detail matters. I've seen older capnography modules that used larger, noisier pumps, and the constant hum was a source of annoyance for both patients and staff.

The eccentric diaphragm design⁷ is inherently quieter. The motor spins an offset cam, which smoothly moves a flexible diaphragm up and down. This creates a gentle suction and pressure cycle. By using optimized chambers and multiple diaphragms, we can smooth out the flow until it's nearly pulse-free. This combination of stable flow, small size, and quiet performance⁸ is exactly what engineers need for building next-generation patient monitors⁹.

What advantages do micro diaphragm pumps offer?

Beyond the basic mechanics, what makes these pumps the gold standard? Device reliability, patient safety, and ease of use are major concerns. A good pump addresses all three.

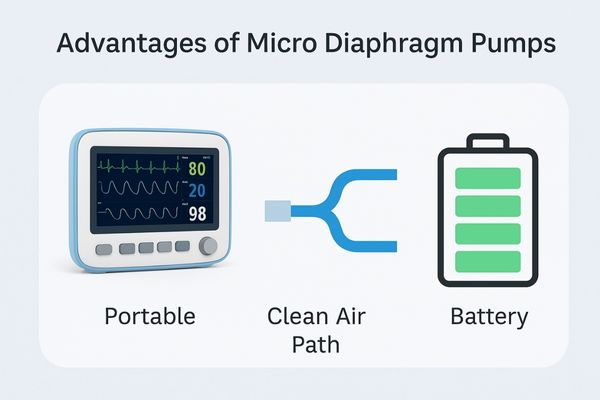

Micro diaphragm pumps offer precise, oil-free sampling, low power draw for battery operation, and a long, stable lifespan. This combination ensures accurate data, prevents sample contamination, and guarantees reliable performance in both portable and stationary medical devices.

These advantages are not just features; they are solutions to real-world engineering problems in the medical field. Let's break down why each one is so important for a device like a capnography monitor.

Key Advantages for Medical Devices

Which BODENFLO pumps are ideal for this application?

Choosing a specific pump model can be overwhelming. The wrong fit compromises your device's size or performance. We have models tailored for ultra-compact designs, flexible flow, or high performance.

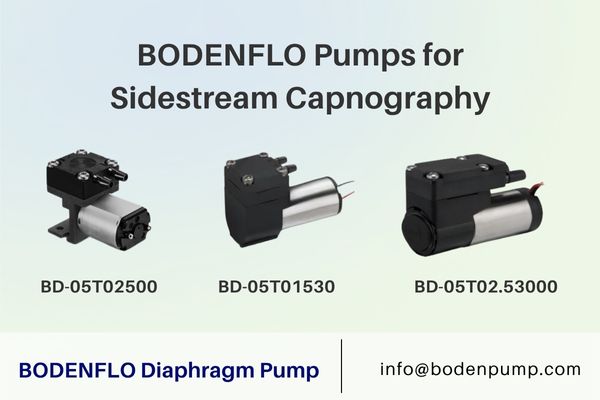

We recommend the BD-05T01530 for its tiny size and low power, the BD-05T02500 for its flexible flow options, or the coreless BD-05T02.53000 for high performance. These brushed motor pumps offer excellent solutions for portable capnography devices.

When an engineer asks me for a capnography pump, we review these top contenders based on their specific design priorities. The choice often comes down to a balance of size, power, and performance.

For Ultra-Compact, Low-Power Designs: BD-05T01530

If every millimeter and milliwatt counts, this is your pump. At only 14.2g and with a max power of 0.3W, it's designed for the most space-constrained and battery-sensitive portable devices.

For Flexible Flow Requirements: BD-05T02500

This model is a versatile workhorse. It offers a range of flow rates in a compact package, making it easy to adapt for different monitoring scenarios (e.g., adult vs. pediatric) without changing the pump's footprint.

For High Performance & Smooth Flow: BD-05T02.53000

When you need more power without a big size penalty, this is the answer. Its coreless motor provides high flow (3 L/min) and stronger vacuum, with smoother, quieter operation than standard brushed motors.

What should you consider when selecting a CO₂ sampling pump?

You have great options, but what specific numbers should you be looking for? Making the final decision requires matching your system's requirements to the pump's specifications with precision.

You must define your target flow rate, size constraints, noise limits, drive voltage, and required lifespan. Getting these five parameters right is the key to successfully integrating a pump into your capnography system.

I always give my clients this checklist before they make a final decision. It forces them to think through the entire system design. For example, a standard flow rate for adult capnography is around 100–200 mL/min, but neonatal applications might require less. Knowing this target flow rate is the most important first step.

Then, you must consider the physical space you have, the power you can supply, and how long the device is expected to last in the field. Answering these questions ensures you select a pump that doesn't just work, but works perfectly for your specific application.

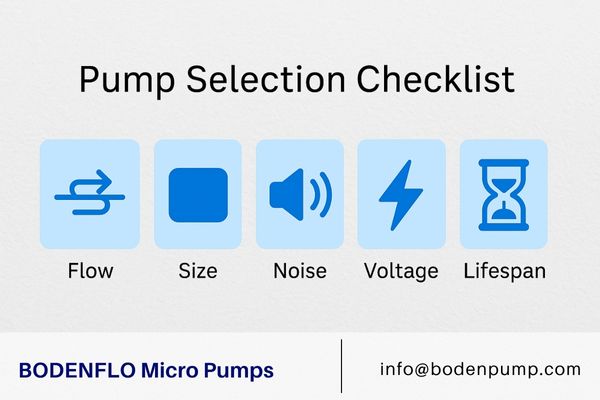

Your Capnography Pump Selection Checklist

Conclusion: The Right Pump Means More Reliable Patient Monitoring

Choosing the right micro pump is fundamental to building an accurate, reliable, and user-friendly sidestream capnography system. It ensures patient safety through dependable monitoring.

Looking to integrate a reliable micro diaphragm pump into your sidestream capnography system?
BODENFLO offers customizable, medical-grade micro pumps designed for compact, quiet, and accurate CO₂ sampling.
