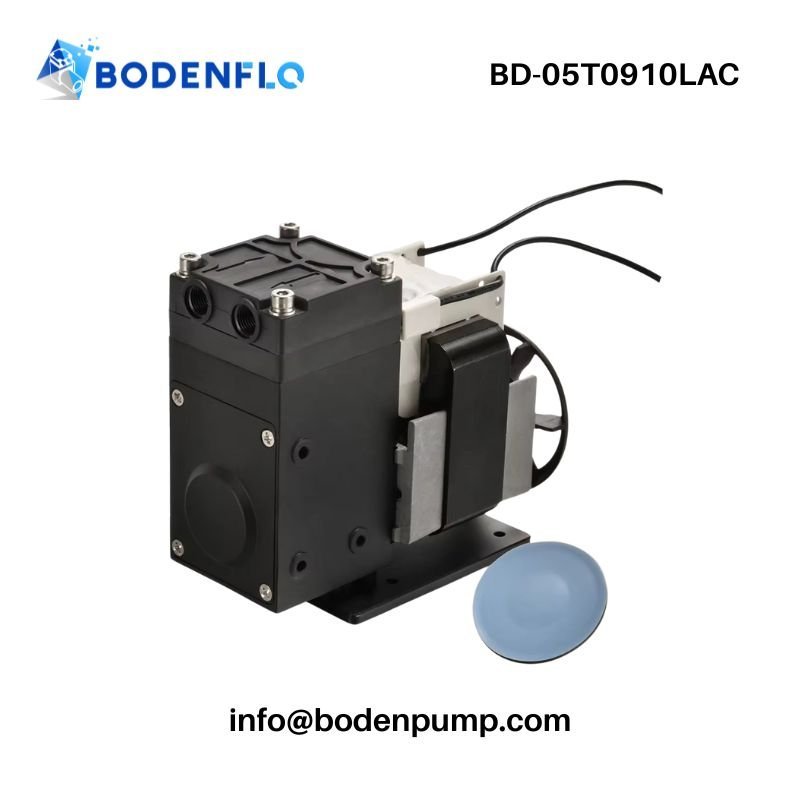

The BD-05T0910LAC is a compact AC-powered diaphragm pump designed for precise, oil-free airflow or vacuum. Ideal for VOC analyzers, CEMS, and other laboratory or industrial instruments, it delivers stable performance in continuous-duty applications.
| Voltage | 220V/ 50Hz |
|---|---|
| Max Flow | 10L/min |
| Max Vacuum | –80 kPa |
| Max Pressure | 1.9 Bar |
| Motor | 200-220 V/ 50Hz Shade-pole |
| Max Power | 60W |
| Weight | 1.32kg |
Miniature diaphragm pumps use an AC motor to drive a flexible diaphragm through a mechanical mechanism, creating clean, oil‑free airflow or vacuum for compact analytical devices.
The BODENFLO BD-05T0910LAC is a high-performance miniature diaphragm pump specifically designed for CEMS and VOC on-line gas sampling applications.

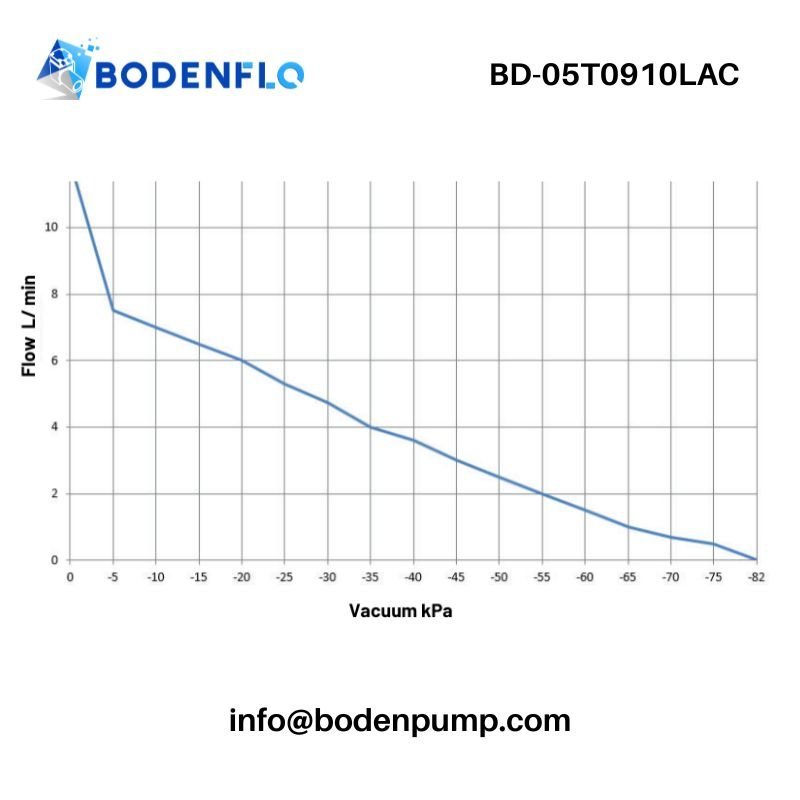

With a maximum flow of 10 L/min, vacuum of -80 kPa, and pressure up to 1.9 bar, this pump ensures stable, low-noise operation for long-term analytical measurements.
Engineers in environmental monitoring, laboratory analysis, and industrial automation choose the BD-05T0910LAC when reliability, low vibration, and efficiency are essential.
✓ Very quiet operation and low vibration due to balance-optimized design
✓ High-performance AC motor for long service life
✓ NMB ball bearing with >10,000 hours lifetime
✓ Excellent gas tightness for precise sampling
✓ Superior price-performance ratio for B2B applications
✓ PPS pump head and EPDM diaphragm/valves for chemical compatibility
✓ Maintenance-free, reliable continuous operation
| Parameter | Value |
|---|---|
| Model | BD-05T0910LAC |
| Voltage Range | 220V / 50Hz |
| Maximum Flow Rate | 10 L/min |
| Maximum Negative Pressure | –80 kPa |
| Maximum Positive Pressure | 1.9 bar |
| Motor Type | 200–220V / 50Hz Shade-pole AC motor |
| Max Power | 60 W |
| IP Rating | IP00 |
| Service Life | >10,000 hours |
| Storage Temperature | –40 ℃ ~ 60 ℃ |
| Operating Temperature | 0 ℃ ~ 45 ℃ |

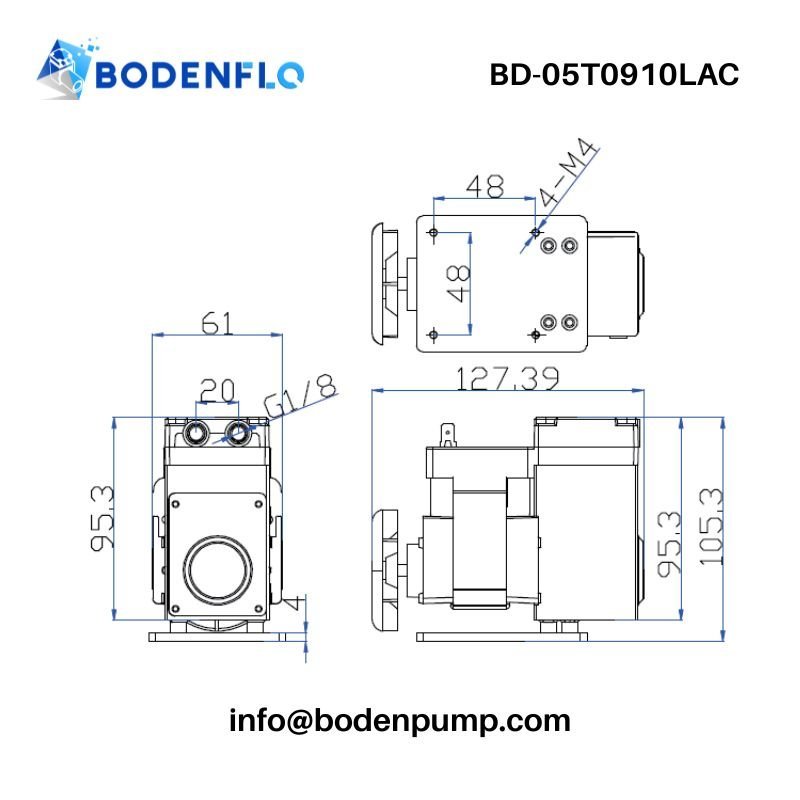

| Dimensions (L×W×H) | 127.6 × 61 × 105 mm |
| Weight | 1.32 kg |
| Component | Material / Performance |
|---|---|
| Pump Head | PPS (engineering thermoplastic) |
| Diaphragm / Valve | EPDM |
| Pump Body | Aluminium alloy – strong, durable, and corrosion-resistant |
| Lifetime (continuous duty) | >10,000 hours under normal operating conditions |
📌 CEMS / VOC On-line Analysis Instruments – Provides stable, low-pulsation, oil-free gas sampling for accurate readings in environmental monitoring.
📌 Portable and Handheld Environmental Monitors – Delivers precise, low-noise airflow for pollutant and gas detection instruments.
📌Laboratory Gas Sampling – Ensures clean, controlled airflow for lab-based VOC and multi-gas analysis.
📌 Automation and Industrial Systems – Supports compact vacuum or pressure functions in micro-automation setups.
| Customization Aspect | Available Options / Notes |
|---|---|
| Diaphragm Materials | EPDM standard (FKM optional) |
| Electrical Cable / Connector | Custom cable length and connector type for OEM integration |
| Label / Branding | Custom labeling for OEM projects |
| Pump Configuration | Single-head: BD-05T0910LAC (10 L/min, 220V AC, –80 kPa, 1.9 bar, 60 W) |
| Integration Support | Engineering guidance for compact analyzers |
Selecting a diaphragm pump supplier is not just about technical parameters—it’s about finding a strategic partner. At BODENFLO, we ensure your projects gain long-term value and competitive edge through:
Proven Expertise – 15+ years of dedicated R&D and manufacturing in miniature pumps, with 600+ models and customized OEM projects delivered worldwide.
Global Certifications – ISO9001, CE, and RoHS certified production, ensuring compliance and reliability across medical, analytical, and industrial applications.
OEM-Driven Customization – Flexible diaphragm and valve material options (EPDM, PTFE, FKM, FFKM), branded labeling, special cable/connector designs, and multi-head configurations.
Engineering Partnership – CAD/3D drawings, prototyping, and technical consultation provided to accelerate integration and reduce risks.
Trusted Worldwide – Recognized by OEMs in Europe, the US, Korea, and South America for consistent quality, cost-effectiveness, and reliability.
Practical Alternative – While leading EU, US, and Japanese brands are benchmarks in the market, BODENFLO provides a cost-effective, reliable substitute that helps OEMs balance performance with affordability.
“We replaced our previous pump with the BD-05T0910LAC in our VOC on-line analysis system. The low vibration and quiet operation improved lab comfort significantly.”
– Engineering Director, Germany“The AC sample pump runs continuously with very little maintenance. Its high gas tightness and long lifespan (>10,000 hours) make it ideal for our 24/7 monitoring setup.”
– Product Manager, USA“The BD-05T0910LAC allowed us to maintain compact instrument design while achieving stable airflow and high sampling accuracy.”
– R&D Manager, South Korea
For quick integration, the BD-05T0910LACL is designed with simple 2-wire connection:
Red wire: Connect to AC power positive (+)
Black wire: Connect to AC power negative (–)
This straightforward wiring makes it easy to integrate the pump into compact instruments without complex setup.
[BD-05T0910LAC 220V AC Sampling Pump Download Datasheet (PDF)]
Q: What are the advantages of AC sampling pumps compared to DC sampling pumps?
A: AC pumps typically offer longer service life under continuous duty, simpler power infrastructure (no need for DC converters), better performance stability over varying loads, and improved durability in fixed monitoring systems.
Q: What makes AC sampling pumps particularly suitable for 220V applications?
A: In 220V AC environments, these pumps can be directly connected without needing inverters or DC power supplies, which simplifies system design, reduces cost, and improves reliability.
Q: Are there more 220V AC sampling pump models you can recommend?
A: Yes. Two additional models to consider:
BD-05T0610ACM High Temperature 220V Gas Diaphragm Pump — 6L/min, suited for medium temperatures up to ~200 ℃.
BD-05T0610AC 220V AC Gas Diaphragm Sampling Pump — 7.5L/min, for general gas sampling and CEMS with stable performance.
Q: How long does the diaphragm pump last?
A: The high-performance AC motor with NMB ball bearings ensures a typical service life of over 10,000 hours under normal operating conditions.
Q: Is it oil-free?
A: Yes. The pump is fully oil-free, offering contamination-free airflow suitable for precise gas sampling.
