Diaphragm Water Pump 650mL/min 5 Bar PWM Liquid Vacuum Pump BD-05TF650WBD BODENFLO

The BD-05TF650WBD is a compact liquid vacuum pump designed for OEM fluid handling systems, combining up to 5 bar liquid pressure, brushless motor efficiency, and PWM speed control for applications requiring precise flow management and flexible gas-liquid transfer capability.

Additional information

Voltage

12 V / 24 V DC
Max Flow

650 ± 100 mL/min (water), 0.8 L/min (gas)
Max Vacuum

–28 kPa
Max Pressure

5 bar max, recommended within 3 bar (water), 45 kPa (gas)
Motor

DC Brushless Motor
Load Current

0.8A/0.4A
Weight

290 g
Ask for quote
Contents hide
1 Overview of BD-05TF650WBD Diaphragm Water Pump
2 Key Features of BD-05TF650WBD BLDC Diaphragm Pump
3 Technical Specifications of BD-05TF650WBD Micro Gas Liquid Pump
4 Standard Materials & Reliability
5 OEM Customization Options
6 Typical Applications of BD-05TF650WBD Liquid Vacuum Pump
7 Why Choose BODENFLO for Your OEM Pump Project
8 Customer Feedback from OEM Applications
9 Installation & Usage Notes
10 Downloads – Datasheet
11 FAQ – BD-05TF650WBD Diaphragm Water Pump
12 Contact BODENFLO – OEM High-Pressure Liquid Pump Solutions

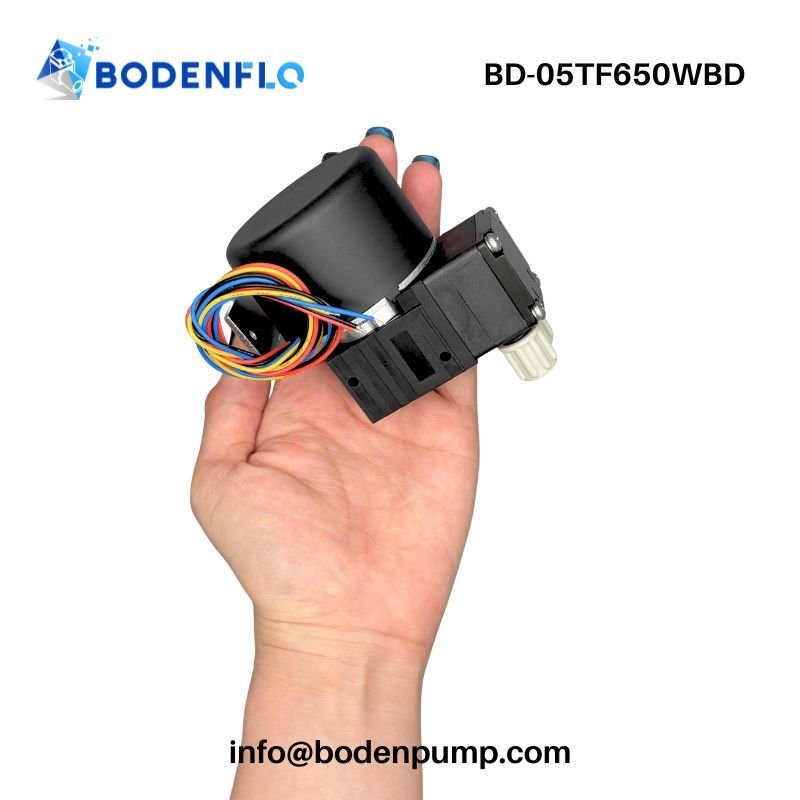

Overview of BD-05TF650WBD Diaphragm Water Pump

The BD-05TF650WBD is a small liquid pump built with a diaphragm pumping mechanism and a brushless DC motor, designed for inkjet systems, analytical equipment, and OEM fluid handling platforms. Its gas-liquid compatible design allows a single pump platform to support multiple transfer functions within compact equipment architectures.

For applications requiring higher liquid pressure and electronic flow adjustment, this liquid vacuum pump combines PWM speed control with up to 5 bar water pressure capability. From an OEM integration perspective, it is well suited for systems where installation space, fluid control accuracy, and long service life are important selection considerations.

Key Features of BD-05TF650WBD BLDC Diaphragm Pump

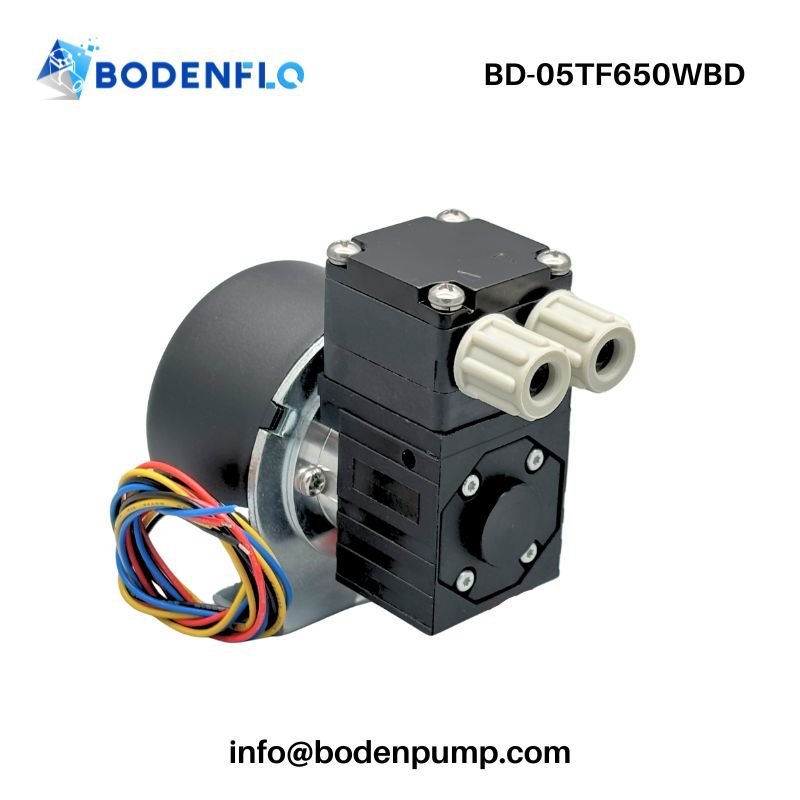

  • 5 Bar Liquid Pressure Capability – Supports applications that require higher discharge pressure without adding external boosting devices.

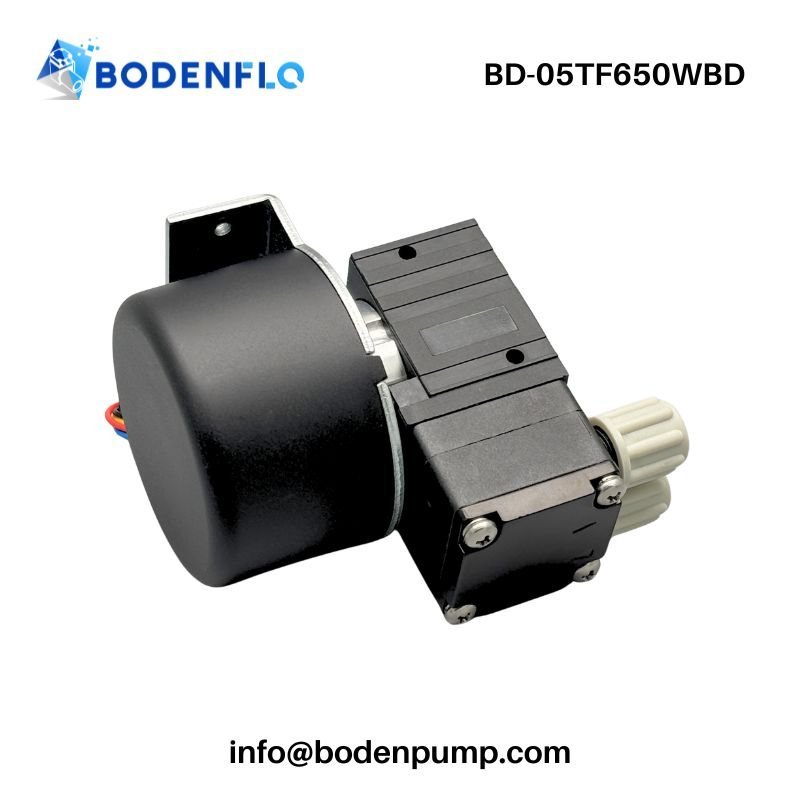

  • Brushless DC Motor – Reduces maintenance requirements and improves efficiency in long-duration OEM equipment.
  • PWM Speed Control – Allows flow output to be adjusted according to system demand and operating conditions.
  • Gas-Liquid Compatible Design – Enables one pump platform to handle both fluid transfer and low-flow gas movement tasks.
  • Self-Priming Operation – Simplifies system startup and helps maintain installation flexibility.
  • Dry-Running Capability – Provides additional protection during intermittent operation or temporary fluid interruption.
  • PPS Pump Head – Supports applications requiring improved chemical resistance and broader media compatibility.

Technical Specifications of BD-05TF650WBD Micro Gas Liquid Pump

The specifications below are organized to help you assess how BD-05TF650WBD will perform in your equipment.
Check flow, pressure, vacuum level, operating limits, and overall size to confirm technical compatibility before sample evaluation.

Basic Information
Model BD-05TF650WBD
Type Micro Gas Liquid Pump
Structure Diaphragm Pump
Voltage Range 12 V / 24 V
Liquid Performance
Free Water Flow 650 ± 100 mL/min (0.172 ± 0.026 gpm)
Max Water Pressure 5 bar max, (Suggested for use within 3 bar)(72.5 psi max / 5000 mbar / 0.5 MPa)
Water Pressure Head >12 m
Water Suction Head 4 m
Gas Performance
Free Gas Flow 0.8 L/min (0.028 cfm)
Max Gas Pressure +45 kPa (6.5 psi / 450 mbar)
Max Gas Vacuum -28 kPa (-8.3 in.Hg / -280 mbar / -210 mmHg)
Electrical & Motor Data
Motor Type DC Brushless Motor
Load Current 0.8 A / 0.4 A
Noise 55 dB
Lifetime 10000 h
Mechanical Data

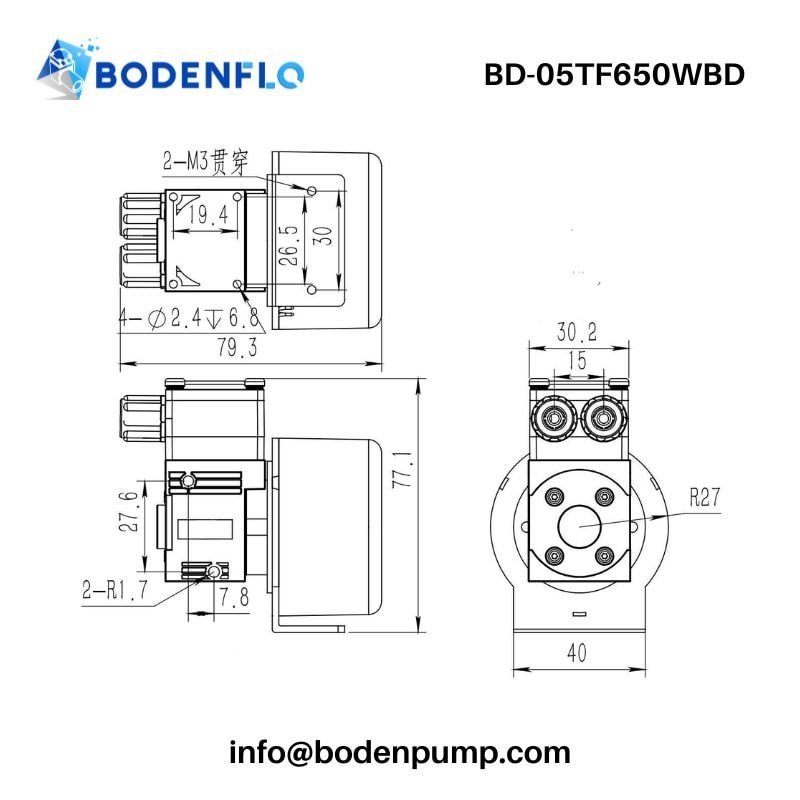

Dimensions 79 × R27 × 77 mm (3.11 × R1.06 × 3.03 in)
Weight 290 g

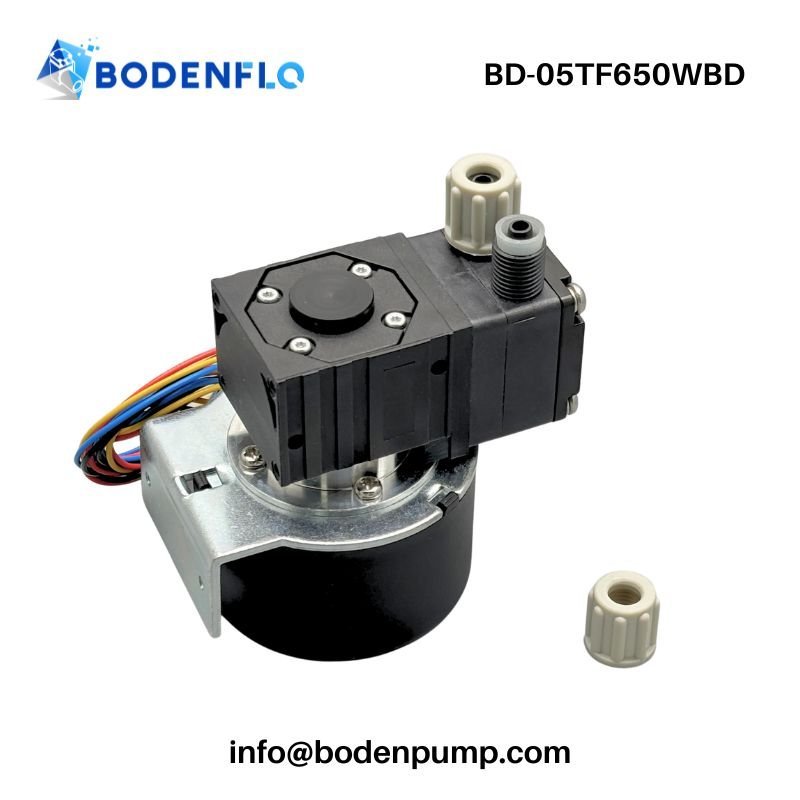

Recommended Tubing Size ID4 mm / OD6 mm
Operating Conditions
Ambient Temperature 5°C to 40°C
Fluid Temperature 10°C to 60°C

Testing Conditions & Measurement Standards

Water Flow Measurement:
Water flow is measured using a high-precision miniature electromagnetic flowmeter (electromagnetic induction volumetric flowmeter).
The test setup includes approximately 1 m inlet and outlet tubing to simulate practical installation conditions.

Noise Measurement:
Noise is measured at a distance of 1 m from the pump during normal operation under standard working conditions.

Lifetime Testing:
Lifetime is evaluated under continuous 24-hour no-load operation, with both inlet and outlet open to atmosphere (ambient pressure conditions).

Standard Materials & Reliability

For most OEM applications, the standard material configuration provides a practical balance of compatibility, durability, and stable performance.

Component Material / Feature
Pump Head PPS
Diaphragm EPDM
Valve EPDM

If your application involves more aggressive media or stricter durability requirements, upgraded material options can be considered. Optional configurations such as a PTFE diaphragm and FFKM valves are available for applications involving corrosive gases, chemical reagents, or enhanced chemical resistance requirements.

OEM Customization Options

If your system requires specific electrical configurations, material compatibility, or installation interfaces, selected items can be customized to better match your application.

Item Customization Options
Voltage 12 V / 24 V options; project-based adjustment available
Motor Type Brushless DC motor with duty-cycle tuning support
Materials PPS, EPDM, PTFE, or FFKM options for media compatibility
Wiring Custom cable length and wire definition
Connector Open leads, plug connectors, or OEM interface
Tubing ID4 mm / OD6 mm standard; custom tubing available
Branding Private label or customer-specific marking
Mounting M3 base mounting or custom bracket support
Control Signal 0–5 V PWM speed control and FG output
Pressure / Flow Tuning Adjusted according to application requirements

BODENFLO can also pre-configure connectors, tubing, and mounting structures with the pump.
This helps reduce assembly work and makes OEM system integration more efficient.

Typical Applications of BD-05TF650WBD Liquid Vacuum Pump

If your application requires controlled micro-liquid transfer, the following examples can help you evaluate whether this model is a suitable fit.

  • CIJ Printer Ink Supply – This pump supports ink circulation and pressure-assisted liquid feeding inside continuous inkjet printer systems.
  • Digital Printing Equipment – It provides controlled liquid transfer for ink delivery, cleaning fluid movement, or maintenance fluid circuits.
  • Biochemical Analyzers – This pump moves reagents or samples through compact analytical fluid paths with brushless motor control.
  • Microplate Washing Equipment – It supports liquid dispensing and waste fluid removal during automated washing cycles.
  • Chemical Analysis Systems – This pump transfers test liquids or reagents where chemical resistance and controlled flow are required.
  • Cleaning & Disinfection Devices – It can move cleaning liquid through compact spray, flushing, or circulation modules.

Why Choose BODENFLO for Your OEM Pump Project

In many OEM projects, the challenge is not only finding a pump with suitable parameters, but also reducing selection, integration, and long-term supply risk. BODENFLO supports customers with pump selection, customization, testing support, and flexible OEM cooperation.

  • Application-oriented pump selection support
    We help review flow, pressure, voltage, medium, and installation requirements so the pump choice is based on actual working conditions.
  • Material solutions for demanding media
    For chemical liquids or corrosive gases, we can suggest wetted materials such as PPS, PTFE, and FFKM to improve compatibility.
  • Integrated solutions for easier installation
    Connectors, tubing, and mounting brackets can be pre-configured to reduce assembly work and simplify OEM integration.
  • Economical alternative to well-known pump brands
    For cost-sensitive OEM projects, BODENFLO can provide a more flexible pump solution while still supporting customization and project-level communication.
  • Support from sample evaluation to production
    We assist with early testing, configuration confirmation, and long-term supply planning to help customers move from prototype to batch production.

Customer Feedback from OEM Applications

Real application feedback helps potential buyers better understand how BD-05TF650WBD performs beyond the datasheet.

Finland | Printing System Developer
Application: CIJ printer ink supply system
Feedback: The pump matched our pressure requirement and integrated smoothly with PWM control in our ink circulation module.

Germany | Laboratory Equipment Engineer
Application: Biochemical analyzer fluid handling system
Feedback: The brushless design and compact structure made it suitable for long-cycle reagent transfer in our analyzer platform.

South Korea | Fluid System Engineer
Application: Chemical analysis equipment
Feedback: The PPS pump head and optional upgraded wetted materials helped us evaluate compatibility with more demanding liquids.

Installation & Usage Notes

Proper installation helps ensure consistent performance and extended service life in OEM fluid handling equipment.

Inlet Filtration
Install a ≤30 μm filter at the pump inlet to prevent particle ingress and protect internal pump components.

Bottom Mounting

  • 2 × M3 threaded mounting holes on the pump base
  • Recommended for secure installation and vibration reduction
  • Suitable for direct attachment to equipment frames or mounting plates

Wiring Definition

  • Red Wire (+): Power Positive
  • Black Wire (–): Power Negative
  • Blue Wire: 0–5 V PWM Speed Control Input
  • Yellow Wire: FG Signal Output (Speed Feedback)

Downloads – Datasheet

[BD-05TF650WBD Small Liquid Pump Datasheet (PDF)]

FAQ – BD-05TF650WBD Diaphragm Water Pump

Q1: Why is the pressure of my diaphragm water pump lower than expected?

Lower pressure is usually caused by leakage, air trapped in the fluid path, clogged filters, or excessive backflow. Although the BD-05TF650WBD diaphragm water pump can deliver up to 5 bar maximum pressure, BODENFLO recommends operating within 3 bar for continuous use to achieve better reliability and longer service life.

Q2: Can this liquid vacuum pump transfer both liquid and gas?

Yes. The BD-05TF650WBD liquid vacuum pump features a gas-liquid compatible diaphragm design. In addition to transferring liquids, it provides 0.8 L/min gas flow, 45 kPa positive pressure, and -28 kPa vacuum for compact OEM pneumatic applications.

Q3: Does this diaphragm water pump support PWM speed control?

Yes. The BD-05TF650WBD diaphragm water pump supports 0–5 V PWM speed control, allowing engineers to adjust pump speed and liquid flow according to different operating conditions and system requirements.

Q4: What is the lead time for BD-05TF650WBD diaphragm liquid pumps?

Sample lead time is typically 3–5 days. For bulk orders, production lead time is usually 20–30 days, depending on order quantity and customization requirements.

Q5: Which liquid pump should I choose for higher pressure or higher flow?

If your application requires higher liquid pressure, the BD-05TF400WB is the recommended choice, providing up to 6 bar water pressure. If your system requires higher liquid flow instead, BODENFLO also offers the BD-05TF800WBD, which delivers up to 800 mL/min water flow for high-flow liquid transfer applications.

Contact BODENFLO – OEM High-Pressure Liquid Pump Solutions

If you are developing CIJ printer systems, analytical instruments, or OEM equipment that requires higher liquid pressure and brushless pump control, BODENFLO provides liquid diaphragm pump solutions designed to simplify integration and support long-term product development.

What We Can Provide

  • Pump selection support based on flow, pressure, vacuum, and installation requirements
  • Material recommendations for chemical compatibility and media-specific applications
  • OEM customization of voltage, PWM control, wiring, connectors, and tubing interfaces
  • Engineering support for system integration, testing, and prototype validation
  • Fast sample delivery for design evaluation and performance verification
  • Stable manufacturing capacity for long-term OEM and private-label projects
