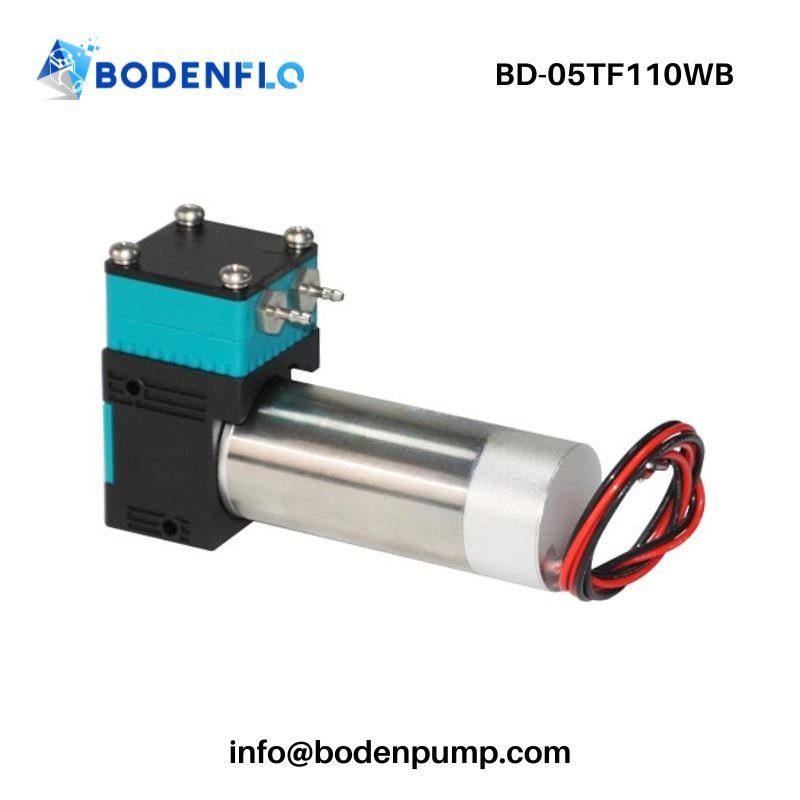

The BD-05TF110WB small liquid pump is a brushless diaphragm pump designed for OEM inkjet and analyzer fluid transfer systems, delivering 110 mL/min controlled micro-flow, oil-free self-priming operation, and extended motor lifetime, making it suitable for engineering teams prioritizing long-duty performance and reduced maintenance cost.
| Voltage | 6 V / 12 V / 24 V DC |
|---|---|
| Max Flow | 110 mL/min (water), 3 L/min (gas) |
| Max Vacuum | –60 kPa |
| Max Pressure | 2.5 bar (water), 1 bar (gas) |
| Motor | DC Brushless Motor |
| Max Power | 5 W |
| Weight | 240 g |

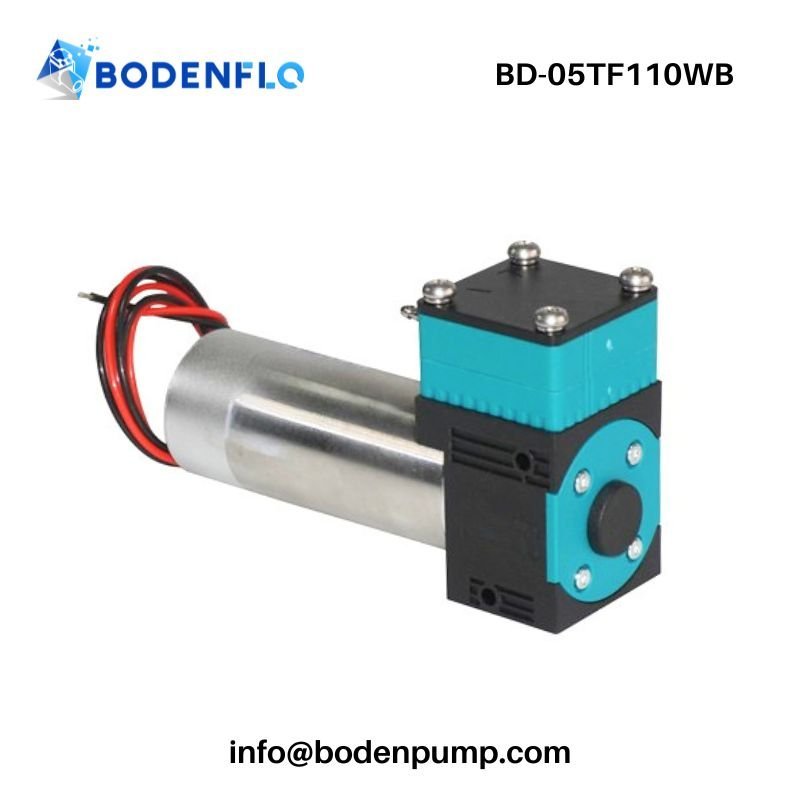

The BD-05TF110WB is a small liquid pump engineered for OEM inkjet systems, analytical instruments, and compact fluid dosing modules that require precise micro-flow control and long service life. Its diaphragm pumping structure ensures oil-free fluid handling and supports stable self-priming performance in compact pipeline layouts.
Equipped with a brushless DC motor, this model is optimized for customers seeking reduced wear, longer continuous-duty operation, and lower maintenance frequency. It is particularly suitable for OEM engineers evaluating total lifecycle cost in integrated fluid systems.
| Basic Information | |
| Model | BD-05TF110WB |
| Type | Small Liquid Pump |
| Structure | Diaphragm Pump |
| Voltage Range | 6 V / 12 V / 24 V DC |
| Liquid Performance | |
| Free Water Flow | 110 mL/min (0.029 gpm) |
| Max Water Pressure | 2.5 bar (36.3 psi / 2500 mbar / 0.25 MPa) |
| Water Pressure Head | >15 m |
| Water Suction Head | 7 m |
| Gas Performance | |
| Free Gas Flow | 3 L/min (0.106 cfm) |
| Max Gas Pressure | 1 bar (14.5 psi / 1000 mbar / 0.1 MPa) |
| Max Gas Vacuum | -60 kPa (-17.7 in.Hg / -600 mbar / -450 mmHg) |
| Electrical & Motor Data | |
| Motor Type | DC Brushless Motor |
| Max Power | 5 W |
| Noise | 55 dB |
| Lifetime | 10000 h |
| Mechanical Data | |

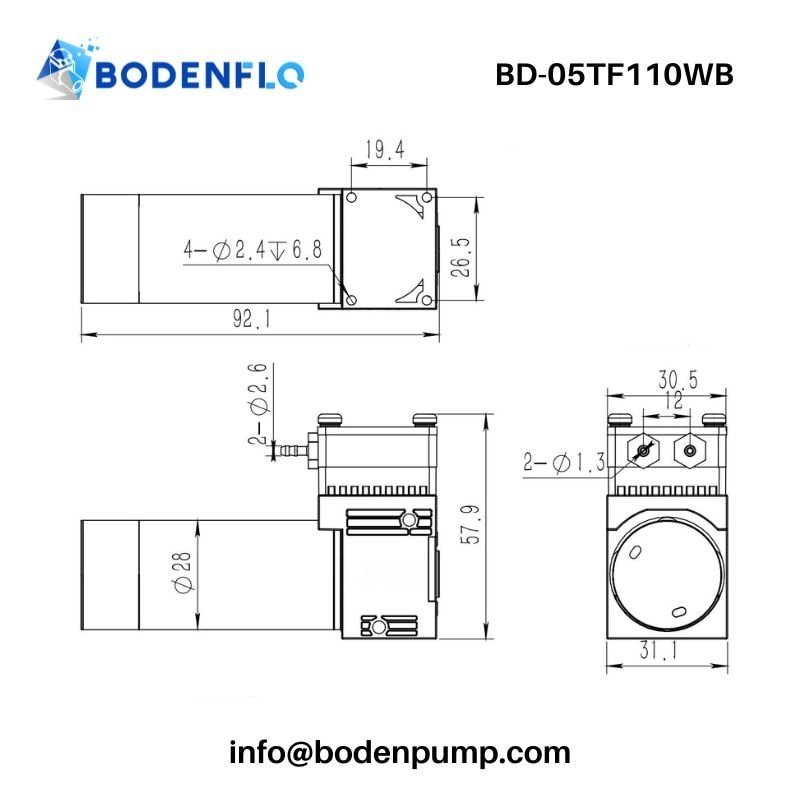

| Dimensions | 92.1 × 30.5 × 57.9 mm (3.36 × 1.20 × 2.28 in) |
| Weight | 240 g (0.53 lb) |
| Recommended Tubing Size | ID 1.5 mm / OD 3 mm |
| Operating Conditions | |
| Ambient Temperature | 5°C to 40°C |
| Fluid Temperature | 10°C to 60°C |
Water Flow Measurement:
Water flow is measured using a high-precision miniature electromagnetic flowmeter (electromagnetic induction volumetric flowmeter).
The test setup includes approximately 1 m inlet and outlet tubing to simulate practical installation conditions.
Noise Measurement:
Noise is measured at a distance of 1 m from the pump during normal operation under standard working conditions.
Lifetime Testing:
Lifetime is evaluated under continuous 24-hour no-load operation, with both inlet and outlet open to atmosphere (ambient pressure conditions).
The standard configuration is designed to balance chemical compatibility, stable operation, and long service life in typical OEM applications.
| Component | Material / Feature |
| Pump Head | PA66 engineering plastic |
| Diaphragm | EPDM |
| Valve | EPDM |
For chemical or high-demand applications, upgraded materials such as PPS, PTFE, and FFPM are available for OEM customization.
For customers developing specialized equipment, BODENFLO supports flexible OEM customization.
| Customization Item | Available Options |
| Voltage | 6V / 12V / 24V |
| Motor Type | Option Brush |
| Materials | PPS head / PTFE diaphragm / FFPM valve |
| Wiring | Custom cable harness |
| Connector | Application-specific connector |
| Branding | OEM label / private logo |
We can integrate connectors, tubing, and mounting structures directly into the pump based on your design requirements.
This reduces sourcing complexity and makes installation faster and more consistent.
Provides stable ink circulation and supports consistent droplet delivery in industrial printing platforms.
Used for controlled reagent transfer, sampling, and micro-fluid handling modules.
Supports compact integrated devices requiring stable micro-flow and long-term continuous operation.
Suitable for dosing, washing, and precision liquid routing in automated equipment.
From the customer’s perspective, selecting a pump is not only about flow rate — it is about reliability, lifespan, maintenance cost, and supply continuity.
The brushless motor significantly extends operational life, making it more suitable for continuous-use devices.
Less frequent pump replacement helps reduce service downtime and field maintenance expenses.
Stable low-pulsation flow improves ink delivery consistency, especially in high-resolution digital printing.
Flexible voltage, connectors, tubing, and bracket customization support faster engineering integration.
BODENFLO supports stable production for ongoing OEM projects and batch supply.
Germany | Wide-Format Printing Equipment Manufacturer
Application: Continuous ink circulation module
Feedback: Brushless structure significantly improved long-term operation stability and reduced maintenance cycles.
United States | Laboratory Equipment Integrator
Application: Automated reagent dispensing system
Feedback: Compact design and smooth flow control made integration straightforward for our OEM platform.
Japan | Industrial Ink System Developer
Application: Ink transfer module
Feedback: Consistent performance during long operating cycles, suitable for continuous-duty printing systems.
Wiring Definition:
[BD-05TF100WB Micro Liquid Pump Specification (PDF)]
The brushless motor significantly extends lifetime (up to 10000 h) and reduces maintenance, making it suitable for continuous-duty OEM systems.
Yes. Stable 110 mL/min flow and low pulsation support consistent ink delivery during long operating cycles.
It is suitable for clean liquids such as ink and reagents. For corrosive media, PPS, PTFE, and FFPM material options are available.
Yes. The brushless version supports 0–5V control and FG signal output, enabling speed regulation and system monitoring.
Yes. Voltage, materials, wiring, connectors, and mounting can be customized to match your system design.
You can contact BODENFLO directly for sample evaluation or bulk orders. We support flexible quantities for prototyping and provide technical assistance during selection and integration.
If you are developing digital printing systems, analytical instruments, or automated liquid handling equipment, BODENFLO provides reliable micro pump solutions tailored for OEM integration.
What We Can Provide
