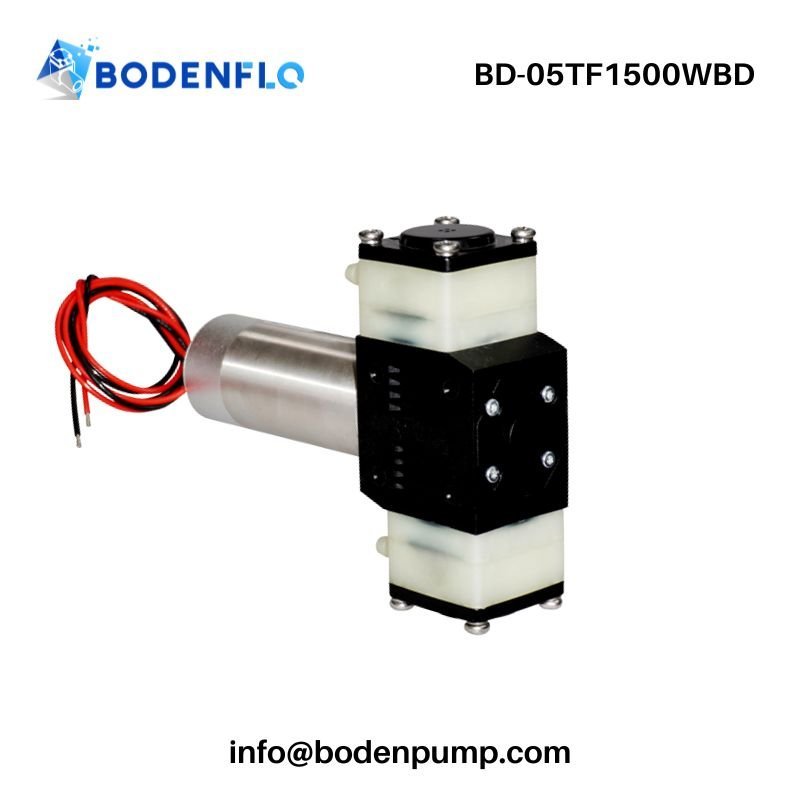

Micro Diaphragm Gas-Liquid Pump 1500mL Double Head Diaphragm Membrane Pump Low Pulse BD-05TF1500WBD BODENFLO

Overview of BD-05TF1500WBD Micro Diaphragm Gas-Liquid Pump

The BD-05TF1500WBD is a dual-head small liquid pump designed for OEM systems that require higher total flow within a compact structure. Built with a diaphragm pumping mechanism and a brushless DC motor, it is suitable for analytical equipment, automated liquid handling systems, and gas-liquid transfer platforms.

With 750 mL/min × 2 water flow and 3.5 L/min × 2 gas flow, this model is suitable when one pump needs to support two parallel transfer paths or higher overall circulation capacity. From an OEM selection perspective, it helps reduce component count while keeping liquid and gas transfer functions within one integrated pump design.

Key Features of BD-05TF1500WBD Diaphragm Membrane Pump

• Dual-Head Flow Structure – Supports two liquid or gas transfer channels within one compact pump assembly.
• 1500 mL/min Total Water Flow – Provides higher transfer capacity for circulation, dispensing, or liquid handling systems.
• Low-Pulse Transfer Design – Helps reduce flow fluctuation compared with single-output configurations in selected system layouts.
• Brushless DC Motor – Helps reduce maintenance demand in long-cycle OEM equipment.
• Gas-Liquid Compatible Design – Allows engineers to manage liquid transfer and gas movement with one pump platform.
• Self-Priming Capability – Supports easier startup in fluid systems with suction requirements.
• Compact Dual-Output Layout – Helps save installation space compared with using two separate pumps.

Technical Specifications of BD-05TF1500WBD Double Head Liquid Pump

The specifications below are organized to help you evaluate whether BD-05TF1500WBD fits your system requirements.
Focus on total flow, pressure, suction height, power demand, tubing size, and installation space before sample evaluation.

Basic Information
Model	BD-05TF1500WBD
Type	Double Head Liquid Pump
Structure	Dual-Head Diaphragm Pump
Voltage Range	12 V / 24 V
Liquid Performance
Free Water Flow	750 mL/min × 2 (0.198 gpm × 2)
Max Water Pressure	2.5 bar × 2 (36.3 psi × 2 / 2500 mbar / 0.25 MPa)
Water Pressure Head	>15 m
Water Suction Head	6 m
Gas Performance
Free Gas Flow	3.5 L/min × 2 (0.124 cfm × 2)
Max Gas Pressure	80 kPa (11.6 psi / 800 mbar)
Max Gas Vacuum	-50 kPa (-14.8 in.Hg / -500 mbar / -375 mmHg)
Electrical & Motor Data
Motor Type	DC Brushless Motor
Max Power	15 W
Noise	55 dB
Lifetime	10000 h
Mechanical Data

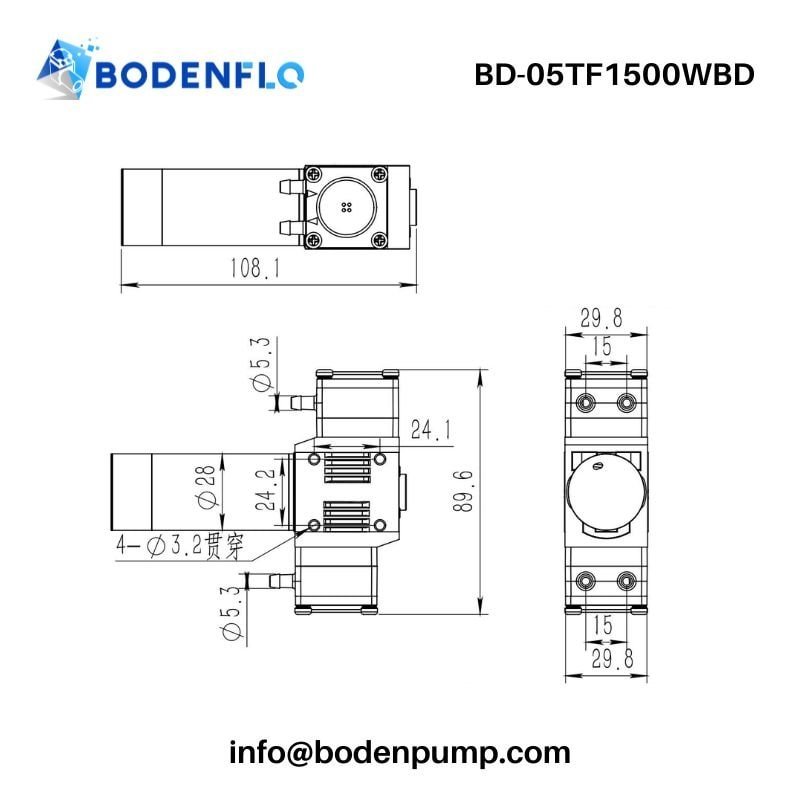

Dimensions	108 × 29.8 × 89.6 mm (4.25 × 1.17 × 3.53 in)
Weight	280 g
Recommended Tubing Size	ID6 mm / OD8 mm
Operating Conditions
Ambient Temperature	5°C to 40°C
Fluid Temperature	5°C to 60°C

Testing Conditions & Measurement Standards

Water Flow Measurement:
Water flow is measured using a high-precision miniature electromagnetic flowmeter (electromagnetic induction volumetric flowmeter).
The test setup includes approximately 1 m inlet and outlet tubing to simulate practical installation conditions.

Noise Measurement:
Noise is measured at a distance of 1 m from the pump during normal operation under standard working conditions.

Lifetime Testing:
Lifetime is evaluated under continuous 24-hour no-load operation, with both inlet and outlet open to atmosphere (ambient pressure conditions).

Standard Materials & Reliability

For most OEM applications, the standard material configuration provides a practical balance of compatibility, sealing performance, and service life.

Component	Material / Feature
Pump Head	PA66
Diaphragm	EPDM
Valve	EPDM
Wetted Materials	PA + EPDM + EPDM

If the standard configuration does not fully match your medium or service life target, additional material options are available for evaluation. Optional configurations such as PTFE diaphragms and FFKM valves can be considered for more demanding chemical compatibility needs.

OEM Customization Options

When the standard version does not fully match your system requirements, key components can be adjusted for better compatibility.

Item	Customization Options
Voltage	12 V / 24 V options; project-based adjustment available
Materials	PA66, EPDM, PTFE, or FFKM options
Wiring	Custom cable length and wire definition
Connector	Open leads, plug connectors, or OEM interface
Branding	Private label or customer-specific marking
Mounting	Bottom mounting structure or custom bracket support

Integrated solutions such as connectors, tubing, and mounting structures can be pre-configured with the pump to match your system layout.
This helps reduce assembly work and makes dual-head pump integration more efficient during OEM development.

Typical Applications of BD-05TF1500WBD Liquid Diaphragm Pump

If your application requires higher total transfer capacity or two fluid paths, the following examples can help you evaluate whether this model is a suitable fit.

• Digital Printing Equipment – It can provide dual-channel ink circulation or cleaning fluid transfer within printing platforms.
• Biochemical Analyzers – This pump moves reagents or waste liquid through parallel analytical fluid paths.
• Microplate Washing Equipment – It supports dispensing and drainage functions where higher total liquid movement is required.
• Chemical Analysis Systems – This pump helps transfer test liquids in equipment requiring compact dual-path flow control.
• Liquid Sampling Devices – It supports sample transfer where higher flow and compact integration are required.
• Cleaning & Disinfection Devices – It moves cleaning liquid through flushing or circulation modules with higher transfer demand.

Why Choose BODENFLO for Your OEM Pump Project

For OEM liquid handling projects, the right pump must match not only flow and pressure requirements, but also the working medium, installation space, operating conditions, and production targets. BODENFLO supports customers from pump selection and prototype testing to volume production.

• 600+ Standard Pump Models
  A broad product range helps customers compare different flow, pressure, size, and structural options without starting from a completely new design.
• Single-Head, Double-Head and Multi-Head Solutions
  BODENFLO provides diaphragm, piston, air, vacuum, and liquid pump platforms, giving engineers more flexibility when balancing performance and installation space.
• Application-Based Testing and Optimization
  Pumps can be evaluated according to actual working conditions, such as medium, system resistance, pressure, flow demand, and duty cycle, helping identify more suitable operating parameters before production.
• OEM Customization Support
  Materials, wiring, connectors, labeling, and other configurations can be adapted to simplify integration into customer equipment.
• Cost-Effective Manufacturing
  Direct factory supply helps OEM customers balance pump performance, customization requirements, and purchasing cost.
• From Samples to Volume Production
  BODENFLO supports prototype evaluation, small-batch validation, and long-term production supply for OEM equipment manufacturers.

Customer Feedback from OEM Applications

Real application feedback helps potential buyers understand how BD-05TF1500WBD performs in double-head liquid transfer and higher-flow OEM systems.

Germany | Analytical Instrument Designer
Application: Reagent and waste liquid handling system
Feedback: The double-head structure helped us manage two liquid paths while reducing the number of separate pump assemblies.

Finland | Printing System Developer
Application: Ink circulation and cleaning fluid system
Feedback: The higher total flow capacity made it suitable for circulation and maintenance fluid movement in one platform.

South Korea | Fluid System Engineer
Application: Cleaning liquid transfer module
Feedback: The pump provided a practical balance of flow capacity, compact structure, and gas-liquid compatibility.

Installation & Usage Notes

Proper installation helps maintain flow consistency, protect the pump chamber, and reduce integration issues in OEM liquid handling systems.

Inlet Filtration
Install a ≤30 μm filter at the pump inlet to prevent particles from entering the pump chamber and affecting diaphragm or valve operation.

Bottom Mounting

• Drill 4 × Φ3.2 mm holes at the bottom mounting position
• Use M4 self-tapping screws or M4 screws for board installation
• Ensure the pump is securely fixed to reduce vibration during operation

Wiring Definition

• Red Wire: Power Positive (+)
• Black Wire: Power Negative (–)

Tubing Installation

• Recommended tubing size: ID6 mm / OD8 mm
• Keep tubing connections sealed to avoid leakage, pressure loss, or priming difficulty
• Avoid sharp bending or excessive inlet restriction in dual-channel layouts

Material Compatibility
The standard wetted material configuration is PA + EPDM + EPDM. For chemically aggressive liquids or gases, verify media compatibility before testing and consider optional PTFE diaphragm or FFKM valve configurations.

Operating Environment

• Ambient temperature: 5°C to 40°C
• Fluid temperature: 5°C to 60°C
• For long-term operation, avoid blocked outlets, heavy inlet restriction, or conditions outside the recommended operating range.

Downloads – Datasheet

[BD-05TF1500WBD Micro Diaphragm Gas-Liquid Pump Datasheet (PDF)]

FAQ – BD-05TF1500WBD Micro Diaphragm Gas-Liquid Pump

Q1: Why is the actual liquid flow lower than the rated 1.5 L/min?

Actual flow can decrease due to tubing resistance, inlet restriction, filter pressure loss, suction height, or system back pressure. Check both flow paths, filter condition, and tubing layout when evaluating pump performance.

Q2: Why should I choose a double-head liquid pump instead of two separate pumps?

A double-head pump integrates two pumping chambers into one compact assembly, reducing the number of motors, wiring, mounting points, and components required. This can simplify system design while providing higher total flow capacity.

Q3: Why does one pump head have difficulty priming liquid?

Uneven priming is usually related to air leakage, different suction conditions, excessive suction height, or restriction in one inlet path. Check both channels separately to ensure similar inlet conditions and proper sealing.

Q4: What is the warranty period for BODENFLO micro pumps?

BODENFLO provides a 1-year warranty for micro pump products. Damage caused by improper installation, incorrect operation, or use outside the specified operating conditions is not covered.

Q5: Are there other diaphragm liquid pumps with similar flow options?

Yes. BODENFLO offers several single-head diaphragm liquid pumps with different flow and pressure ranges for OEM fluid handling systems:

• BD-05TF1500WB – 1.5 L/min water flow, suitable for applications requiring higher single-channel liquid transfer capacity.
• BD-05TF800WBD – 800 mL/min water flow, suitable for medium-to-high flow liquid transfer and circulation.
• BD-05TF700WBD – 700 mL/min water flow, providing another compact option for moderate-flow applications.
• BD-05TF650WBD – 650 mL/min water flow with up to 5 bar maximum water pressure, suitable when higher discharge pressure is required.

The suitable model can be selected according to required flow, pressure, liquid medium, installation space, and operating conditions.

Contact BODENFLO – OEM Double Head Liquid Pump Solutions

If you are developing analytical instruments, digital printing systems, or compact OEM liquid handling equipment, BODENFLO provides double-head diaphragm pump solutions designed to support higher flow requirements and system-level integration.

What We Can Provide

• Pump selection support based on total flow, pressure, suction height, and installation requirements
• Material recommendations for liquid compatibility and service life targets
• OEM customization of voltage, wiring, tubing, connectors, and mounting structures
• Engineering support for double-head pump integration and prototype validation
• Fast sample delivery for early-stage evaluation and testing
• Stable manufacturing capacity for long-term OEM and private-label projects
