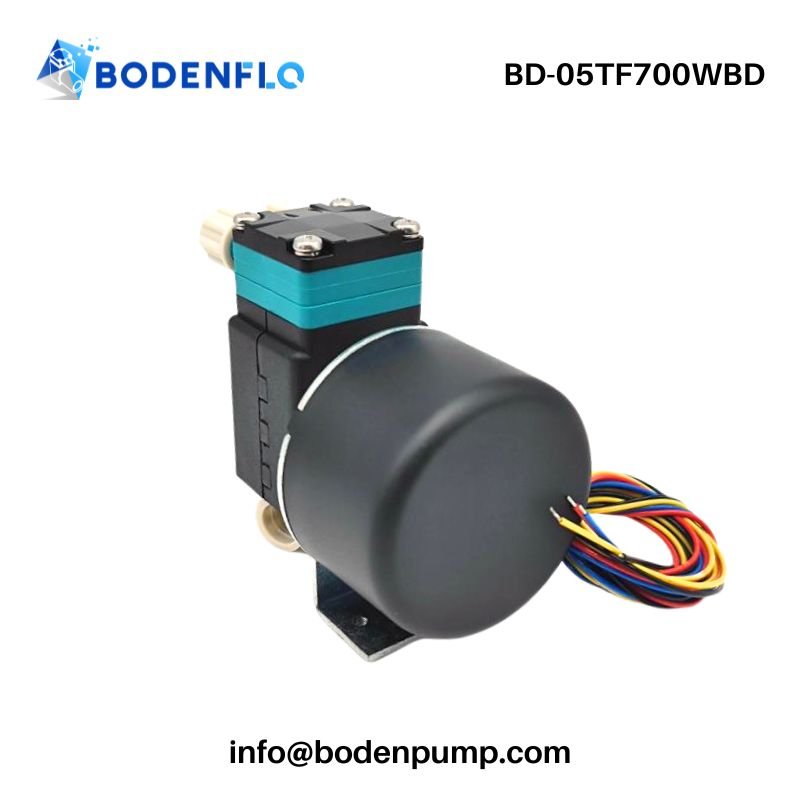

The BD-05TF700WBD is a liquid micro pump designed for OEM gas-liquid handling systems, delivering 700 mL/min water flow, 3 bar water pressure, and 2 L/min gas flow with a brushless DC motor for reliable fluid transfer, suction support, and compact system integration.
| Voltage | 12 V / 24 V DC |
|---|---|
| Max Flow | 700 mL/min (water), 2 L/min (gas) |
| Max Vacuum | -30 kPa |
| Max Pressure | 3 bar (water), 45 kPa (gas) |
| Motor | DC Brushless Motor |
| Load Current | 0.5 A / 0.25 A |
| Weight | 200 g |

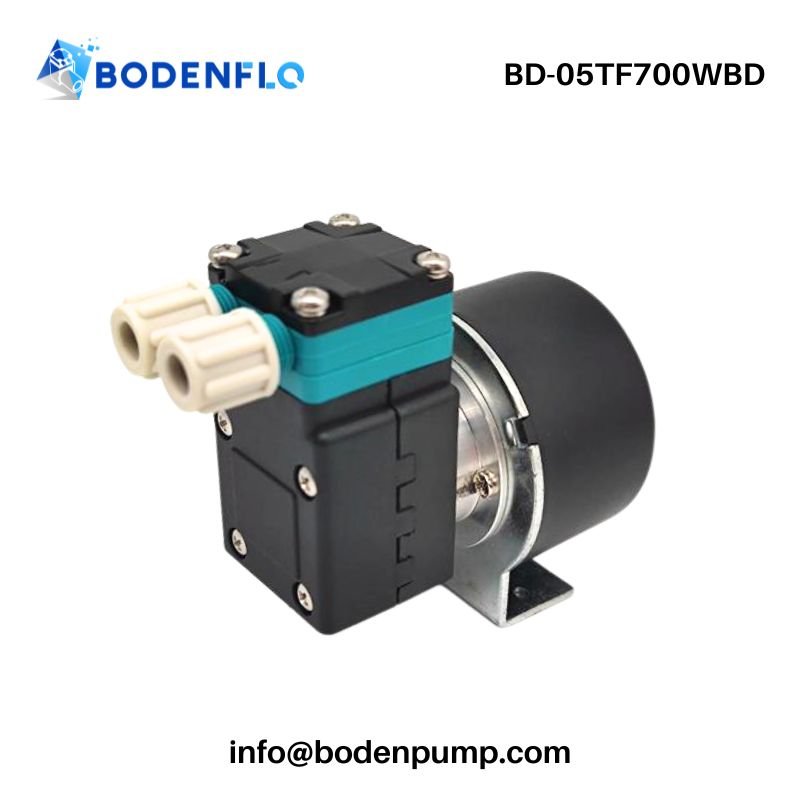

The BD-05TF700WBD is a liquid micro pump designed for OEM fluid handling systems that require reliable water transfer, moderate pressure, and gas-liquid compatibility in a compact pump body. Built with a diaphragm pumping structure and a brushless DC motor, it can support both liquid transfer and low-flow gas movement in one integrated pump platform.
With 700 mL/min water flow, 3 bar water pressure, 2 L/min gas flow, and -30 kPa gas vacuum, this model is suitable for compact dispensing, cleaning, sampling, and analytical fluid systems. For OEM engineers, it provides a practical balance of flow, pressure, motor life, and installation flexibility.
The following specifications help engineers evaluate whether BD-05TF700WBD matches the required liquid flow, gas performance, pressure output, electrical data, and installation space before sample testing.

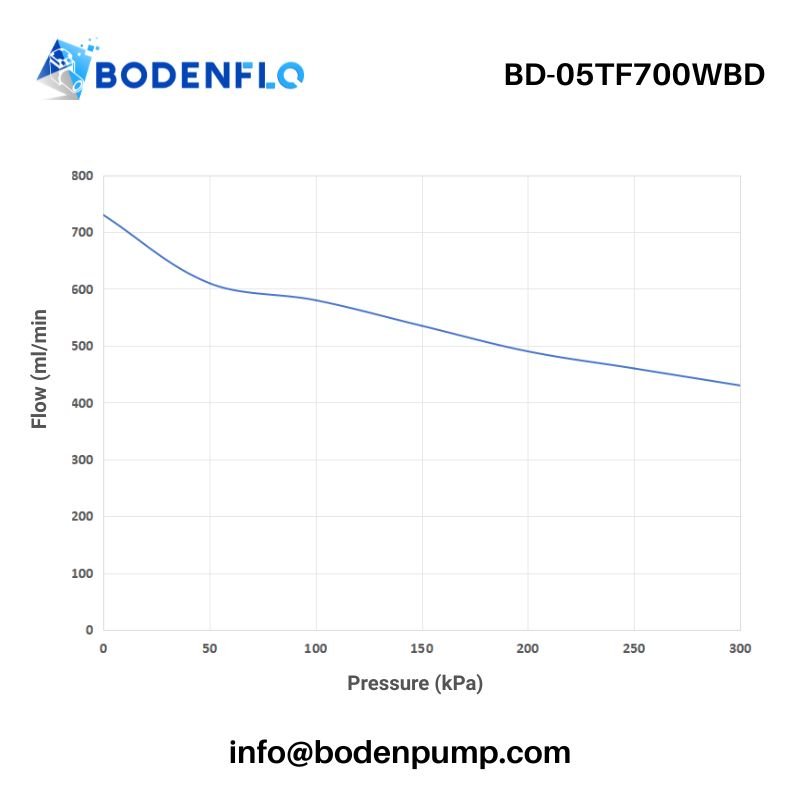

| Category | Specification |
|---|---|
| Basic Information | |
| Model | BD-05TF700WBD |
| Type | Micro Liquid Pump |
| Structure | Diaphragm Gas-Liquid Pump |
| Voltage Range | 12 V / 24 V DC |
| Liquid Performance | |
| Free Water Flow | 700 mL/min (0.185 gpm) |
| Max Water Pressure | 3 bar (43.5 psi / 3000 mbar / 0.3 MPa) |
| Water Pressure Head | >15 m |
| Water Suction Head | 3 m |
| Gas Performance | |
| Free Gas Flow | 2 L/min (0.071 cfm) |
| Max Gas Pressure | 45 kPa (6.5 psi / 450 mbar) |
| Max Gas Vacuum | -30 kPa (-8.9 in.Hg / -300 mbar / -225 mmHg) |
| Electrical & Motor Data | |
| Motor Type | DC Brushless Motor |
| Load Current | 0.5 A / 0.25 A |
| Noise | 55 dB |
| Lifetime | 8000 h |
| Mechanical Data | |

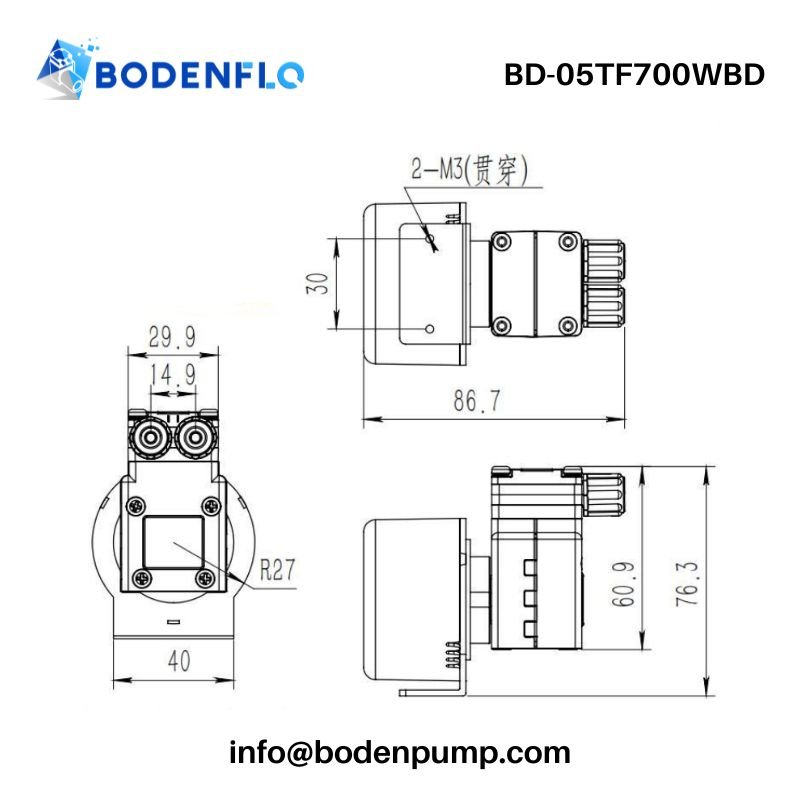

| Dimensions | 86.7 × R27 × 76.3 mm (3.41 × R1.06 × 3.00 in) |
| Weight | 200 g (0.44 lb) |
| Recommended Tubing Size | ID4 mm / OD6 mm |
| Operating Conditions | |
| Ambient Temperature | 5°C to 40°C |
| Fluid Temperature | 5°C to 60°C |
Water Flow Measurement:
Water flow is measured using a high-precision miniature electromagnetic flowmeter (electromagnetic induction volumetric flowmeter).
The test setup includes approximately 1 m inlet and outlet tubing to simulate practical installation conditions.
Noise Measurement:
Noise is measured at a distance of 1 m from the pump during normal operation under standard working conditions.
Lifetime Testing:
Lifetime is evaluated under continuous 24-hour no-load operation, with both inlet and outlet open to atmosphere (ambient pressure conditions).
The standard material configuration is suitable for many OEM water transfer and gas-liquid handling applications. PA66 pump head material and EPDM diaphragm/valve components provide a practical balance of sealing performance, durability, and cost efficiency for general fluid handling systems.
| Component | Material / Feature |
|---|---|
| Pump Head | PA66 |
| Diaphragm | EPDM |
| Valve | EPDM |
| Motor | DC Brushless Motor |
| Operation | Oil-free, self-priming, dry-running capable |
For chemical liquids, cleaning fluids, or special gases, material compatibility should be reviewed before sample testing. If the standard PA66 and EPDM configuration does not fully match the working medium, BODENFLO can discuss alternative material options according to the application.
If the standard version does not fully match your system design, BODENFLO can support selected customization items for OEM integration.
| Item | Customization Options |
|---|---|
| Voltage | 12 V / 24 V options; project-based adjustment available |
| Wiring | Custom cable length and wire definition |
| Connector | Open leads, plug connectors, or OEM interface |
| Branding | Customer-specific marking or private label |
BODENFLO can help configure wiring, connectors, tubing, labels, and mounting details to reduce assembly work during prototype and production stages.
BD-05TF700WBD is suitable for OEM equipment that requires compact liquid transfer, moderate pressure, and gas-liquid compatibility.
For OEM fluid handling projects, the right pump should help you reduce development time, avoid integration problems, control costs, and achieve stable performance in the final equipment. BODENFLO supports your project from initial selection and testing through volume production.
Application feedback helps buyers understand how BD-05TF700WBD can be used in compact gas-liquid handling systems.
Germany | Laboratory Equipment Engineer
Application: Analytical fluid transfer module
Feedback: The compact structure and brushless motor made the pump suitable for our reagent transfer and cleaning cycle design.
Finland | Printing System Developer
Application: Ink and cleaning fluid handling
Feedback: The 3 bar water pressure helped maintain fluid movement through a more restrictive tubing path.
South Korea | Fluid System Integrator
Application: Compact cleaning module
Feedback: The pump provided a useful balance of water flow, gas-liquid compatibility, and installation size.
Proper installation helps maintain stable liquid flow, gas performance, and service life during OEM integration.
Inlet Protection and Fluid Path
Install a ≤30 μm inlet filter to prevent particles from entering the pump chamber. Keep tubing and fittings sealed to reduce leakage, pressure loss, or priming difficulty.
Mounting and Wiring
Use 2 × M3 threaded holes on the base for mounting and fixation. Wiring definition: red wire for positive, black wire for negative, blue wire for 0–5 V PWM speed control, and yellow wire for FG frequency/speed output.
Material and Operating Conditions
The standard configuration uses a PA66 pump head with EPDM diaphragm and valve. For special liquids or gases, confirm compatibility before sample testing. Ambient temperature is 5°C to 40°C, and fluid temperature is 5°C to 60°C.
[BD-05TF700WBD Liquid Micro Pump Datasheet (PDF)]
Actual flow can decrease because of inlet restriction, clogged filters, long tubing, small inner diameter tubing, or system back pressure. For a liquid micro pump, checking the ID4 mm / OD6 mm tubing, inlet filter, suction height, and working pressure can help identify the cause.
Yes. The BD-05TF700WBD is a gas-liquid diaphragm pump providing 700 mL/min water flow, 3 bar water pressure, 2 L/min gas flow, and −30 kPa gas vacuum. This allows one pump platform to support both liquid transfer and selected gas-handling functions.
The pump uses a brushless DC motor with a specified lifetime of 8,000 hours. BODENFLO's lifetime specification is evaluated under continuous 24-hour no-load testing with the inlet and outlet open to atmosphere. Actual service life depends on pressure, medium, duty cycle, temperature, and system conditions.
To recommend the right pump and evaluate performance under your actual working conditions, please provide:
With this information, BODENFLO can simulate the actual operating conditions, evaluate system resistance, and recommend a more suitable pump and operating parameters before sample testing.
Yes. BODENFLO offers several single-head diaphragm liquid pumps for different flow and pressure requirements:
If you are developing digital printing equipment, biochemical analyzers, cleaning modules, or compact OEM fluid handling systems, BODENFLO can support pump selection, material review, customization, sample testing, and long-term supply.
What We Can Provide
Pump selection support based on water flow, water pressure, gas flow, vacuum, and suction height
Material recommendations for liquid and gas compatibility
OEM customization of voltage, wiring, connectors, tubing, labels, and mounting structures
Engineering support for prototype testing and fluid path review
Flexible sample delivery for early-stage evaluation
Stable manufacturing capacity for long-term OEM and private-label projects
