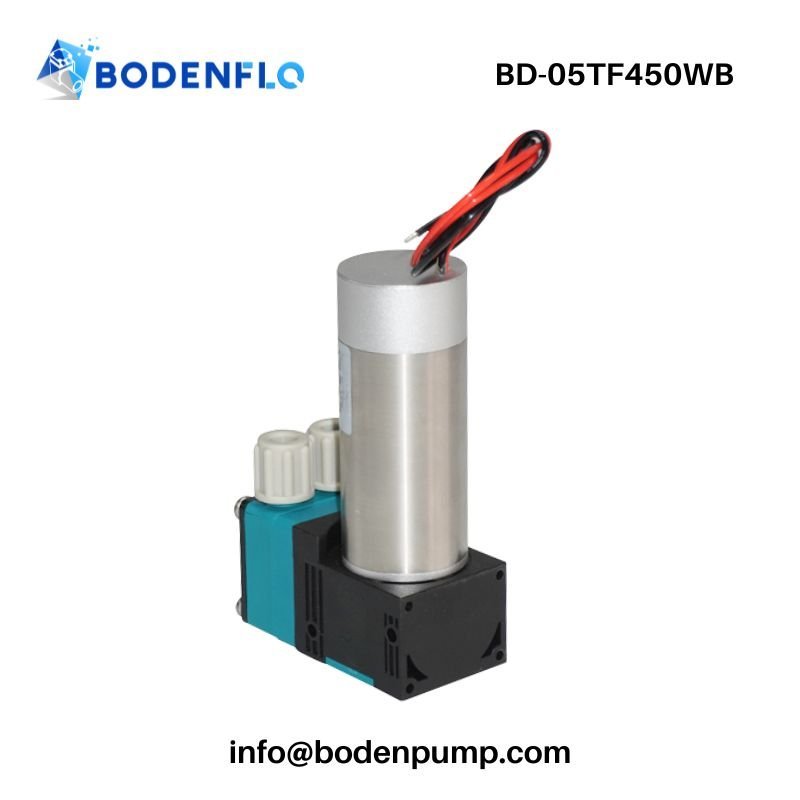

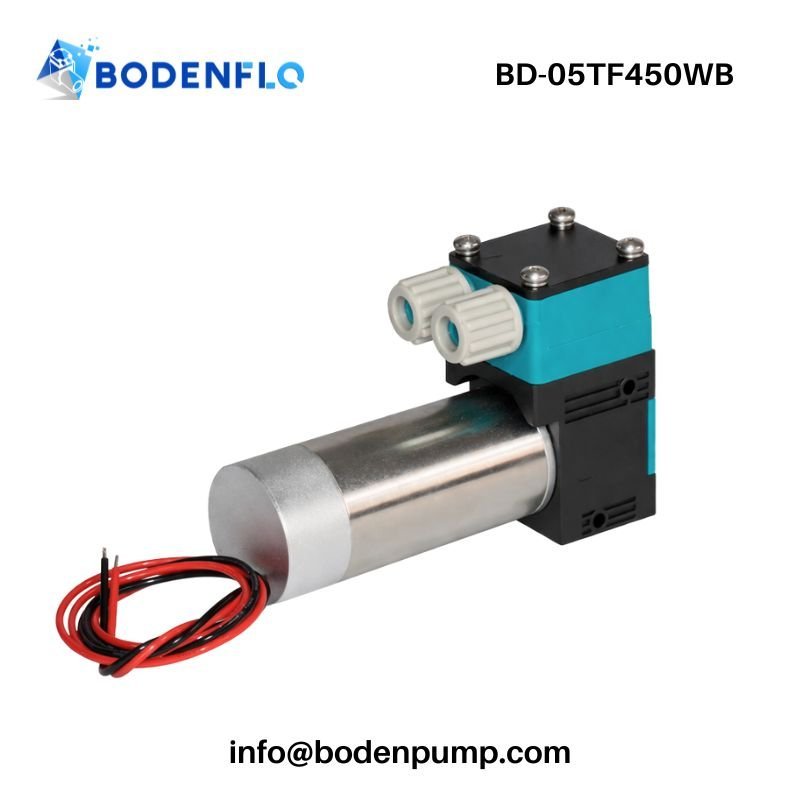

Overview of BD-05TF450WB Precision Liquid Pump
The BD-05TF450WB is a small liquid pump designed for OEM integration in inkjet systems and compact analyzers, where controlled fluid transfer and consistent output are required. Its diaphragm-based structure enables clean, oil-free operation, making it suitable for applications involving inks, reagents, and light chemical media.
Driven by a brushless motor, this pump supports continuous-duty operation with low noise and reduced vibration. The compact design allows flexible installation in space-constrained equipment, while its gas-liquid compatibility provides additional versatility for systems that require both liquid delivery and air-assisted processes.
Key Features of BD-05TF450WB Miniature Diaphragm Pump
- Oil-Free Diaphragm Structure – Ensures contamination-free fluid transfer, critical for inkjet and analytical systems requiring clean media handling
- Brushless Motor Drive – Supports long service life and reduced maintenance, lowering total ownership cost for OEM equipment
- Gas-Liquid Compatibility – Enables dual-function operation, allowing one pump to handle both liquid transfer and air-assisted processes
- Self-Priming Capability – Simplifies system design by eliminating the need for pre-filling, improving startup efficiency
- Compact Form Factor – Facilitates easy integration into space-limited devices such as coding machines and portable analyzers
- Low Noise & Vibration – Enhances end-product user experience, especially in desktop or laboratory environments
- Dry-Running Capability – Protects the pump during intermittent fluid supply conditions, reducing risk of damage and downtime
Technical Specifications of BD-05TF450WB Micro Liquid Pump
The specifications below are organized to help you assess how BD-05TF450WB will perform in your system.
Check flow, pressure, operating limits, and overall size to confirm technical compatibility.
| Basic Information | |
| Model | BD-05TF450WB |
| Type | Small Liquid Pump |
| Structure | Diaphragm Pump |
| Voltage Range | 6 V / 12 V / 24 V DC |
| Liquid Performance | |
| Free Water Flow | 450 mL/min (0.119 gpm) |
| Max Water Pressure | 2.5 bar (36.3 psi / 2500 mbar / 0.25 MPa) |
| Water Pressure Head | >15 m |
| Water Suction Head | 7 m |
| Gas Performance | |
| Free Gas Flow | 4 L/min (0.141 cfm) |
| Max Gas Pressure | 1 bar (14.5 psi / 1000 mbar / 0.1 MPa) |
| Max Gas Vacuum | -60 kPa (-17.7 in.Hg / -600 mbar / -450 mmHg) |
| Electrical & Motor Data | |
| Motor Type | DC Brushless Motor |
| Max Power | 7 W |
| Noise | 55 dB |
| Lifetime | 10000 h |
| Mechanical Data | |
| Dimensions | 94 × 31.1 × 60.3 mm (3.70 × 1.22 × 2.37 in) |
| Weight | 200 g |
| Recommended Tubing Size | ID 4 mm, OD 6 mm |
| Operating Conditions | |
| Ambient Temperature | 5°C to 40°C |
| Fluid Temperature | 10°C to 60°C |
Testing Conditions & Measurement Standards
Water Flow Measurement:
Water flow is measured using a high-precision miniature electromagnetic flowmeter (electromagnetic induction volumetric flowmeter).
The test setup includes approximately 1 m inlet and outlet tubing to simulate practical installation conditions.
Noise Measurement:
Noise is measured at a distance of 1 m from the pump during normal operation under standard working conditions.
Lifetime Testing:
Lifetime is evaluated under continuous 24-hour no-load operation, with both inlet and outlet open to atmosphere (ambient pressure conditions).
Standard Materials & Reliability
The standard configuration is designed to balance chemical compatibility, stable operation, and long service life in typical OEM applications.
| Component | Material / Feature |
| Pump Head | PA66 |
| Diaphragm | EPDM |
| Valve | EPDM |
For applications involving more demanding media, longer life targets, or special integration requirements, customized material options are also available.
OEM Customization Options
If your system requires specific electrical configurations, material compatibility, or installation interfaces, selected parameters can be adjusted to better match your integration needs.
| Item | Customization Options |
| Voltage | 6 V / 12 V / 24 V DC selectable |
| Motor Type | Brushed / Brushless selection based on lifetime target |
| Materials | EPDM / PTFE / FFPM for media compatibility |
| Wiring | Customized length, color, and harness structure |
| Connector | Bare wire, plug-in, or waterproof connector |
| Tubing | ID/OD adjustment for flow matching |
| Branding | OEM label and private branding support |
| Mounting | Customized bracket or hole pattern |
| Control Signal | PWM or analog speed control integration |
| Flow / Pressure | Application-based performance calibration |
Integrated System Capability
BODENFLO supports pre-integrated configurations including connectors, tubing, and mounting structures, enabling the pump to be delivered as a ready-to-install module.
This reduces assembly workload and simplifies OEM system integration during development and production.
Typical Applications of BD-05TF450WB Precision Liquid Pump
This model is commonly used in OEM equipment where controlled micro liquid transfer and compact system integration are required. The following applications help you quickly evaluate whether the pump function matches your system architecture.
- Inkjet Printing Systems
This pump is used to supply and circulate ink with controlled micro-flow delivery in printhead modules. - Coding & Marking Machines
This pump supports ink transfer and replenishment within continuous marking systems requiring precise dosing. - Biochemical Analyzers
This pump handles reagent micro-transfer to support controlled fluid routing in analytical testing paths. - Microplate Washing Equipment
This pump is used to deliver and drain washing liquids in automated laboratory plate cleaning systems. - Liquid Sampling Devices
This pump enables small-volume liquid extraction and transfer for diagnostic or monitoring systems. - Cleaning & Disinfection Systems
This pump supports controlled dosing and circulation of cleaning solutions in compact OEM equipment.
Why Choose BODENFLO for Your OEM Pump Project
Engineering Support Beyond Pump Supply
In OEM development, the challenge is not only selecting a suitable pump, but ensuring it can be integrated, validated, and produced consistently. BODENFLO supports customers across selection, customization, and system integration to reduce development uncertainty.
Key Support Capabilities
- Application-Oriented Pump Selection
We help evaluate flow, pressure, voltage, and media conditions to ensure model selection is aligned with real system requirements rather than catalog-only comparison. - Material & Media Compatibility Guidance
For different working media and duty cycles, we support selection of suitable wetted materials such as EPDM, PTFE, and FFPM to reduce compatibility risks. - OEM Integration Support
Connectors, tubing, and mounting structures can be pre-configured to match equipment design, reducing assembly workload and improving installation consistency. - Prototype Validation Support
We assist customers during early testing stages to help verify performance behavior under real operating conditions before moving to mass production. - Cost-Performance Configuration Options
Different motor types and structural configurations can be adjusted to balance performance targets and project cost requirements across development stages. - Stable Supply for Production Scaling
Our manufacturing system is structured to support transition from sample approval to long-term OEM production with consistent delivery capability.
Customer Feedback from OEM Applications
The following feedback reflects how customers use BD-05TF450WB in real OEM systems and what they value most in actual integration and long-term operation.
Germany | Printing System Developer
Application: Digital printing platform
Feedback: The pump integrates smoothly into our printing system layout and maintains consistent ink transfer during continuous operation cycles.
Japan | Analytical Instrument Engineer
Application: Chemical analysis equipment
Feedback: The compact structure made system integration easier, and the liquid transfer behavior fits well with our reagent handling requirements.
USA | Fluid System R&D Engineer
Application: Liquid sampling device
Feedback: It delivers reliable micro liquid transfer in our sampling system and performs well under repeated start-stop operating conditions.
Installation & Usage Notes
To ensure stable long-term operation, follow these installation guidelines:
Inlet Filtration
Install a ≤30 μm precision filter at the pump inlet to prevent particles from entering the pump chamber and affecting valve and diaphragm performance.
Bottom Mounting

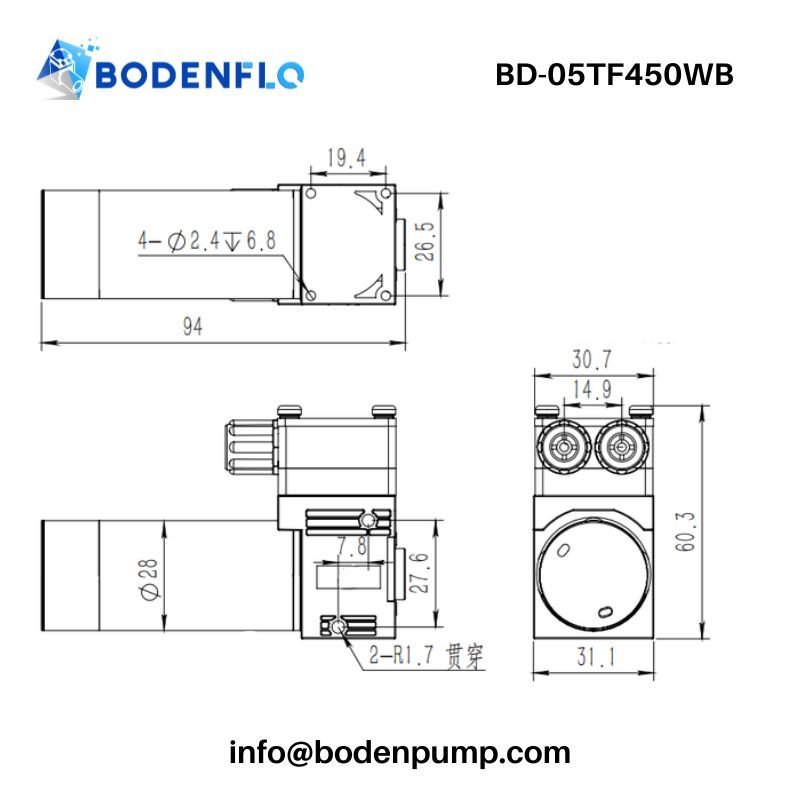

4 × Φ2.4 mm holes (depth 6.8 mm)
Recommended fasteners: M3 self-tapping screws for secure through-board fixation
Side Mounting
2 × R1.7 mm through holes
Use M3 screws for stable installation through the mounting plate
Proper mounting helps reduce vibration transmission and improves overall system stability in OEM integration.
Q1: Why does the pump output fluctuate in some inkjet or dosing systems?
In most cases, flow fluctuation is caused by inlet air leakage, insufficient priming, or improper tubing selection. Ensuring airtight connections and correct inlet conditions helps maintain consistent micro-liquid delivery.
Q2: What causes difficulty in self-priming at startup?
Priming issues usually come from excessive suction height, dry inlet conditions, or missing inlet filtration setup. Keeping suction within the rated range and ensuring a sealed inlet path improves startup performance.
Q3: Why does the pump show increased noise or vibration during operation?
This is often related to unstable mounting, resonance from system structure, or backpressure fluctuations. A rigid installation and stable tubing layout help reduce mechanical vibration.
Q4: What is the delivery time for this diaphragm liquid pump?
Sample delivery is typically 3–5 days. Bulk production lead time is usually 20–30 days depending on order volume and customization requirements.
Q5: Is a brushed version available for this model?
Yes, a brushed motor version is available under model BD-05TF450W, designed for cost-sensitive OEM applications with similar integration requirements.
