The BD-05TF1500WB is a medical liquid pump designed for OEM fluid handling systems, delivering 1.5 L/min water flow, 3 bar water pressure, brushless motor operation, and gas-liquid compatibility for analytical instruments, cleaning systems, and controlled liquid transfer applications.
| Voltage | 24 V DC |
|---|---|
| Max Flow | 1.5 L/min (water), 4 L/min (gas) |
| Max Vacuum | -30 kPa |
| Max Pressure | 3 bar (water), 50 kPa (gas) |
| Motor | Brushless DC Motor |
| Max Power | 6 W |
| Weight | 390 g |

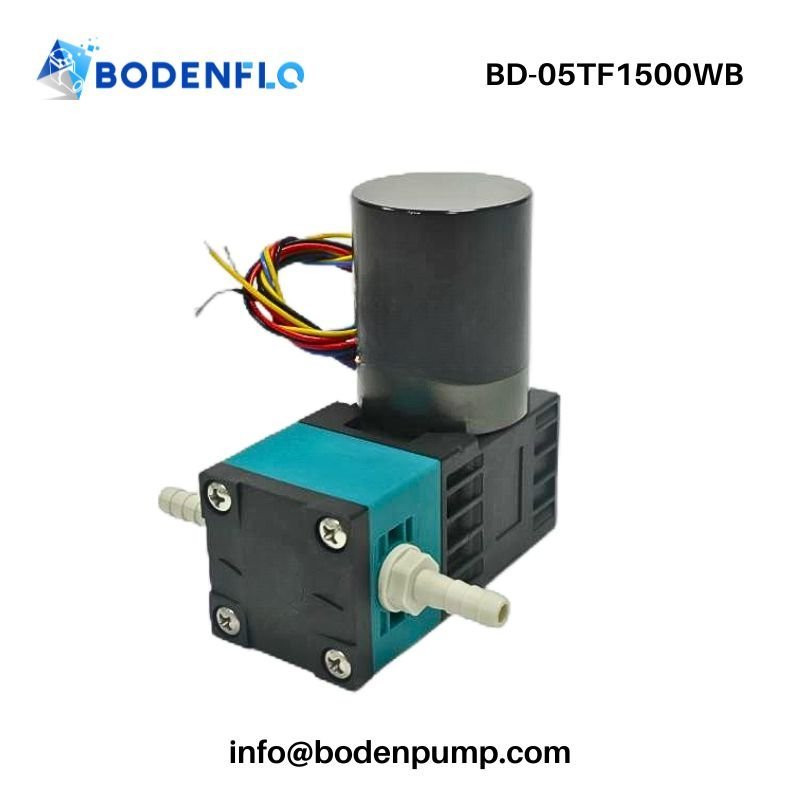

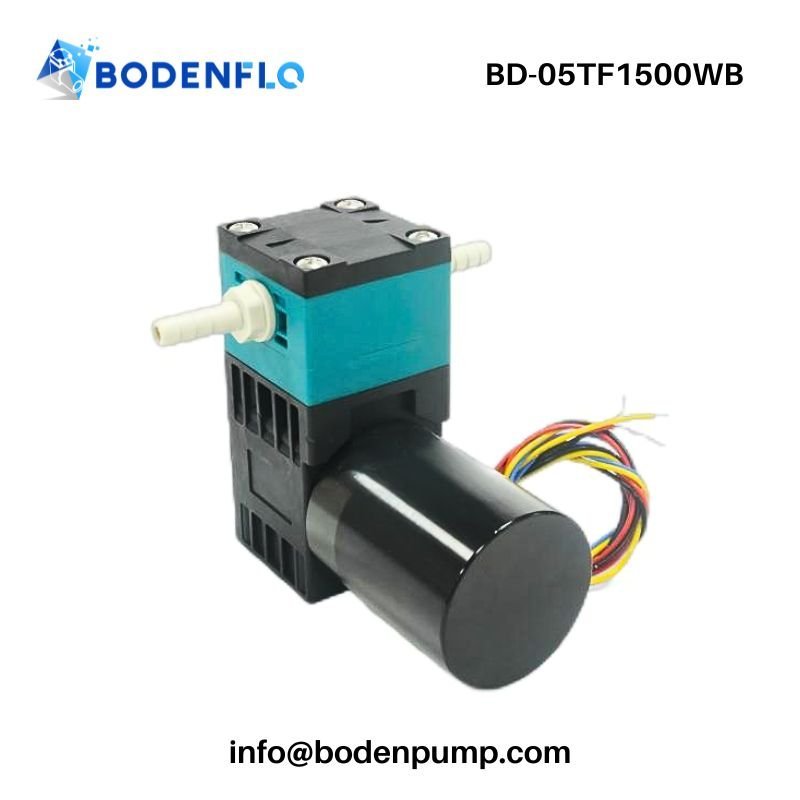

The BD-05TF1500WB is a compact diaphragm pump designed for OEM liquid handling systems that require higher water flow and moderate pressure in a single-head structure. With a brushless DC motor, gas-liquid compatible design, and 24 V DC operation, it is suitable for analytical instruments, cleaning modules, sampling devices, and automated fluid transfer equipment.
Compared with smaller micro pump models, this pump focuses on 1.5 L/min water flow and 3 bar water pressure while keeping the structure compact for equipment integration. For OEM engineers, it provides a practical balance between flow capacity, pressure output, motor life, and controllable system installation.
The following specifications help engineers evaluate whether BD-05TF1500WB matches the required flow, pressure, electrical control, installation space, and working conditions before sample testing.
| Category | Specification |
|---|---|
| Basic Information | |
| Model | BD-05TF1500WB |
| Type | Micro Liquid Pump |
| Structure | Single-Head Diaphragm Pump |
| Voltage Range | 24 V DC |
| Liquid Performance | |
| Free Water Flow | 1.5 L/min |
| Max Water Pressure | 3 bar |
| Water Pressure Head | 10 m |
| Water Suction Head | 3 m |
| Gas Performance | |
| Free Gas Flow | 4 L/min |
| Max Gas Pressure | 50 kPa |
| Max Gas Vacuum | -30 kPa |
| Electrical & Motor Data | |
| Motor Type | Brushless DC Motor |
| Max Power | 6 W |
| Control Signal | PWM speed control, FG speed feedback |
| Noise | 55 dB |
| Lifetime | 8000 h |
| Mechanical Data | |

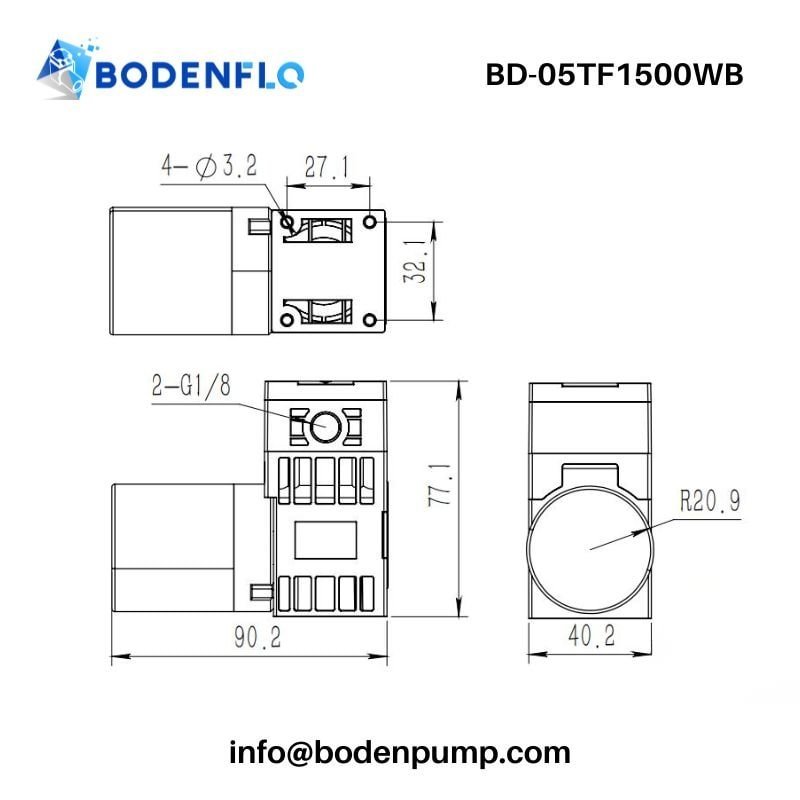

| Dimensions | 90 × 40 × 77 mm |
| Weight | 390 g |
| Recommended Tubing Size | ID6 mm / OD8 mm |
| Operating Conditions | |
| Ambient Temperature | 5°C to 40°C |
| Fluid Temperature | 5°C to 60°C |
Water Flow Measurement:
Water flow is measured using a high-precision miniature electromagnetic flowmeter (electromagnetic induction volumetric flowmeter).
The test setup includes approximately 1 m inlet and outlet tubing to simulate practical installation conditions.
Noise Measurement:
Noise is measured at a distance of 1 m from the pump during normal operation under standard working conditions.
Lifetime Testing:
Lifetime is evaluated under continuous 24-hour no-load operation, with both inlet and outlet open to atmosphere (ambient pressure conditions).
The standard wetted material configuration is suitable for many OEM liquid handling and gas-liquid transfer applications where common aqueous fluids, cleaning liquids, or non-aggressive media are used.
| Component | Material / Feature |
|---|---|
| Pump Head | PA66 |
| Diaphragm | EPDM |
| Valve | EPDM |
For applications involving chemical liquids, corrosive gases, or stricter compatibility requirements, material upgrades can be evaluated during sample selection. Optional configurations such as PTFE diaphragm and FFKM valves are available for projects requiring improved chemical resistance.
If the standard configuration does not fully match the target system, BODENFLO can support selected customization items for OEM integration.
| Item | Customization Options |
|---|---|
| Materials | PA66, EPDM, PTFE, or FFKM options |
| Wiring | Custom cable length and wire definition |
| Connector | Open leads, plug connectors, or OEM interface |
| Tubing | ID6 mm / OD8 mm standard; custom tubing available |
| Branding | Customer-specific marking or private label |
| Pressure / Flow Tuning | Adjusted according to application requirements |
BODENFLO can also pre-configure wiring, connectors, tubing, and performance parameters to reduce assembly work and support faster prototype integration.
BD-05TF1500WB is suitable for OEM equipment that requires higher liquid flow, moderate pressure, and controllable brushless motor operation in a compact pump body.
For OEM pump projects, selecting the right supplier requires more than matching flow and pressure. Engineers also need reliable support in pump selection, material compatibility, customization, and long-term supply. BODENFLO supports customers from prototype evaluation to mass production.
Wide Range of Pump Solutions: BODENFLO provides diaphragm pumps, piston pumps, liquid pumps, air pumps, vacuum pumps, and mini compressors. With 600+ standard models, we help customers quickly find suitable solutions for different applications and equipment requirements.
Engineering Support for OEM Integration: We support pump selection, application evaluation, prototype testing, and system integration. Customization options include materials, wiring, connectors, tubing interfaces, labeling, and performance adjustments.
Material Solutions for Different Applications: BODENFLO provides material evaluation and customization options including PTFE, EPDM, FKM, and other material combinations to meet different liquid and gas compatibility requirements
Stable Manufacturing and Long-Term Supply: As a direct pump manufacturer, BODENFLO supports sample testing, small-batch evaluation, and long-term OEM production while helping customers balance performance, customization, and cost.
Application Simulation and Performance Optimization: BODENFLO can evaluate pump performance based on actual working conditions, including liquid characteristics, tubing resistance, pressure requirements, flow demand, and duty cycle. Through application testing and parameter optimization, we help customers identify the most suitable pump configuration before mass production.
Real application feedback helps buyers understand how BD-05TF1500WB performs in practical fluid handling systems.
Finland | Printing Equipment Developer
Application: Ink circulation and cleaning fluid system
Feedback: The 1.5 L/min liquid flow helped support higher circulation demand while keeping the pump compact enough for equipment integration.
Germany | Laboratory Instrument Engineer
Application: Biochemical analyzer liquid handling module
Feedback: The brushless motor and PWM control made it easier to adjust flow during reagent and cleaning cycles.
South Korea | Automation System Integrator
Application: Cleaning liquid transfer system
Feedback: The pump provided a practical balance of water flow, pressure, and gas-liquid compatibility for a compact cleaning module.
Proper installation helps maintain flow consistency, reduce vibration, and protect the internal diaphragm and valve structure.
Inlet Filtration
Install a ≤30 μm filter at the pump inlet to prevent particles from entering the pump chamber and affecting valve sealing or diaphragm movement.
Bottom Mounting
Drill 4 × Φ3.2 mm mounting holes at the bottom position. Use M4 self-tapping screws or M4 screws to secure the pump during installation.
Wiring Definition
Red Wire: Power Positive (+)
Black Wire: Power Negative (–)
Blue Wire: PWM control signal, 0–5 V speed regulation
Yellow Wire: FG speed feedback signal
Full-Speed Operation Without Speed Control
Connect red and blue wires to positive (+). Connect the black wire to negative (–). Leave the yellow wire unconnected.
Tubing Installation
Use ID6 mm / OD8 mm tubing. Keep tubing connections sealed to avoid leakage, pressure loss, or suction difficulty. Avoid sharp bends and excessive inlet restriction.
Material Compatibility
The standard pump head is PA66, with EPDM diaphragm and EPDM valves. For chemically aggressive liquids or gases, verify compatibility before testing and consider optional PTFE or FFKM configurations.
Operating Environment
Ambient temperature: 5°C to 40°C
Fluid temperature: 5°C to 60°C
Avoid blocked outlets, excessive back pressure, or operation outside the recommended temperature range during long-term use.
[BD-05TF1500WB Medical Liquid Pump Datasheet (PDF)]
