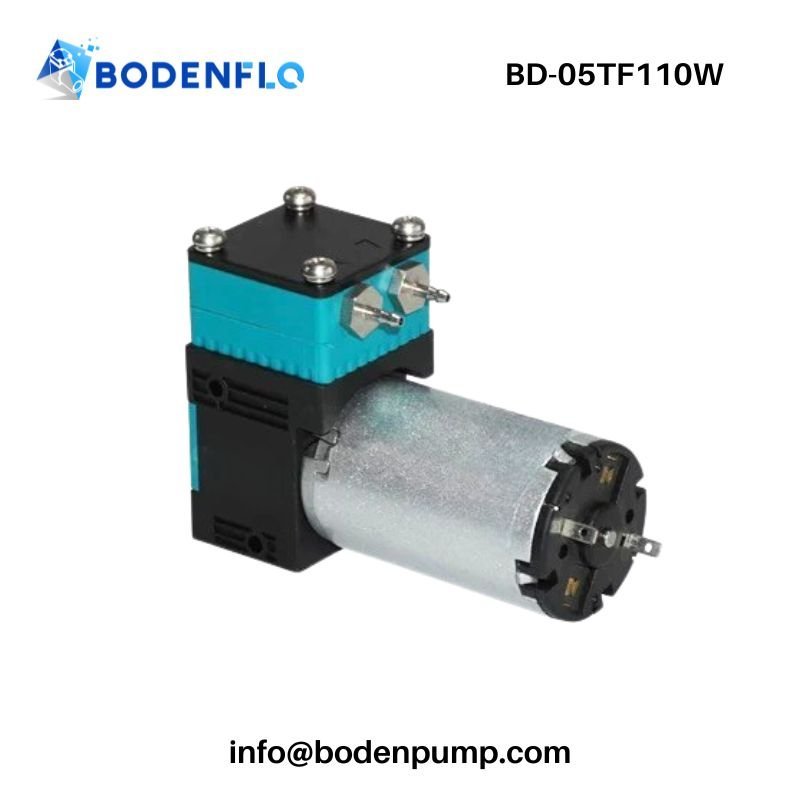

The BD-05TF110W is a compact oil-free micro liquid pump designed for OEM ink delivery and precision fluid transfer systems, offering 110 mL/min controlled flow, self-priming diaphragm operation, and low-noise performance for digital printing equipment and analytical instruments.
| Voltage | 6 V / 12 V / 24 V |
|---|---|
| Max Flow | 110 mL/min (water), 3 L/min (gas) |
| Max Vacuum | –60 kPa |
| Max Pressure | 2.5 bar (water), 1 bar (gas) |
| Motor | DC Brush Motor |
| Max Power | 5 W |
| Weight | 200 g |

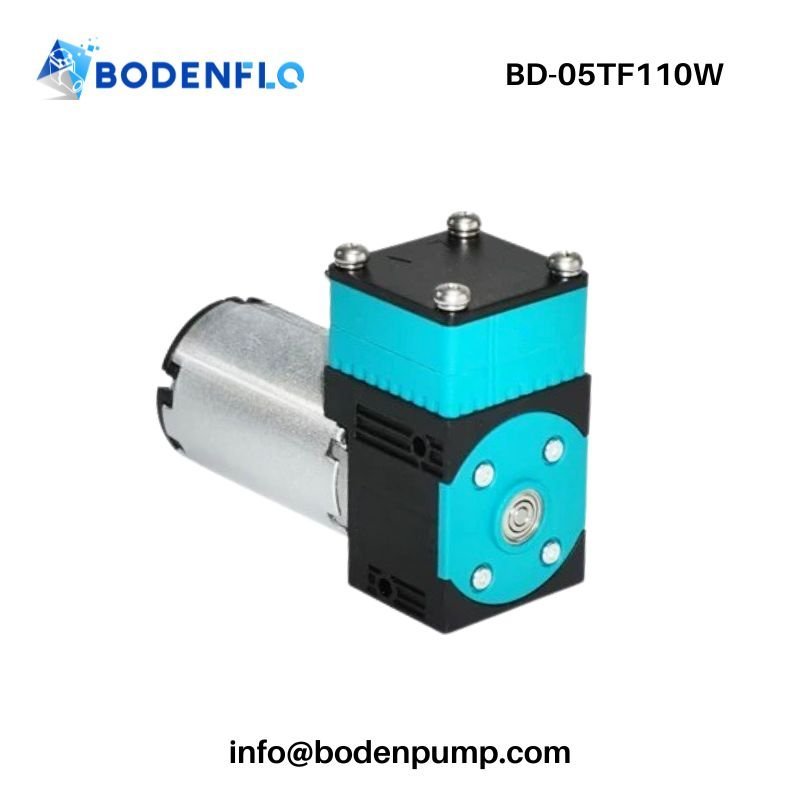

The BD-05TF110W is a compact small liquid pump designed for controlled fluid transfer in precision OEM equipment. Built with a diaphragm pumping structure, it supports oil-free liquid handling with good sealing performance and self-priming capability, making it suitable for applications where clean media transfer and compact integration are important.
This pump is widely used in inkjet systems, biochemical analyzers, and other OEM fluid control devices that require accurate micro-flow delivery. With optional brushless motor configuration, it offers extended service life and reduced maintenance frequency, making it a practical solution for long-term equipment integration and continuous operation.
To help you quickly check whether BD-05TF110W is suitable for your system, we’ve listed the key specifications below.
Focus on flow, pressure, power, and size to evaluate whether it fits your design requirements.
| Basic Information | |
| Model | BD-05TF110W |
| Type | Small Liquid Pump |
| Structure | Diaphragm Pump |
| Voltage Range | 6V / 12V / 24V DC |
| Liquid Performance | |
| Free Water Flow | 110 mL/min (0.029 gpm) |
| Max Water Pressure | 2.5 bar (36.3 psi / 2500 mbar / 0.25 MPa) |
| Water Pressure Head | >15 m |
| Water Suction Head | 7 m |
| Gas Performance | |
| Free Gas Flow | 3 L/min (0.106 cfm) |
| Max Gas Pressure | 1 bar (14.5 psi / 1000 mbar / 0.1 MPa) |
| Max Gas Vacuum | -60 kPa (-17.7 in.Hg / -600 mbar / -450 mmHg) |
| Electrical & Motor Data | |
| Motor Type | DC Brush Motor |
| Max Power | 5 W |
| Noise | 55 dB |
| Lifetime | 3000 h |
| Mechanical Data | |
| Dimensions | 82.6 × 31.1 × 57.9 mm (3.25 × 1.22 × 2.28 in) |
| Weight | 200 g (0.44 lb) |
| Recommended Tubing Size | ID1.5 mm, OD3 mm |
| Operating Conditions | |
| Ambient Temperature | 5°C to 40°C |
| Fluid Temperature | 10°C to 60°C |
Water Flow Measurement:
Water flow is measured using a high-precision miniature electromagnetic flowmeter (electromagnetic induction volumetric flowmeter).
The test setup includes approximately 1 m inlet and outlet tubing to simulate practical installation conditions.
Noise Measurement:
Noise is measured at a distance of 1 m from the pump during normal operation under standard working conditions.
Lifetime Testing:
Lifetime is evaluated under continuous 24-hour no-load operation, with both inlet and outlet open to atmosphere (ambient pressure conditions).
For most OEM applications, the standard material configuration provides a practical balance of compatibility, durability, and stable performance.
| Component | Material / Feature |
| Pump Head | PA66 engineering plastic |
| Diaphragm | EPDM |
| Valve | EPDM |
For applications involving more demanding media, longer life targets, or special integration requirements, customized material options are also available.
If your system requires specific electrical configurations, material compatibility, or installation interfaces, selected items can be customized to better match your application.
| Customization Item | Available Options |
| Voltage | 6V / 12V / 24V |
| Motor Type | Brushless DC motor or cost-optimized brushed motor |
| Materials | Corrosion-resistant PPS head, PTFE diaphragm, FFPM valves |
| Wiring | Customized cable harness |
| Connector | Application-specific connectors available |
| Tubing | Pre-installed tubing or custom hose interface |
| Branding | OEM labeling and private branding |
BODENFLO also supports integrated customization, including connectors, tubing, and mounting brackets, allowing the pump to be delivered as a ready-to-install module.
This reduces assembly time, simplifies system integration, and helps OEM customers accelerate product development.
The BD-05TF110W is suitable for OEM systems that require stable liquid transfer, compact integration, and reliable long-term operation.
In many OEM projects, the real challenge is not just selecting a pump, but making sure it can be integrated, tested, and supplied smoothly over time.
BODENFLO supports customers not only with pump products, but also with the engineering, customization, and project support needed to move development forward.
The following feedback reflects how customers use BD-05TF110W in real OEM equipment and what they value most in actual applications.
Germany | Laboratory Equipment Engineer
Application: Automated reagent dosing system
Feedback: Stable liquid flow and reliable priming performance. It works very well in our automated reagent dosing system.
Japan | Printing System Developer
Application: Digital printing platform
Feedback: The pump integrates smoothly into our digital printing platform and maintains consistent ink transfer during long operation cycles.
South Korea | Analytical Instrument Developer
Application: Compact liquid sampling system
Feedback: Its compact size and smooth operation made it a practical option for our OEM project.
1.Install a ≤30 μm inlet filterto prevent particles from entering the pump chamber.

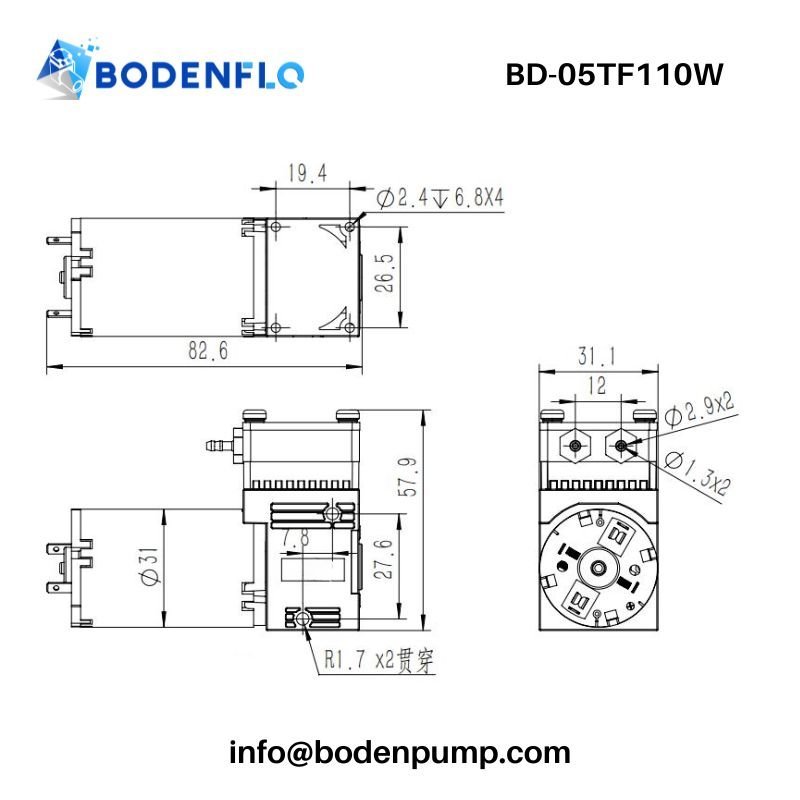

2.Bottom mounting: 4 × Φ2.4 mm holes (depth 6.8 mm)with M3 self-tapping screws.
3.Side mounting: 2 × R1.7 mm through holesusing M3 screws.
4.Wiring Definition: Red wire (+) positive, black wire (–) negative, blue wire 0–5V control signal for speed regulation, and yellow wire for frequency output (FG signal).
[BD-05TF100W Micro Liquid Pump Specification (PDF)]
It is designed for clean liquid transfer such as ink, water-based reagents, and general fluids. For corrosive or special media, PPS, PTFE, and FFKM material options are available.
Yes. The 110 mL/min flow and oil-free diaphragm design support stable ink delivery, helping maintain consistent flow in compact printing systems.
Yes. The standard version uses a brushed motor, while a brushless option(BD-05TF100WB) is available for longer life and lower maintenance in continuous-duty applications.
Yes. Voltage, materials, connectors, tubing, and wiring can be customized. Pre-assembled solutions are also available to simplify system integration.
Yes. Small quantities are supported for testing and evaluation, with flexible scaling for OEM production.
If you are developing digital printing systems, analytical instruments, or automated liquid handling equipment, BODENFLO provides reliable micro pump solutions tailored for OEM integration.
