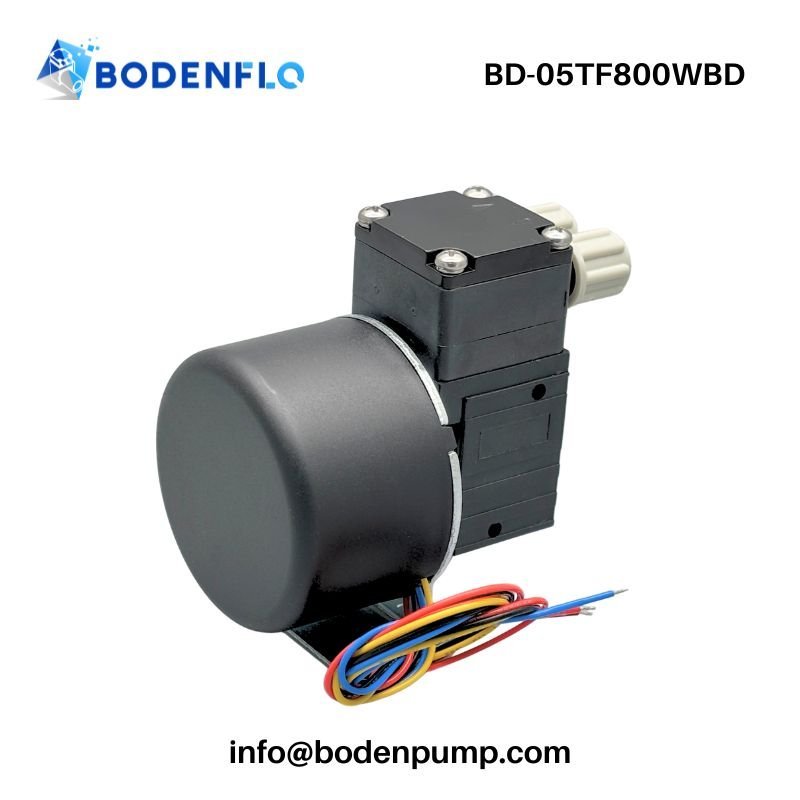

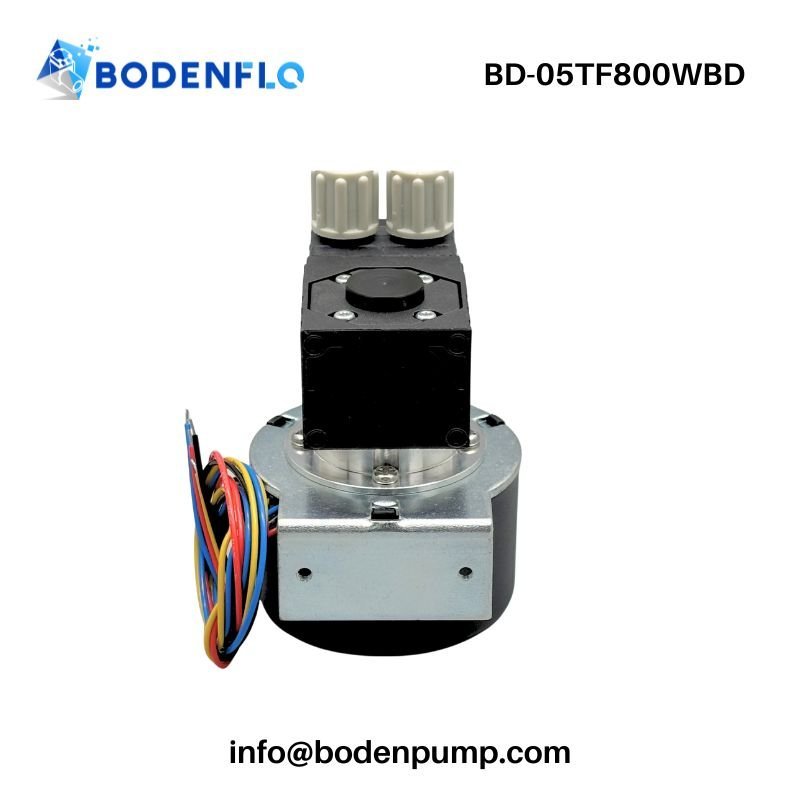

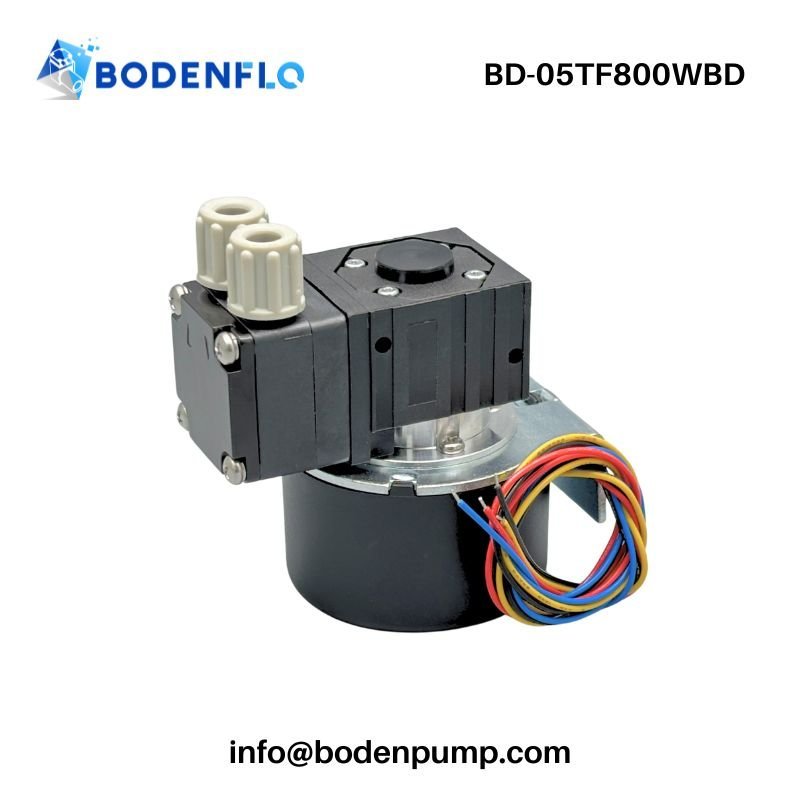

12V Liquid Pump 800mL/min 290g Diaphragm Pump 24V BD-05TF800WBD BODENFLO

Overview of BD-05TF800WBD 12V Liquid Pump

Key Features of BD-05TF800WBD Diaphragm Pump 24V

• 800 mL/min Water Flow – Supports faster liquid transfer in ink circulation, cleaning, and fluid handling systems.
• Brushless DC Motor – Reduces maintenance needs and supports long-cycle OEM equipment operation.
• PWM Speed Control – Allows flow adjustment according to system demand and working conditions.
• Gas-Liquid Compatible Design – Enables one pump platform to support both liquid transfer and gas movement.
• Self-Priming Capability – Helps simplify startup in compact liquid handling equipment.
• Dry-Running Capability – Adds protection during intermittent operation or temporary fluid interruption.
• PPS Pump Head – Provides improved chemical compatibility for common OEM fluid applications.

Technical Specifications of BD-05TF800WBD Micro Water Pump

The specifications below are organized to help you assess whether BD-05TF800WBD is suitable for your equipment.
Review flow, pressure, vacuum level, electrical data, operating limits, and size to confirm technical compatibility before sample testing.

Basic Information
Model	BD-05TF800WBD
Type	Micro Water Pump
Structure	Diaphragm Pump
Voltage Range	12 V / 24 V
Liquid Performance
Free Water Flow	800 mL/min (0.211 gpm)
Max Water Pressure	1 bar (14.5 psi / 1000 mbar / 0.1 MPa)
Water Pressure Head	>15 m
Water Suction Head	5 m
Gas Performance
Free Gas Flow	3.5 L/min (0.124 cfm)
Max Gas Pressure	+80 kPa (11.6 psi / 800 mbar)
Max Gas Vacuum	-50 kPa (-14.8 in.Hg / -500 mbar / -375 mmHg)
Electrical & Motor Data
Motor Type	DC Brushless Motor
Load Current	0.6 A / 0.35 A
Noise	55 dB
Lifetime	10000 h
Mechanical Data

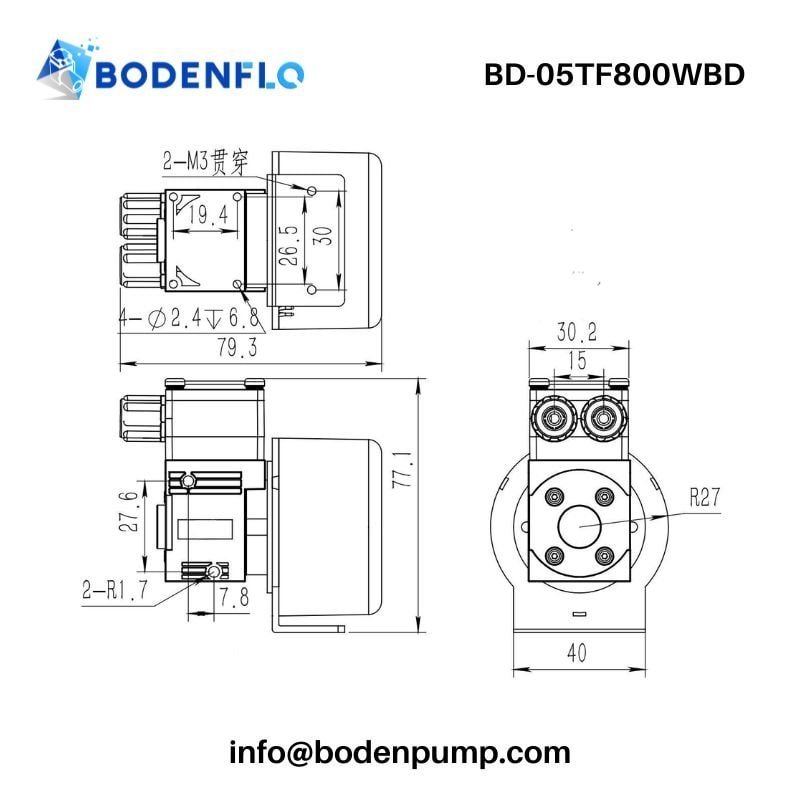

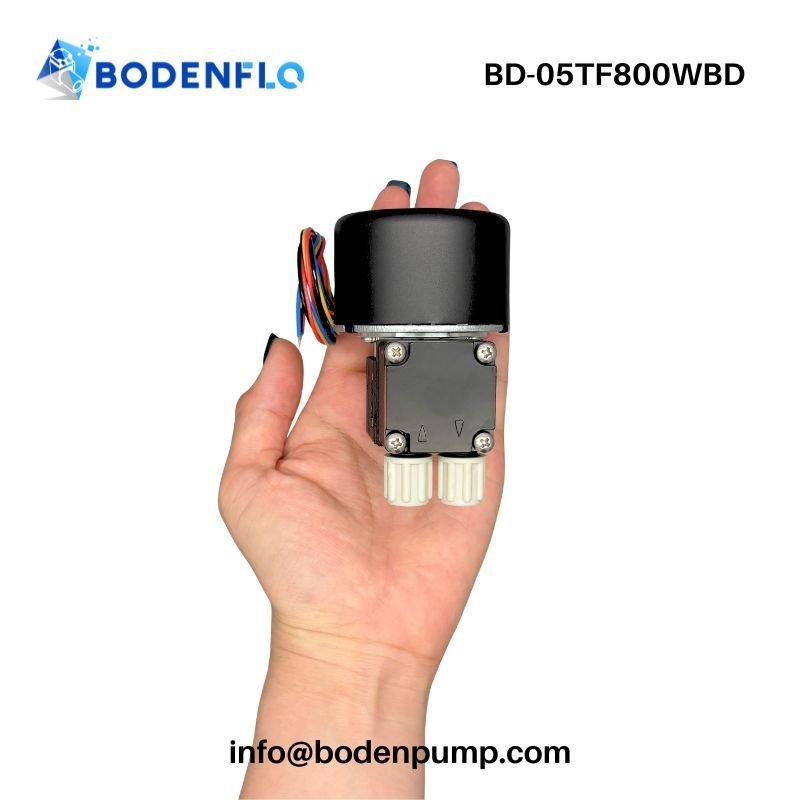

Dimensions	79 × R27 × 77 mm (3.11 × R1.06 × 3.03 in)
Weight	290 g
Recommended Tubing Size	ID4 mm / OD6 mm
Operating Conditions
Ambient Temperature	5°C to 40°C
Fluid Temperature	10°C to 60°C

Testing Conditions & Measurement Standards

Water Flow Measurement:
Water flow is measured using a high-precision miniature electromagnetic flowmeter (electromagnetic induction volumetric flowmeter).
The test setup includes approximately 1 m inlet and outlet tubing to simulate practical installation conditions.

Noise Measurement:
Noise is measured at a distance of 1 m from the pump during normal operation under standard working conditions.

Lifetime Testing:
Lifetime is evaluated under continuous 24-hour no-load operation, with both inlet and outlet open to atmosphere (ambient pressure conditions).

Standard Materials & Reliability

For most OEM applications, the standard material configuration provides a practical balance of compatibility, durability, and stable performance.

Component	Material / Feature
Pump Head	PPS
Diaphragm	EPDM
Valve	EPDM

If your application involves more aggressive media or stricter durability requirements, upgraded material options can be considered. Optional configurations such as a PTFE diaphragm and FFKM valves are available for applications involving corrosive liquids, chemical reagents, or enhanced chemical resistance requirements.

OEM Customization Options

If your system requires specific electrical configurations, material compatibility, or installation interfaces, selected items can be customized to better match your application.

Item	Customization Options
Voltage	12 V / 24 V options; project-based adjustment available
Motor Type	Brushless DC motor with duty-cycle tuning support
Materials	PPS, EPDM, PTFE, or FFKM options for media compatibility
Wiring	Custom cable length and wire definition
Connector	Open leads, plug connectors, or OEM interface
Tubing	ID4 mm / OD6 mm standard; custom tubing available
Branding	Private label or customer-specific marking
Mounting	M3 base mounting or custom bracket support
Control Signal	0–5 V PWM speed control and FG output
Pressure / Flow Tuning	Adjusted according to application requirements

BODENFLO can also pre-configure connectors, tubing, and mounting structures with the pump.
This helps reduce assembly work and makes OEM system integration more efficient.

Typical Applications of BD-05TF800WBD Liquid Water Pump

If your application requires higher liquid flow in compact OEM equipment, the following examples can help you evaluate whether this model is a suitable fit.

• CIJ Printer Ink Circulation – This pump supports ink movement where higher flow is needed for circulation or supply loops.
• Digital Printing Equipment – It provides liquid transfer for ink delivery, flushing, and maintenance fluid movement.
• Biochemical Analyzers – This pump moves reagents or samples through compact analytical fluid paths with brushless motor control.
• Microplate Washing Equipment – It supports dispensing and waste liquid removal during automated washing cycles.
• Liquid Sampling Devices – This pump helps transfer sample liquids in compact sampling and testing equipment.
• Cleaning & Disinfection Devices – It moves cleaning liquid through spray, flushing, or circulation modules.

Why Choose BODENFLO for Your OEM Pump Project

In many OEM projects, the challenge is not only finding a pump with suitable parameters, but also reducing selection, integration, and long-term supply risk. BODENFLO supports customers with pump selection, customization, testing support, and flexible OEM cooperation.

• Application-oriented pump selection support
  We help review flow, pressure, voltage, medium, and installation requirements so the pump choice is based on actual working conditions.
• Material solutions for demanding media
  For chemical liquids or corrosive gases, we can suggest wetted materials such as PPS, PTFE, and FFKM to improve compatibility.
• Integrated solutions for easier installation
  Connectors, tubing, and mounting brackets can be pre-configured to reduce assembly work and simplify OEM integration.
• Economical alternative to well-known pump brands
  For cost-sensitive OEM projects, BODENFLO can provide a more flexible pump solution while still supporting customization and project-level communication.
• Support from sample evaluation to production
  We assist with early testing, configuration confirmation, and long-term supply planning to help customers move from prototype to batch production.

Customer Feedback from OEM Applications

Real application feedback helps potential buyers better understand how BD-05TF800WBD performs beyond the datasheet.

Finland | Printing System Developer
Application: Ink circulation system
Feedback: The higher liquid flow helped improve circulation efficiency in our digital printing platform.

Germany | Laboratory Equipment Engineer
Application: Biochemical analyzer fluid handling system
Feedback: The brushless design and compact structure made it suitable for long-cycle reagent transfer.

South Korea | Fluid System Engineer
Application: Liquid sampling device
Feedback: The pump provided a practical balance of flow capacity, size, and gas-liquid compatibility.

Installation & Usage Notes

Proper installation helps ensure consistent performance and extended service life in OEM fluid handling equipment.

Inlet Filtration
Install a ≤30 μm filter at the pump inlet to prevent particle ingress and protect internal pump components.

Bottom Mounting

• 2 × M3 threaded mounting holes on the pump base
• Recommended for secure installation and vibration reduction
• Suitable for direct attachment to equipment frames or mounting plates

Wiring Definition

• Red Wire (+): Power Positive
• Black Wire (–): Power Negative
• Blue Wire: 0–5 V PWM Speed Control Input
• Yellow Wire: FG Signal Output (Speed Feedback)

Downloads – Datasheet

[BD-05TF800WBD 12V Liquid Pump Datasheet (PDF)]

FAQ – BD-05TF800WBD 12V Liquid Pump

Q1: Why is the flow of my 12V liquid pump lower than expected?

Lower liquid flow is usually caused by clogged inlet filters, excessive tubing length, air leakage, or high system resistance. For the BD-05TF800WBD 12V liquid pump, using the recommended ID4 mm / OD6 mm tubing and maintaining a clean inlet can help achieve stable flow performance.

Q2: Can this diaphragm water pump run continuously?

Yes. The BD-05TF800WBD diaphragm water pump uses a brushless DC motor designed for long service life and continuous OEM operation. For maximum reliability, ensure proper ventilation, recommended operating temperatures, and clean working media.

Q3: Can this micro water pump transfer both liquid and gas?

Yes. This micro water pump features a gas-liquid compatible diaphragm design. It can transfer liquids while also providing gas flow up to 3.5 L/min, 80 kPa positive pressure, and -50 kPa vacuum for suitable OEM applications.

Q4: Is this 24V diaphragm pump suitable for CIJ printers and analytical instruments?

Yes. The 24V diaphragm pump is widely used in CIJ printing systems, biochemical analyzers, liquid sampling devices, cleaning equipment, and other compact OEM fluid handling applications requiring PWM speed control and brushless operation.

Q5: Which diaphragm pump should I choose for higher pressure or higher flow?

If your application requires higher liquid flow, the BD-05TF1500WB provides up to 1500 mL/min. If your system requires higher liquid pressure, BODENFLO also offers the BD-05TF650WBD, which delivers up to 5 bar water pressure for pressure-assisted fluid transfer applications.
