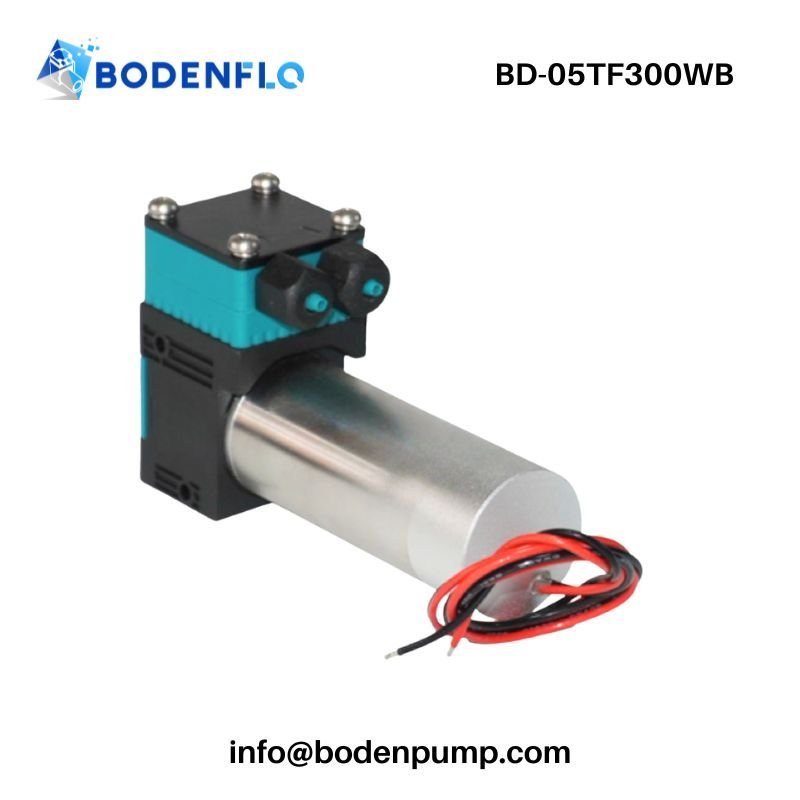

The BD-05TF300WB micro diaphragm pump is a brushless waste ink pump specifically developed for OEM digital printing systems, laboratory automation, and analytical fluid control modules. Delivering 300 mL/min stable liquid flow, this model is optimized for waste ink discharge, continuous drainage, and precision liquid transfer, helping engineering teams improve long-duty reliability, reduce maintenance frequency, and ensure stable equipment performance.
| Voltage | 6 V / 12 V / 24 V DC |
|---|---|
| Max Flow | 300 mL/min (water), 4 L/min (gas) |
| Max Vacuum | –60 kPa |
| Max Pressure | 2.5 bar (water), 1 bar (gas) |
| Motor | DC Brushless Motor |
| Max Power | 6 W |
| Weight | 240 g |

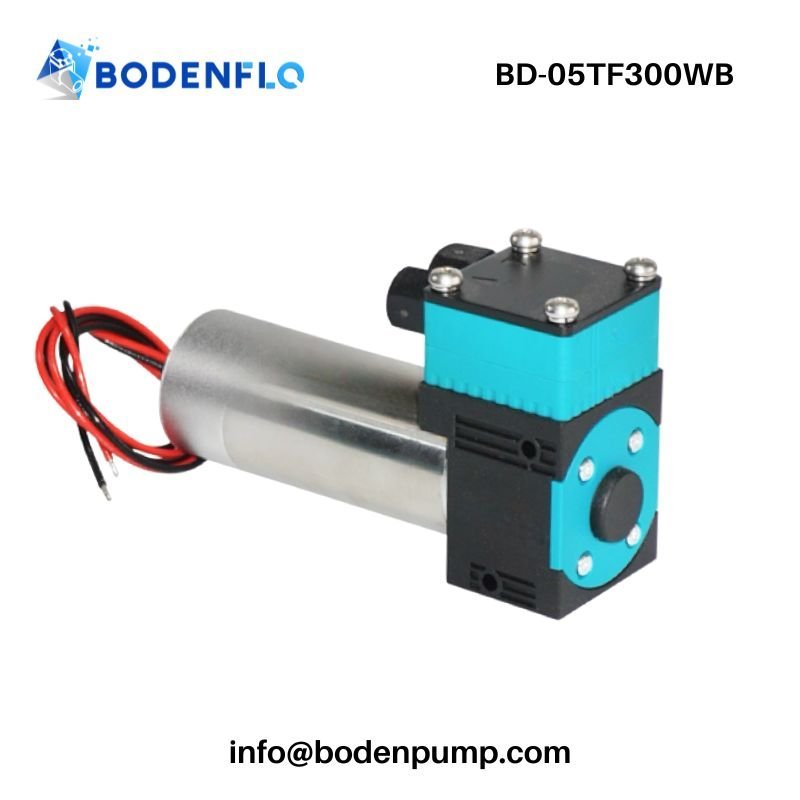

The BD-05TF300WB is a micro diaphragm waste ink pump engineered for stable waste ink evacuation, drainage, and liquid circulation in digital printing equipment and compact OEM fluid systems.Its oil-free diaphragm structure ensures clean fluid transfer without lubrication contamination, while the self-priming design enables smooth startup even in complex tubing layouts.
For systems such as wide-format printers, coding machines, automated cleaning modules, and laboratory devices, the BD-05TF300WB offers higher flow performance than low-flow models, making it ideal for applications where fast waste liquid removal is critical.
To help you judge whether BD-05TF300WBis suitable for your system, we’ve organized the key specifications below.
Pay close attention to flow, pressure, power, and size when checking fit for your application.
| Basic Information | |
|---|---|
| Model | BD-05TF300WB |
| Type | Small Liquid Pump |
| Structure | Diaphragm reciprocating mechanism |
| Voltage Range | 6V / 12V / 24V DC |
| Liquid Performance | |
| Free Water Flow | 300 mL/min (0.079 gpm) |
| Max Water Pressure | 2.5 bar (36.3 psi / 2500 mbar / 0.25 MPa) |
| Water Pressure Head | >15 m |
| Water Suction Head | 7 m |
| Gas Performance | |
| Free Gas Flow | 4 L/min (0.141 cfm) |
| Max Gas Pressure | 1 bar (14.5 psi / 1000 mbar / 0.1 MPa) |
| Max Gas Vacuum | -60 kPa (-17.7 inHg / -600 mbar / -450 mmHg) |
| Electrical & Motor Data | |
| Motor Type | DC Brushless Motor |
| Max Power | 6 W |
| Noise | 55 dB |
| Lifetime | 10,000 H |
| Mechanical Data | |

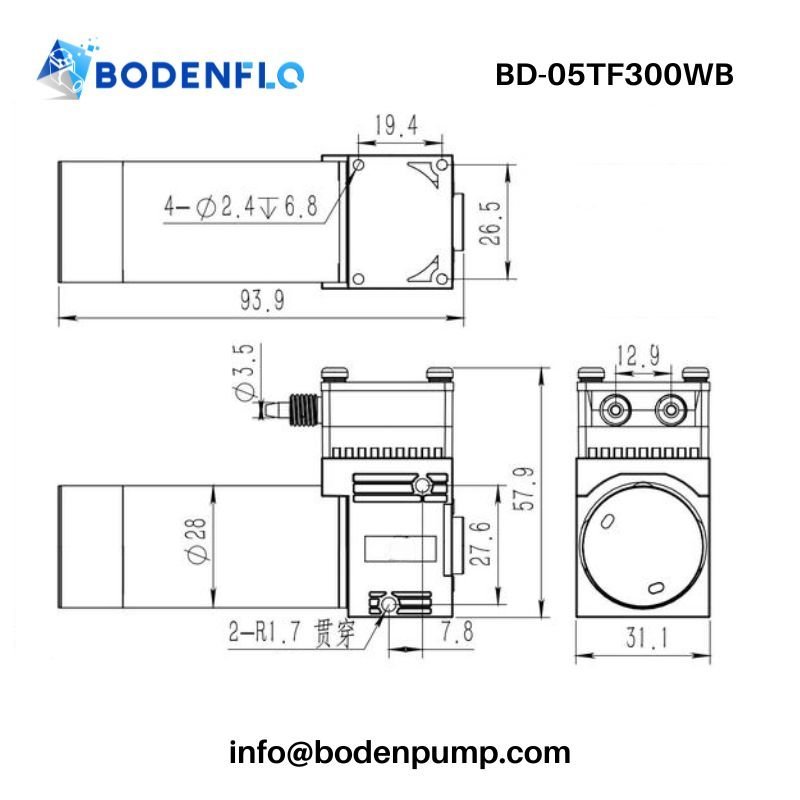

| Dimensions | 93.9 × 31.1 × 57.9 mm (3.70 × 1.22 × 2.28 in) |
| Weight | 240 g (0.53 lb) |
| Recommended Tubing Size | ID 3 mm, OD 5 mm |
| Operating Conditions | |
| Ambient Temperature | 5°C to 40°C |
| Fluid Temperature | 10°C to 60°C |
Water Flow Measurement:
Water flow is measured using a high-precision miniature electromagnetic flowmeter (electromagnetic induction volumetric flowmeter).
The test setup includes approximately 1 m inlet and outlet tubing to simulate practical installation conditions.
Noise Measurement:
Noise is measured at a distance of 1 m from the pump during normal operation under standard working conditions.
Lifetime Testing:
Lifetime is evaluated under continuous 24-hour no-load operation, with both inlet and outlet open to atmosphere (ambient pressure conditions).
The standard configuration is designed to balance chemical compatibility, stable operation, and long service life in typical OEM applications.
| Component | Material / Feature |
| Pump Head | PA66 engineering plastic |
| Diaphragm | EPDM |
| Valve | EPDM |
For chemical-resistant or demanding applications, PPS, PTFE, and FFPM materials are available for OEM customization.
If the standard configuration does not fully match your medium or service life target, additional material options are available for evaluation.
For OEM projects with specific requirements in voltage, materials, or integration, customization options are available to support your design.
| Customization Item | Available Options |
| Voltage | 6V / 12V / 24V |
| Motor Type | Brushless with PWM & FG signal |
| Materials | PPS head / PTFE diaphragm / FFPM valve |
| Wiring | Custom cable harness |
| Connector | Application-specific connector |
| Branding | OEM label / private logo |
BODENFLO also supports integrated customization, including connectors, tubing, and mounting brackets, allowing the pump to be delivered as a ready-to-install module.
This reduces assembly time, simplifies system integration, and helps OEM customers accelerate product development.
Designed as a high-efficiency waste ink pump, it ensures stable waste ink evacuation and prevents backflow accumulation, helping maintain printhead cleanliness and print quality.
Suitable for continuous waste ink drainage modules, reducing overflow alarms and minimizing nozzle contamination risk.
Supports automated liquid discharge, cleaning cycles, and drainage control.
Used for waste liquid transfer, reagent drainage, and internal flushing systems.
Suitable for automated drainage and cleaning liquid transfer systems.
Selecting a micro pump is not only about matching parameters—it is about ensuring the pump performs reliably within your actual system and production environment.
Application: Automated cleaning liquid discharge
Feedback: Compact size and smooth brushless operation simplified OEM integration.
Application: Waste ink drainage module
Feedback: Higher flow rate significantly improved drainage efficiency and reduced maintenance cycles.
Application: Waste liquid discharge system
Feedback: Excellent reliability for long-life equipment platforms.
Application: Waste ink circulation module
Feedback: Stable continuous-duty performance during long printing cycles.
The pump provides a stable 300 mL/min flow with low pulsation, helping maintain continuous ink removal and reducing the risk of backflow or overflow in the system.
Yes. Its compact structure and integrated brushless motor make it easy to install in space-limited systems such as printers, analyzers, and cleaning devices.
The brushless motor design supports up to 10,000 hours of operation, reducing wear and minimizing maintenance requirements in continuous-duty applications.
Samples and bulk orders are both supported. Standard payment methods include PayPal, credit card, and T/T bank transfer.
Yes. In addition to the 300 mL/min model, lower flow options such as 110 mL/min, 200 mL/min and 280ml/min are available, allowing you to choose based on your system’s flow and pressure requirements.
