The BD-05TVB dual-head micro diaphragm pump delivers clean, oil-free vacuum or airflow by driving twin diaphragms via a brushless DC motor. Ideal for compact medical and analytical equipment requiring stable performance and long service life.
| Voltage | 12/24V |
|---|---|
| Max Flow | 7.2L/min (parallel) |
| Max Vacuum | –70 kPa (parallel) |
| Max Pressure | 1~1.5Bar |
| Motor | Brushless motor |
| Max Power | 8 W |
| Weight | 188g |
Miniature diaphragm pumps use a DC motor to drive a flexible diaphragm via an eccentric cam. As the diaphragm moves, it draws in and expels gas in an oil-free, controlled manner to generate vacuum or pressure. The BD-05TVB’s dual-head design allows parallel operation for higher flow or series operation for higher vacuum—offering engineers flexible performance options.

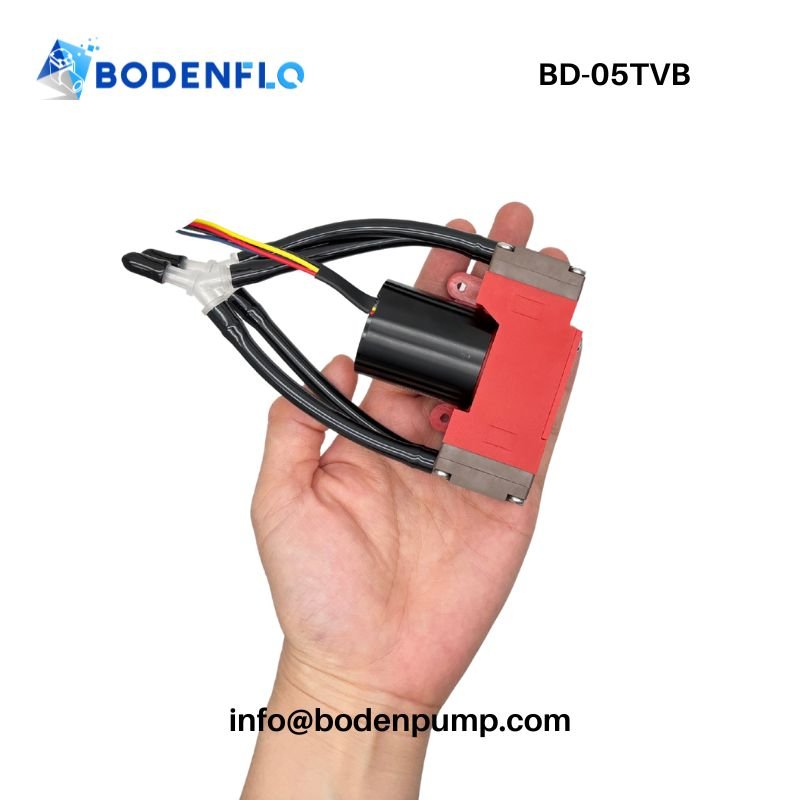

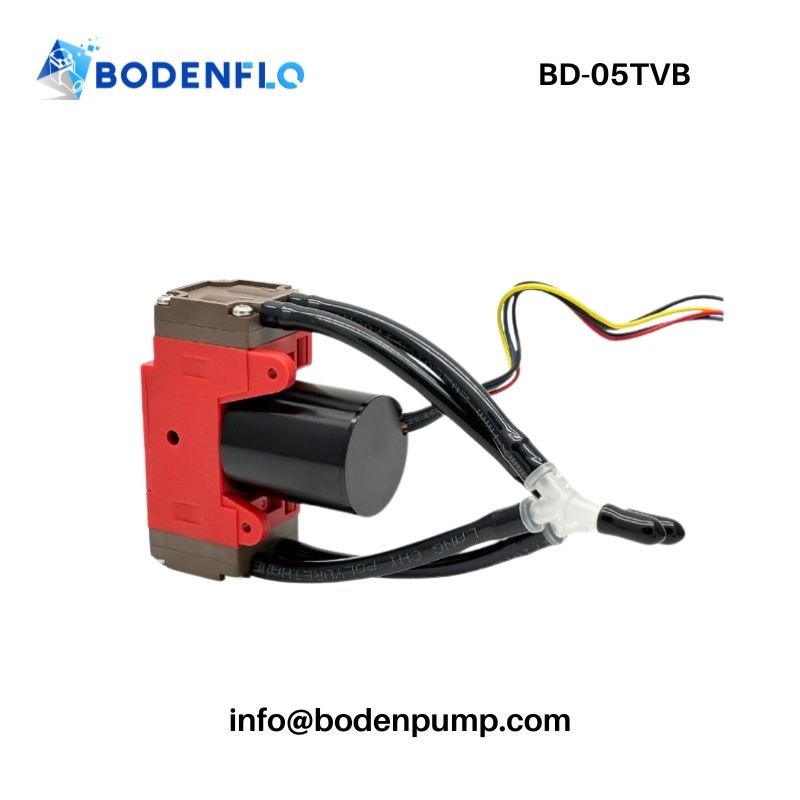

The BODENFLO BD-05TVB is a compact dual-head mini diaphragm pump driven by a brushless DC motor, offering stable flow, extended lifespan, and low noise operation. Engineered for high-vacuum, moderate flow, and low power consumption, it's an ideal solution for applications requiring precision performance in tight spaces.
Whether configured in parallel mode for up to 7.2 L/min at -70 kPa, or series mode for reaching -90 kPa vacuum at 4.6 L/min, this pump supports critical functions in medical rehabilitation, negative pressure wound therapy, vacuum sampling, and laboratory devices.
✓ Dual-head configuration – adjustable for high vacuum or high flow
✓ Clean, oil-free air path – ideal for sensitive gas sampling applications
✓ Long service life: brushless motor rated 8000–10,000 hours

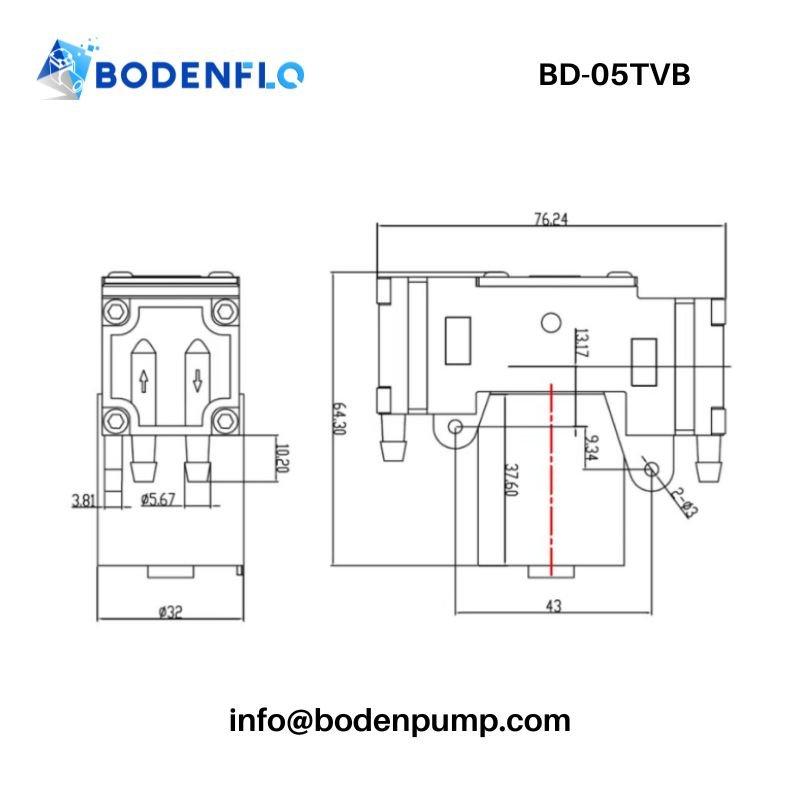

✓ Compact dimensions: only 76.2 × 32 × 64.3 mm
✓ IP54-rated for reliable performance in demanding environments
✓ High-performance sealing – low leakage rate, stable vacuum
✓ Optional FKM diaphragm for extended chemical compatibility
✓ Corrosion-resistant PPS head, nylon body for lightweight durability
✓ Pollution-free sampling, suitable for medical and lab use
| Parameter | Value |
|---|---|
| Model | BD-05TVB |
| Voltage Range | 12 V / 24 V |

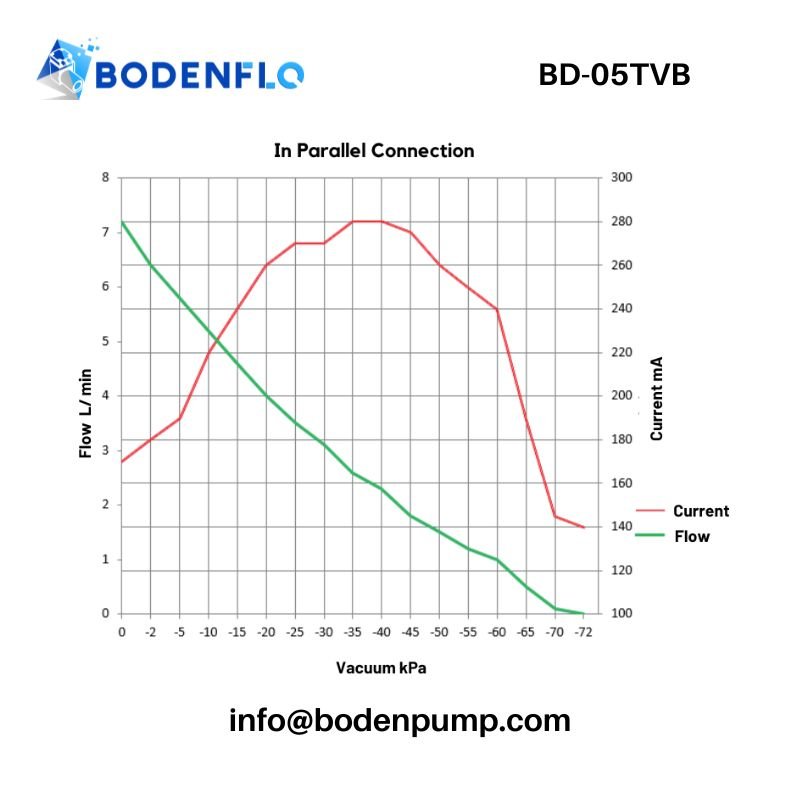

| Parallel Mode | 7.2 L/min, -70 kPa |

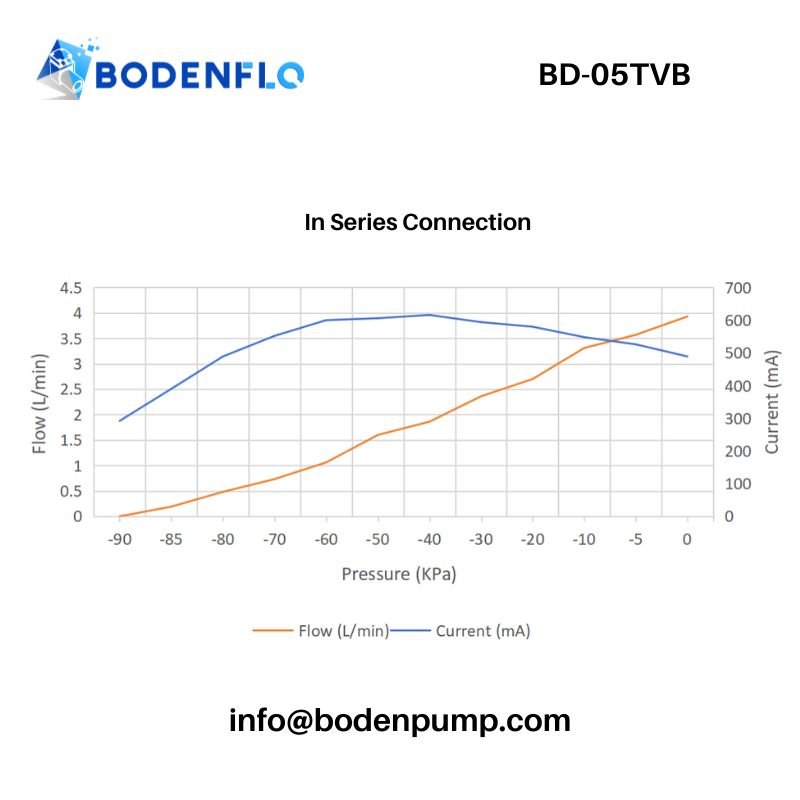

| Series Mode | 4.6 L/min, -90 kPa |
| Max Positive Pressure | 1.0 – 1.5 bar |
| Motor Type | Brushless DC |
| Max Power Consumption | 8 W |
| IP Rating | IP54 |
| Storage Temperature | -40 ℃ ~ 60 ℃ |
| Operating Temp. | -20 ℃ ~ 45 ℃ |
| Medium Temp. | -10 ℃ ~ 45 ℃ |
| Pump Head Material | PPS (Polyphenylene Sulfide) |
| Diaphragm/Valve | EPDM (Optional FKM) |
| Pump Body | Nylon |
| Dimensions | 76.2 × 32 × 64.3 mm |
| Weight | 188 g |
| Component | Material / Features |
|---|---|
| Pump Head | PPS – Excellent thermal and chemical resistance |
| Diaphragm/Valve | EPDM standard, FKM optional – anti-corrosive |
| Pump Body | Nylon – Durable, impact-resistant |
| Sealing | Professional-grade low leakage |
| Lifetime | >8000–10,000 hours (brushless motor) |
The BD-05TVB brushless dual-head diaphragm pump is designed for high-vacuum and stable flow applications across multiple industries:
Negative Pressure Wound Therapy (NPWT) & Lymphatic Drainage – Widely used in Finnish rehabilitation devices, where stable vacuum and quiet performance improve patient comfort and accelerate healing.
Vacuum Sampling & Air Analysis – Provides oil-free and contamination-free gas sampling in environmental monitoring and industrial analyzers.
Laboratory Equipment – Supports suction, degassing, and vacuum generation for compact analytical systems.
Medical Rehabilitation Devices – Powers negative pressure circulation therapy and lymphatic therapy instruments.
Portable Detection Devices – Compact design fits handheld VOC analyzers, gas detectors, and leak monitoring tools.
| Customization Aspect | Options / Notes |
|---|---|
| Diaphragm Material | EPDM (standard) / FKM (for corrosive media) |
| Electrical Connector | Custom cable length / terminal type |
| Pump Label & Branding | Custom labeling for OEM clients |
| Pump Configuration | Dual-head (parallel or series); consult for best setup |
| Operating Voltage | 12 V or 24 V options available for flexible integration |
Choosing BODENFLO means more than buying a pump—you gain a long-term OEM partner:
Proven Expertise – 15+ years specializing in diaphragm, piston, vacuum, and compressor pumps with 300+ standard models.
Certified Quality – ISO9001 factory with CE/RoHS compliance and rigorous QC testing.
Custom Solutions – Flexible OEM support: EPDM/FKM/PTFE diaphragms, connectors, dual-head or single-head configurations.
Fast Engineering – Prototyping within days, with integration support tailored to your system.
Global Trust – Trusted by OEMs in Europe, USA, South Korea, and Brazil for medical, lab, and industrial equipment.
Competitive Value – Equivalent to leading EU/US brands, but with cost-effective pricing for OEM competitiveness.
“We integrated the BD-05TVB into our negative pressure lymphatic therapy system in Finland. The dual-head design allowed us to achieve stable suction and reliable performance, while keeping the device compact and quiet.”
— Medical Device Engineer, Finland
“The balance of flow and vacuum makes this pump very adaptable for our NPWT applications.” – Project Manager, UK
“Stable long-term operation with zero leakage even after thousands of hours. Very reliable for our gas detection systems.” – Lab Equipment Engineer, USA
For quick integration, the BD-05TVB-S is designed with simple 4-wire connection:
[BD-05TVB Brushless Diaphragm Pump Specification Download Datasheet (PDF)]
Q1: What are the advantages of the BD-05TVB diaphragm pump?
The BD-05TVB is a brushless, long-life version with dual-head design, making it a reliable replacement for popular EU/US models. Brushless options include the dual-head BD-05TVB and single-head BD-05TVB-S. Brushed versions are also available: BD-05T057.2L (dual-head) and BD-05T054.6L (single-head).
Q2: Can the BD-05TVB run continuously?
Yes. It fully supports 24/7 continuous operation, making it ideal for medical equipment and environmental monitoring applications.
Q3: Is this pump designed for air or liquid?
This is a diaphragm air pump, capable of generating vacuum, pressure, and gas circulation. It can handle small amounts of moisture but is not suitable for direct liquid transfer. For liquid circulation, we recommend our dedicated micro liquid pump series.
Q4: What is the lead time for samples?
Sample orders are usually shipped within 1–3 days via international couriers such as DHL or FedEx. Bulk orders can be shipped by sea, air, or railway depending on customer preference.
Q5: What certifications does BODENFLO provide?
Our pumps comply with CE and RoHS standards, and our factory is ISO9001 certified. We can provide complete inspection reports and conformity certificates to meet international regulatory requirements.
