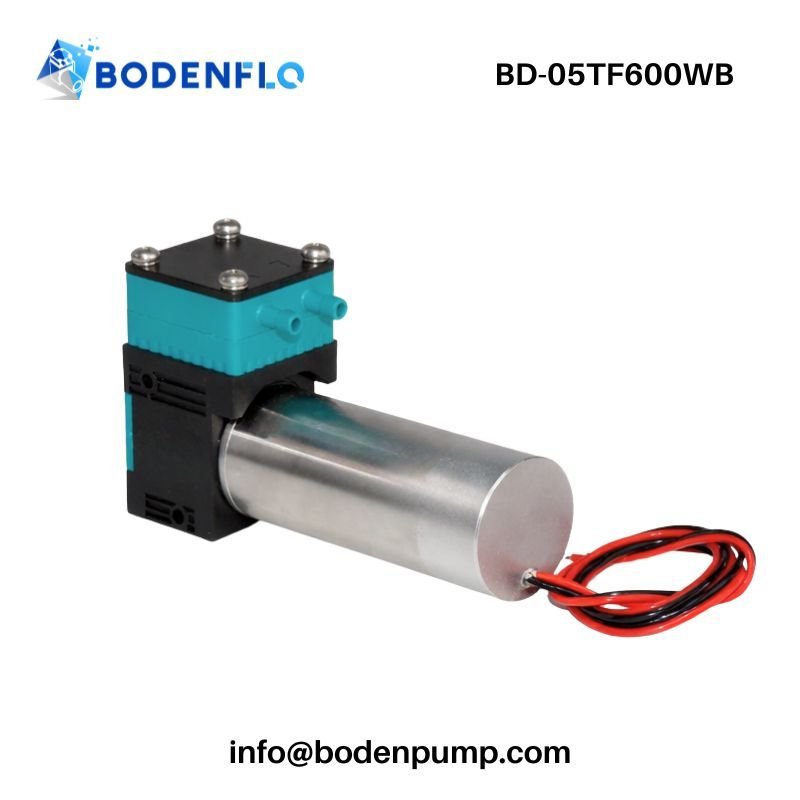

The BD-05TF600WB is a compact liquid diaphragm pump designed for ink circulation in digital printing and analytical systems, delivering 600 mL/min flow with a 24V configuration, supporting clean oil-free transfer, self-priming operation, and flexible OEM integration in space-constrained equipment.
| Voltage | 6 V / 12 V / 24 V DC |
|---|---|
| Max Flow | 600 mL/min (water), 4 L/min (gas) |
| Max Vacuum | –60 kPa |
| Max Pressure | 2.5 bar (water), 1 bar (gas) |
| Motor | DC Brushless Motor |
| Max Power | 7 W |
| Weight | 240 g |
The BD-05TF600WB is a small liquid pump developed for OEM integration in inkjet systems and compact analyzers, where controlled fluid transfer and consistent output are required. Its diaphragm structure enables clean, oil-free operation, making it suitable for handling inks, reagents, and light chemical media in precision equipment.

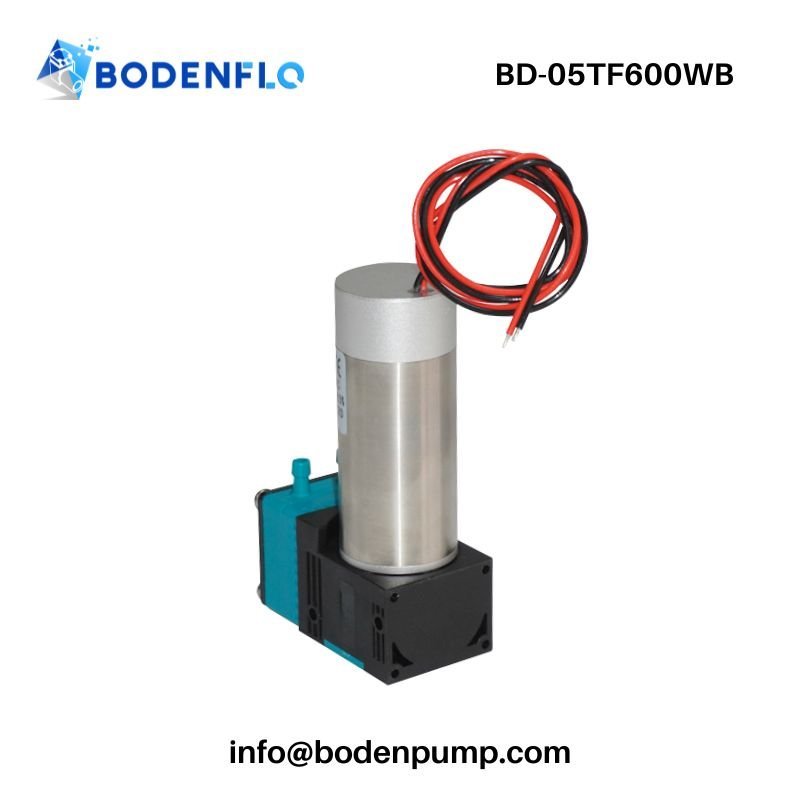

Equipped with a brushless motor, this pump supports continuous-duty operation with reduced wear and lower maintenance requirements. The compact design allows flexible installation in space-limited systems, while its gas-liquid compatibility provides additional flexibility for applications involving both liquid transfer and air-assisted processes.
| Basic Information | |
| Model | BD-05TF600WB |
| Type | Small Liquid Pump |
| Structure | Diaphragm Pump |
| Voltage Range | 6 V / 12 V / 24 V DC |
| Liquid Performance | |
| Free Water Flow | 600 mL/min (0.158 gpm) |
| Max Water Pressure | 2.5 bar (36.3 psi / 2500 mbar / 0.25 MPa) |
| Water Pressure Head | >15 m |
| Water Suction Head | 7 m |
| Gas Performance | |
| Free Gas Flow | 4 L/min (0.141 cfm) |
| Max Gas Pressure | 1 bar (14.5 psi / 1000 mbar / 0.1 MPa) |
| Max Gas Vacuum | -60 kPa (-17.7 in.Hg / -600 mbar / -450 mmHg) |
| Electrical & Motor Data | |
| Motor Type | DC Brushless Motor |
| Max Power | 7 W |
| Noise | 55 dB |
| Lifetime | 10000 h |
| Mechanical Data | |
| Dimensions | 94 × 31.1 × 58.1 mm (3.70 × 1.22 × 2.29 in) |
| Weight | 240 g(0.53 lb) |
| Recommended Tubing Size | ID 4 mm, OD 6 mm |
| Operating Conditions | |
| Ambient Temperature | 5°C to 40°C |
| Fluid Temperature | 10°C to 60°C |
Water Flow Measurement:
Water flow is measured using a high-precision miniature electromagnetic flowmeter (electromagnetic induction volumetric flowmeter).
The test setup includes approximately 1 m inlet and outlet tubing to simulate practical installation conditions.
Noise Measurement:
Noise is measured at a distance of 1 m from the pump during normal operation under standard working conditions.
Lifetime Testing:
Lifetime is evaluated under continuous 24-hour no-load operation, with both inlet and outlet open to atmosphere (ambient pressure conditions).
For most OEM applications, the standard material configuration provides a practical balance of compatibility, durability, and stable performance.
| Component | Material / Feature |
| Pump Head | PA66 |
| Diaphragm | EPDM |
| Valve | EPDM |
| Wetted Parts | PA + EPDM + EPDM |
If your application involves more aggressive media or stricter durability requirements, upgraded material options can be considered.
To make system integration easier, key parameters such as voltage, materials, and interfaces can be customized based on your application.
| Item | Customization Options |
|---|---|
| Voltage | 6 V / 12 V / 24 V DC selectable to match different system power architectures |
| Motor Type | Brushless (long life) or brushed (cost-optimized) options depending on project stage |
| Materials | Standard PA66 + EPDM, with optional PPS, PTFE, and FFPM for enhanced chemical resistance |
| Wiring | Custom wire length, color, and harness structure for simplified system connection |
| Connector | Bare wire, terminal, or waterproof connector to match electrical interface requirements |
| Tubing | ID 4 mm / OD 6 mm standard, with optional size adjustment for system compatibility |
| Mounting | Customized mounting brackets or hole patterns to fit different equipment layouts |
| Control Signal | PWM or analog control available for system-level flow or speed adjustment |
| Performance Tuning | Flow and pressure can be adjusted within a defined range to match application requirements |
| Branding | OEM labeling and private branding for end-product consistency |
BODENFLO also supports integrated customization, including connectors, tubing, and mounting brackets, allowing the pump to be delivered as a ready-to-install module.
This reduces assembly time, simplifies system integration, and helps OEM customers accelerate product development.
This model is commonly used in OEM systems where controlled liquid transfer, circulation, and compact integration are required. The following applications help evaluate whether the pump function matches your system design requirements.
In OEM equipment development, pump selection is only one part of the challenge. Ensuring compatibility with system design, media conditions, and long-term production stability is equally important. BODENFLO supports customers with both product configuration and engineering-level integration guidance to reduce development uncertainty.
The following feedback reflects how customers use BD-05TF600WB in real OEM ink circulation and liquid handling systems, and what they focus on during actual integration and long-term operation.
Application: Ink circulation system
Feedback: The flow output remains consistent during continuous operation, and it integrates smoothly into our ink circulation module layout.
Application: Chemical analysis equipment
Feedback: The brushless structure supports long operating cycles, and maintenance requirements are significantly reduced in our analyzer platform.
Application: Liquid sampling device
Feedback: It was easier to integrate than previous pumps, especially in compact layouts where installation space is limited.

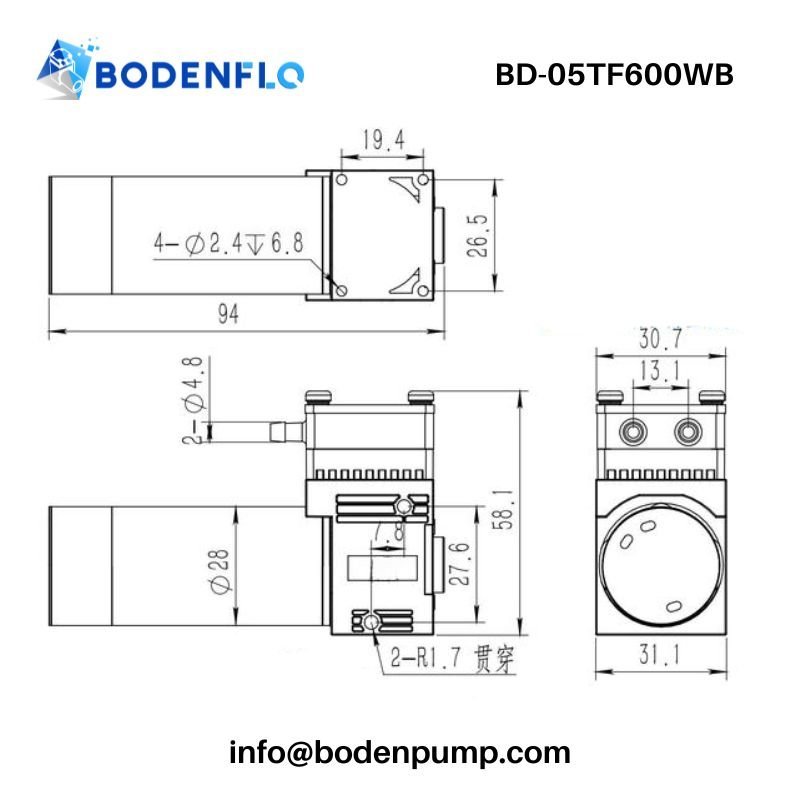

1.Install a filter with a minimum filtration accuracy of ≤30 μm at the pump inlet to prevent particle ingress
2.Bottom mounting: 4xΦ2.4 mm holes (depth 6.8 mm), recommended to use M3 self-tapping screws for through-board fixation
3.Side mounting: 2xR1.7 mm through holes, use M3 screws for through-board installation and secure fixation
4.Wiring Definition: Red wire (+) positive, black wire (–) negative
[BD-05TF600WB Micro Liquid Pump Specification (PDF)]
It is designed for clean liquid transfer such as ink, water-based reagents, and general fluids. For corrosive or special media, PPS, PTFE, and FFPM material options are available.
Yes. The 600 mL/min flow and oil-free diaphragm design support stable ink delivery, helping maintain consistent flow in compact printing systems.
Yes. The standard version uses a brushed motor, while a brush option(BD-05TF600W) is available for longer life and lower maintenance in continuous-duty applications.
Yes. Voltage, materials, connectors, tubing, and wiring can be customized. Pre-assembled solutions are also available to simplify system integration.
Yes. Small quantities are supported for testing and evaluation, with flexible scaling for OEM production.
If you are developing ink circulation systems, analytical instruments, or automated liquid handling equipment, BODENFLO provides OEM-oriented micro diaphragm pump solutions designed to support system integration, validation, and long-term production.
