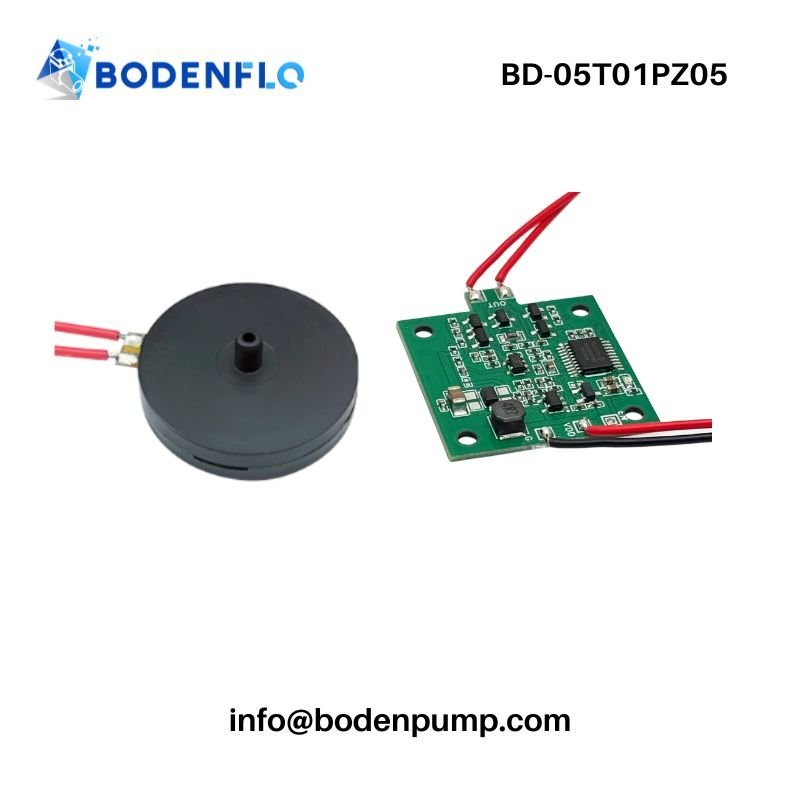

Piezoelectric Pump Ultra Compact Micro Piezo Air Pump BD-05T01PZ05 BODENFLO

Overview of BD-05T01PZ05

The BODENFLO BD-05T01PZ05 is a micro piezo air pump engineered for ultra-compact systems requiring quiet, low-power airflow generation. By utilizing a piezoelectric element to generate high-frequency ultrasonic vibrations, the pump produces consistent airflow without traditional motor-driven mechanisms.

This solid-state design eliminates friction-heavy components, significantly reducing noise and mechanical wear while maintaining stable airflow performance. The result is a highly reliable, energy-efficient solution for portable and embedded OEM applications.

Features – BD-05T01PZ05 Micro Piezoelectric Pump

• Ultra-Low Noise Operation – Piezoelectric actuation eliminates motor noise, making it ideal for noise-sensitive devices such as wearables and medical equipment.
• Solid-State Reliability – No traditional rotating motor components, reducing wear and extending operational stability.
• Compact & Lightweight Design – Designed for tight integration in portable and space-constrained systems.
• Stable Airflow Output – Provides consistent airflow up to 1 L/min (no-load), suitable for precision applications.
• Low Power Consumption – Operates on 3.7–4.2V DC, ideal for battery-powered devices.
• Unidirectional Airflow – Ensures controlled airflow direction for system stability and simplified design.
• High-Frequency Operation – Driven at 22–28 kHz for efficient and smooth air movement.

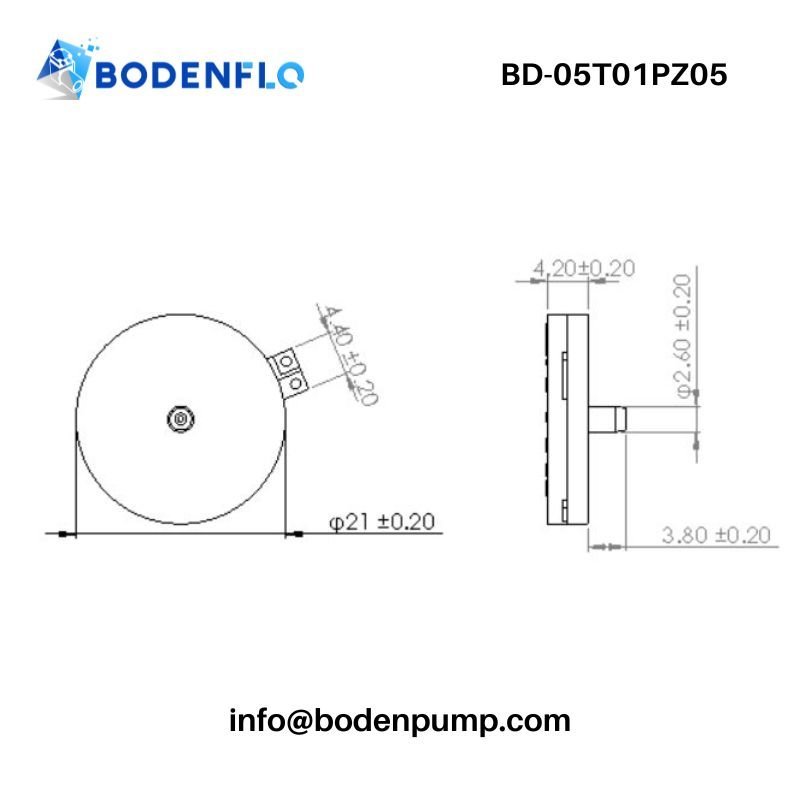

Technical Data – BD-05T01PZ05 Micro Piezo Pump

Parameter	Value
Model	BD-05T01PZ05
Input Voltage	3.7-4.2V DC
Ambient Temperature Range	5-60 °C
Drive Frequency	22–28 kHz (24 kHz @ 16.5 VDC)

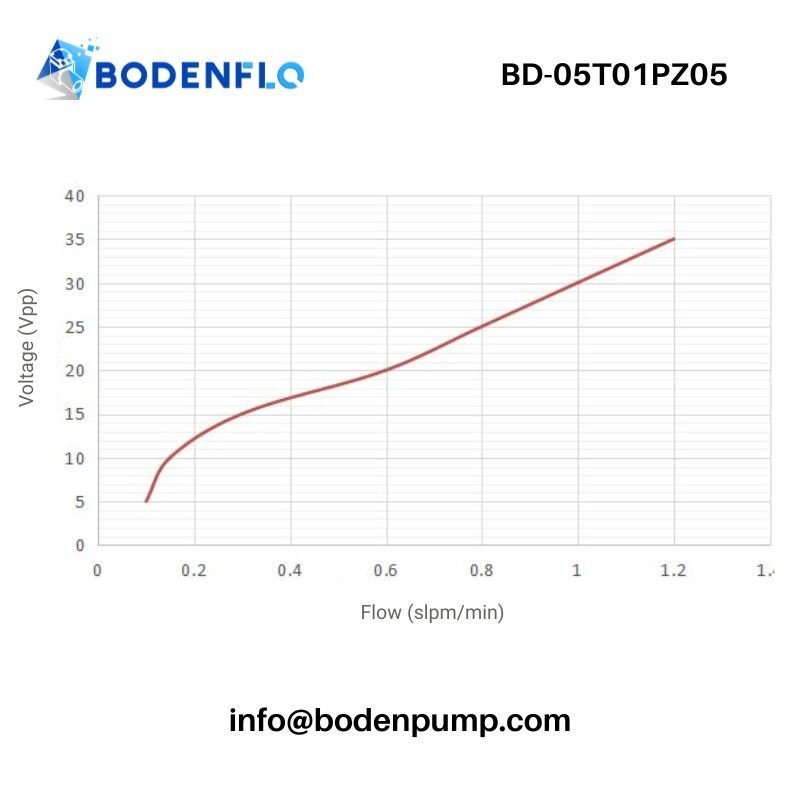

Flow Rate @ 15 Vpp	≥0.7 L/min
No-Load Flow Rate	1 L/min
Static  Pressure @15Vpp	1.42kPa
Static  Pressure	1kpa

Materials & Reliability (Standard Configuration)

Component	Material / Feature
Pump Chamber	PC housing for lightweight durability in portable analytical instruments
Inner Cavity	Ceramic cavity for wear resistance in precision micro-flow systems
Expected Lifetime	>5000 hours for long-term operation in embedded OEM equipment

OEM Customization Options

Feature for Personalization	Selection Choices
Wiring & Connector	Specify your own OEM cable configuration
Labeling	Use your logo or custom model ID

Applications – Micro Piezoelectric Pump

• Portable Electronics & Thermal Management-Functions as a micro cooling fanfor semiconductor chips, LED modules, and PCB systems, enabling efficient heat dissipation in compact electronic designs.
• Medical Devices & Healthcare-Provides quiet and precise airflow for blood pressure monitors, wearable health devices, nebulizers, and portable suction systems where noise and size are critical.
• Industrial & Environmental Monitoring-Suitable for gas detection systems, air sampling tools, and compact environmental monitoring devices requiring controlled low-flow airflow.
• OEM & Embedded Systems-Optimized for integration into miniaturized OEM products, offering engineers a compact, energy-efficient airflow solution with simplified system architecture.

Why Choose BODENFLO – Expertise in Micro Pump Technology

BODENFLO combines advanced piezoelectric technology with precision manufacturing to deliver high-performance micro airflow solutions for OEM partners worldwide.

• Proven Experience – 15+ years designing and delivering micro pumps, including piezoelectric, diaphragm, rotary vane, and miniature compressors, for medical, wearable, analytical, and industrial systems.
• Reliable Quality – ISO9001-controlled production ensures stable airflow, vacuum, and long-term performance in precision devices.
• Flexible OEM Solutions – Tailored integration of driver circuits, airflow tuning, mounting structures, and system-level design to meet compact device requirements.
• Engineering Support – Application-focused guidance on micro pump selection, vibration isolation, airflow optimization, and system-level performance matching.
• Global Supply Capability – Trusted by manufacturers of portable medical devices, wearable electronics, environmental analyzers, and OEM micro equipment.
• Energy-Efficient Design – Optimized low-power operation for battery-powered, portable, and space-constrained applications.

Customer Feedback – BD-05T01PZ05

“Extremely quiet and compact—ideal for our wearable cooling system.”
— Consumer Electronics Manufacturer, South Korea

“Stable airflow and low power consumption made integration into our portable analyzer very efficient.”
— Environmental Device Engineer, Germany

Installation & Driving Guide

• Use a dedicated driver circuit with 3.7–4.2 V DC input and 22–28 kHz frequency.
• Keep voltage within recommended range and operate below 60 °C to ensure long-term reliability.
• Airflow is unidirectional; do not disassemble or deform the pump.
• Operate only in clean, dry, filtered air; avoid liquids, high humidity, dust, smoke, or other contaminants.

Downloads – Datasheet

[BD-05T01PZ05 Micro Piezoelectric Pump（PDF)]

Frequently Asked Questions (FAQ)

Q1: What design advantages do piezo micro pumps offer for OEM systems?

They deliver compact, low-vibration, and low-noise airflow without rotating parts, enabling integration into handheld devices, analytical instruments, and microfluidic modules.

Q2: How does system integration affect performance?

Airflow stability depends on tubing layout, path restrictions, and driver design. Proper thermal and EMC management ensures consistent operation.

Q3: Which environments support long-term reliability?

Clean, dry indoor conditions with ambient temperatures below 60 °C maximize lifespan. Dust, humidity, smoke, or corrosive atmospheres should be avoided.

Q4: What electrical requirements are needed?

A dedicated high-frequency driver with regulated voltage and stable output is required for predictable flow and pressure. Thermal dissipation should be considered in the driver design.

Q5: How can airflow be optimized for different applications?

Optimizing system resistance, backpressure, and pump selection allows precise, repeatable flow and pressure across various OEM designs.

Q6: Are there piezo pumps for lower airflow applications?

Yes. The BD-05T01PZ20 provides precise micro airflow while maintaining compact, low-noise, and vibration-free characteristics ideal for sensitive OEM systems.

Contact Us

Whether you are developing wearable devices, cooling systems, portable analyzers, or embedded OEM solutions, BODENFLO provides compact and efficient piezoelectric pump solutions tailored for your application.

Our Services:

• System Consultation – Pump selection and integration guidance
• OEM Customization – Driver circuits, airflow design, and branding
• Engineering Support – Performance optimization and system matching
• Rapid Sampling – Fast prototype delivery
• Reliable Production – Consistent quality for global OEM supply
