BD-05T400WB gas-liquid mixed pump provides 400 mL/min liquid flow, 0.4 L/min gas flow, up to 6 bar pressure and –35 kPa vacuum, ideal for digital printing systems and biochemical analyzers, with oil-free, low-vibration operation ensuring stable, precise mixed-media transfer in compact OEM equipment.
| Voltage | 6 / 12 / 24 V |
|---|---|
| Max Flow | 400 mL/min (water), 0.4 L/min (gas) |
| Max Pressure | 6 bar (water), 70 kPa (gas) |
| Max Gas Vacuum | –35 kPa |
| Motor | DC Brushless Motor |
| Max Power | 5 W |
| Weight | 150 g |

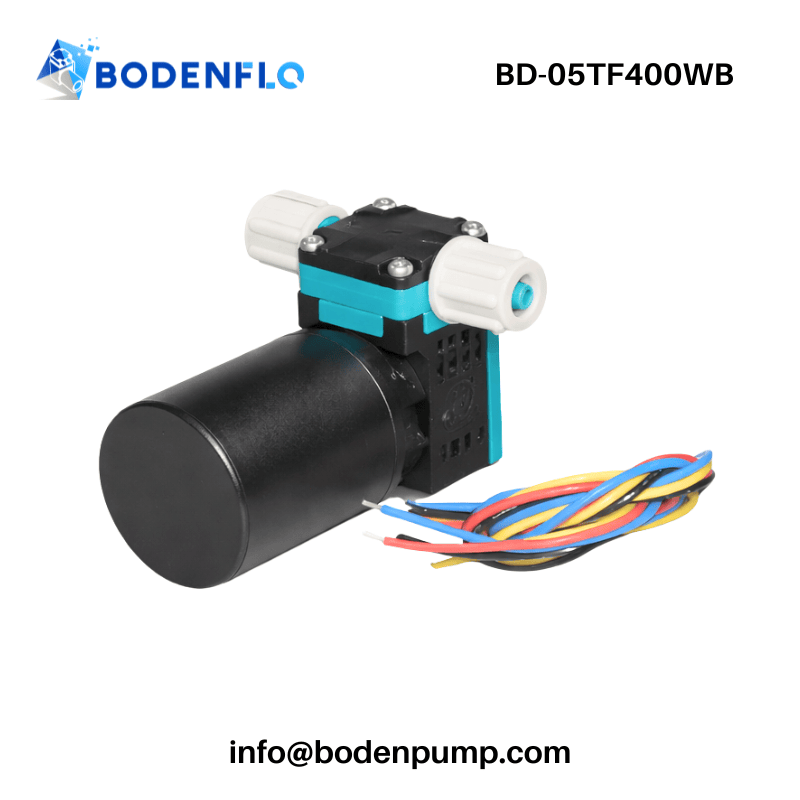

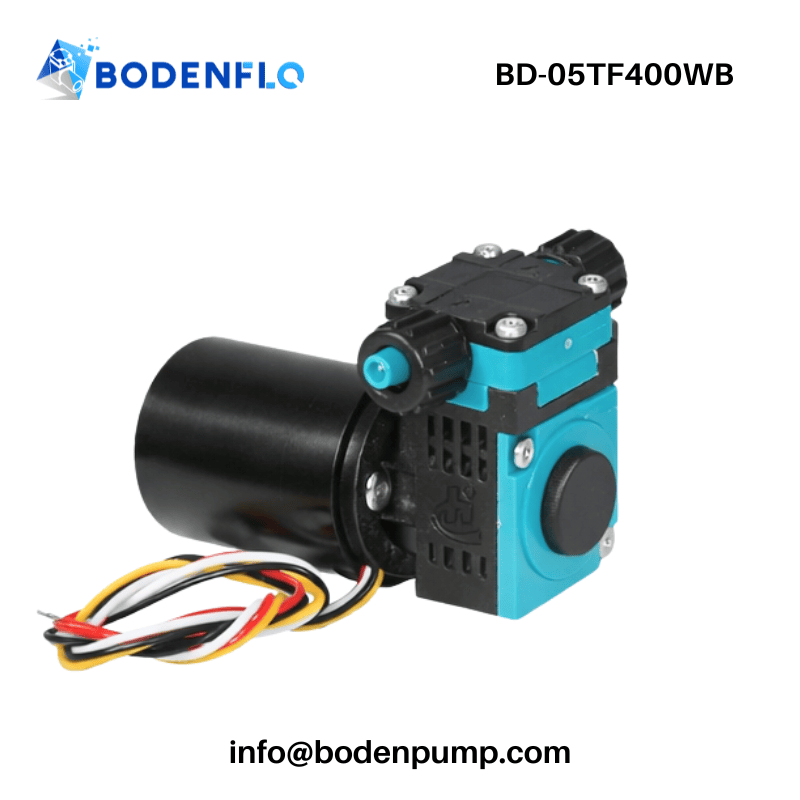

The BODENFLO BD-05T400WB miniature gas-liquid mixed pump is a compact solvent ink pump designed for reliable transfer of liquids and gases. It delivers up to 400 mL/min liquid and 0.4 L/min gas flow, with a maximum liquid pressure of 6 bar, ensuring stable mixed-media handling in industrial and laboratory equipment.
Powered by a brushless DC motor, the diaphragm mechanism provides smooth, low-vibration, oil-free operation for gas-liquid mixtures, liquid circulation, or gas-assisted transfer. With a PA66 pump head and EPDM diaphragm, it offers durable performance with a service life of up to 8000 hours, suitable for long-term OEM integration in analytical instruments, printing systems, and chemical processing equipment.
√ Oil-Free Pumping Structure
The diaphragm mechanism eliminates the need for lubrication, allowing clean transfer of gases and liquids without contamination.
√ Self-Priming Capability
The pump can automatically initiate suction when starting, simplifying system integration and reducing external priming requirements.
√ Gas-Liquid Mixed Media Compatibility
This gas-liquid mixed pump supports simultaneous handling of gas and liquid media, making it suitable for sampling systems, printing equipment, and fluid circulation applications.
√ Low Noise Operation
Operating at approximately 55 dB, the pump maintains quiet performance, making it suitable for laboratory instruments and compact equipment.
√ Dry-Running Resistance
The diaphragm structure allows short periods of dry operation without mechanical damage, improving operational reliability.
√ Compact System Integration
Its compact size allows easy installation inside small devices such as analytical instruments, sampling systems, and digital printing machines.
√ Long Service Life
The combination of a brushless motor and durable diaphragm structure ensures stable operation with an expected service life of up to 8000 hours.
For easier model selection, the main technical data of BD-05TF400WB is listed below.
You can review flow, pressure, power, and installation limits to see whether it matches your equipment requirements.
| Basic Information | |
| Model | BD-05TF400WB |
| Type | Micro Diaphragm Pump |
| Structure | Diaphragm Pump |
| Voltage Range | 6 V / 12 V / 24 V DC |
| Liquid Performance | |
| Free Water Flow | 400 mL/min (0.106 gpm) |
| Max Water Pressure | 6 bar (87 psi / 6000 mbar / 0.6 MPa) |
| Water Pressure Head | >15 m |
| Water Suction Head | 4 m |
| Gas Performance | |
| Free Gas Flow | 0.4 L/min (0.014 cfm) |
| Max Gas Pressure | 70 kPa (0.7 bar / 700 mbar / 10.2 psi) |
| Max Gas Vacuum | -35 kPa (-10.3 in.Hg / -350 mbar / -262 mmHg) |
| Electrical & Motor Data | |
| Motor Type | DC Brushless Motor |
| Max Power | 5 W |
| Noise | 55 dB |
| Lifetime | 8000 h |
| Speed Control Range | 0.5 V to 4.5 V |
| Mechanical Data | |

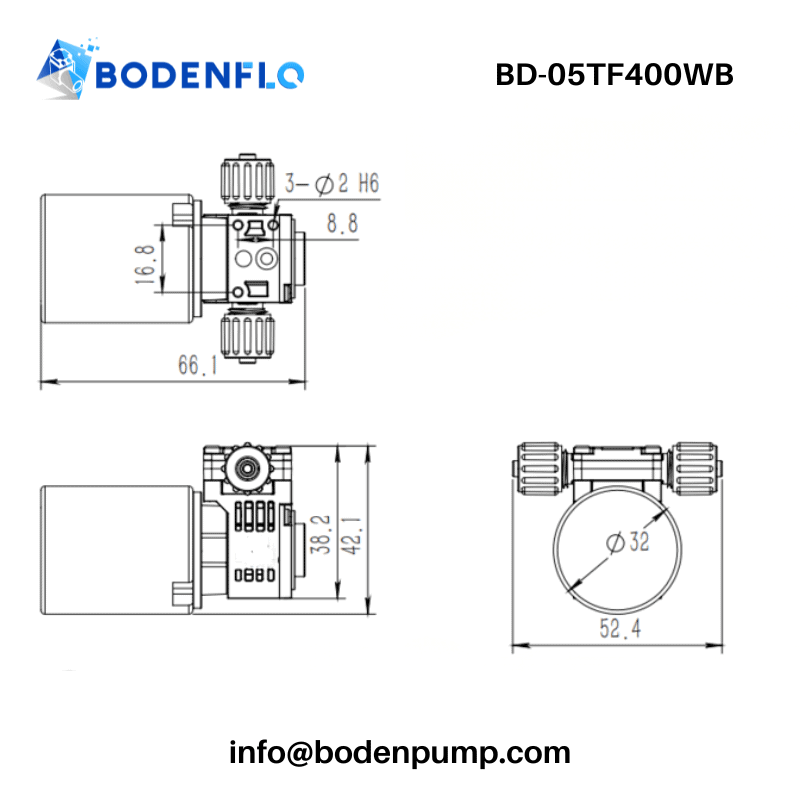

| Dimensions | 66.1 × 54.2 × 42.1 mm (2.60 × 2.13 × 1.66 in) |
| Weight | 150 g |
| Recommended Tubing Size | ID4mm, OD6mm |
| Operating Conditions | |
| Ambient Temperature | 5°C to 40°C |
| Fluid Temperature | 10°C to 60°C |
Water Flow Measurement:
Water flow is measured using a high-precision miniature electromagnetic flowmeter (electromagnetic induction volumetric flowmeter).
The test setup includes approximately 1 m inlet and outlet tubing to simulate practical installation conditions.
Noise Measurement:
Noise is measured at a distance of 1 m from the pump during normal operation under standard working conditions.
Lifetime Testing:
Lifetime is evaluated under continuous 24-hour no-load operation, with both inlet and outlet open to atmosphere (ambient pressure conditions).
For most OEM applications, the standard material configuration provides a practical balance of compatibility, durability, and stable performance.
| Component | Material / Feature |
|---|---|
| Pump Head | PA66 engineering plastic |
| Diaphragm | EPDM |
| Valve | EPDM |
If your application involves more aggressive media or stricter durability requirements, upgraded material options can be considered. For example, the pump can be configured with a PPS pump head, PTFE diaphragm, and FFPM valves to improve resistance to solvents, corrosive liquids, and reactive gases.
Maintains stable ink circulation and gas-assisted ink supply for industrial coding and printing systems.
Ensures accurate transfer of reagents and sampling fluids in laboratory diagnostic instruments.
Provides reliable suction and discharge cycles for automated laboratory washing systems.
Used for reagent delivery, liquid sampling, and gas-liquid circulation in analytical instruments.
Compact design allows integration into portable environmental sampling equipment.
Supports controlled transfer of cleaning liquids and air-assisted spraying systems.
Proper installation ensures stable performance and longer service life.
Install a ≤30 μm filter at the pump inlet to prevent particles from entering the pump chamber.
Correct installation reduces vibration and improves system stability.
BODENFLO specializes in the design and manufacturing of micro pumps and diaphragm pumping solutions for global OEM equipment manufacturers.
√ Professional Micro Pump Engineering
Experience in miniature liquid pumps, vacuum pumps, and gas-liquid diaphragm pumps.
√ ISO9001 Manufacturing System
Strict quality control ensures consistent performance and reliability.
√ OEM-Focused Design Support
Flexible customization for electrical configuration, materials, and system integration.
√ Cost-Effective Alternative to Global Brands
High performance with competitive manufacturing advantages.
√ Stable Production Capacity
Dual production lines ensure reliable supply for international OEM partners.
The following feedback reflects how customers use the BD-05T400WB gas-liquid pump in real OEM equipment and what they value most in actual applications, helping potential buyers assess system compatibility and real-world performance.
Application: Ink circulation system / industrial printing platform
Feedback: The pump maintains stable ink circulation and handles gas-liquid mixtures effectively during continuous operation. It performs reliably in compact printing system architectures where flow stability is critical.
Application: Liquid sampling device / laboratory fluid handling system
Feedback: Its compact structure and quiet operation make it well suited for laboratory sampling applications. The system integration is straightforward, and it maintains consistent performance during precise fluid handling tasks.
[BD-05T400WB Gas-Liquid Mixed Pump Datasheet (PDF)]
Unstable flow often results from backpressure fluctuations, improper tubing connections, or particle contamination in the fluid path. Installing precision filters, using rigid tubing, and ensuring tight fittings can stabilize flow and prevent suction or discharge inconsistencies.
Pump performance can be affected by vibration, orientation, and intermittent operation. Using vibration-damping mounts, proper inlet/outlet alignment, and avoiding long periods of dry running helps maintain consistent gas-liquid transfer and extends pump lifetime.
Select compatible materials for corrosive fluids, control inlet/outlet pressure, and provide speed control signals if needed. Ensuring system cleanliness and integrating the pump with appropriate filtration and feedback loops reduces maintenance and improves operational stability.
BODENFLO supports multiple payment options including PayPal, credit card, and T/T bank transfer. Contact us via info@bodenpump.com to request a quotation, place an order, or discuss OEM customization requirements.
Yes. For applications requiring greater capacity, the BD-05TF300WB pump delivers up to 450 mL/min liquid flow while maintaining gas-liquid mixed operation, suitable for larger-scale or higher-demand OEM systems.
If you are developing printing equipment, analytical instruments, or automated fluid handling systems, BODENFLO provides reliable miniature gas-liquid mixed pump solutions for OEM integration.
