Which Is Better: A Piston or a Diaphragm Vacuum Pump?

Your project has a precise performance target, but pump specs are confusing. Choosing a pump that's strong in pressure when you need deep vacuum can cause your entire system to fail, wasting time and money.

The "better" pump is the one that excels at your specific task. Miniature piston pumps are pressure specialists, ideal for applications requiring high positive pressure. Miniature diaphragm pumps are vacuum champions, with multi-head designs capable of achieving a deeper, more stable vacuum down to -100 kPa.

I've seen many designs where an engineer chose a pump based on a single impressive number, without understanding its primary strength. The truth is, these two types of pumps are engineered for different kinds of work. A piston pump uses its design to be a powerful compressor. A diaphragm pump uses its unique mechanics to be a superior evacuator. Let's explore why this distinction is so critical for your application.

Do You Need High Pressure or Deep Vacuum?

You're stuck between two pumps. One boasts high pressure output, the other a deeper vacuum level. You're not sure which is more important or why they differ so much.

Choose the pump designed for the job. Miniature piston pumps are built to be powerful air compressors, excelling at positive pressure. Miniature diaphragm pumps are optimized for evacuation, making them the superior choice for applications needing the deepest possible vacuum.

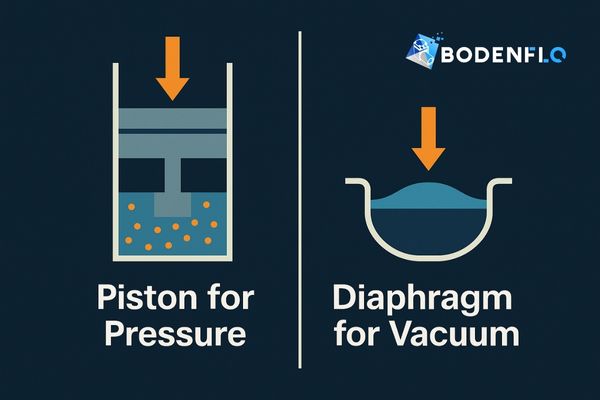

A Tale of Two Specialties

It’s not an accident that these pumps excel in different areas; it’s fundamental to their design.

Piston Pumps¹: The Pressure Champions
A piston pump works by driving a piston into a small, sealed cylinder. This action is incredibly effective at compressing the air trapped inside, generating high positive pressure efficiently. While they can also create a good vacuum (typically up to -90 kPa), their real strength lies in pushing, not pulling. Think of it as an excellent air compressor in a tiny package. This makes them ideal for tasks requiring forceful air output.

Diaphragm Pumps²: The Vacuum Specialists
A diaphragm pump creates a vacuum by flexing a membrane to increase the volume within the pump head. This creates a larger, more easily sealed vacuum chamber. At BODENFLO, we take this further with multi-head technology. By linking four heads in sequence, we can create a multi-stage vacuum system. The first head does the initial evacuation, and the next head pulls a vacuum on an already-evacuated space, allowing the pump to pull down to extremely deep levels—as low as -100 kPa. While they generate decent positive pressure, their design is optimized for creating a void.

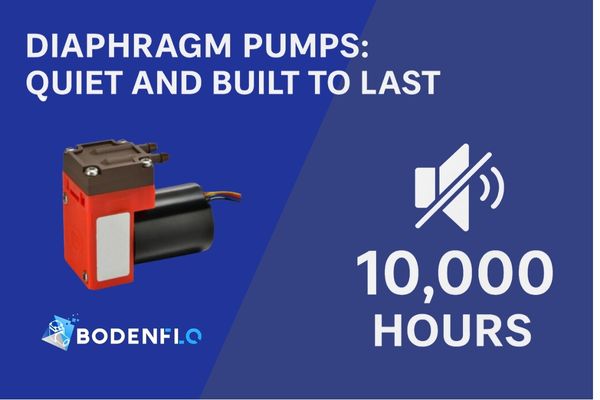

Are You Prioritizing Longevity and Quiet Operation?

Your device needs to run for thousands of hours without maintenance, or it's used in a noise-sensitive environment. The wrong pump will lead to early failure and user complaints about noise.

Diaphragm pumps offer a clear advantage in lifespan and quietness. Their design avoids the sliding friction that causes wear and noise in piston pumps, making them the superior choice for long-term, discreet operation.

The Critical Impact of Friction

The difference between a pump that lasts 3,000 hours and one that lasts 10,000 hours often comes down to one thing: friction.

Piston Pump Wear: Even in oil-free designs, a piston pump relies on a seal sliding against a cylinder wall. This constant rubbing is a source of friction, which generates heat, noise, and wear. The piston seal is a consumable part that will degrade over millions of cycles, leading to a gradual loss of performance and eventual failure. This friction is also what makes piston pumps inherently noisier.

Diaphragm Pump Endurance¹: Our diaphragm pumps are designed to minimize friction. The diaphragm itself does all the work by flexing, driven by a cam on a bearing. There are no sliding seals in the air path. This elegant, simple motion generates very little wear, heat, or noise. We select robust materials for our diaphragms and valves, engineering them for maximum endurance. This is why our pumps can achieve lifespans of 10,000 hours or more while maintaining quiet performance, a critical feature for medical devices, laboratory instruments, and high-end electronics. Choosing a diaphragm pump is choosing a design that is fundamentally built for longevity.

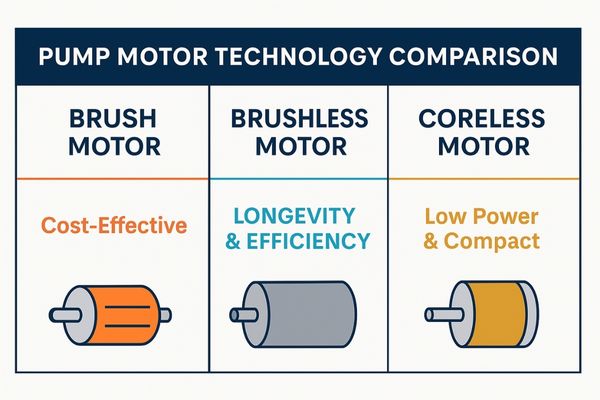

Does the Motor Type Really Matter for My Pump?

Your pump meets the performance specs but fails long before its expected lifetime. The overlooked motor choice is often the reason, silently dictating the reliability of your entire device.

Yes, the motor is the heart of the pump. Brush motors are economical for standard use. Brushless motors offer extreme longevity and efficiency for continuous operation. Coreless motors provide compact, low-power precision for battery-operated devices.

The Heart of the Pump

The motor isn't just an accessory; it defines the pump's character and lifespan. Choosing the right one is as important as choosing the right pump head.

Brush Motors¹: These are the traditional workhorses. They are simple, reliable for standard use, and cost-effective. However, their carbon brushes physically contact the commutator, causing them to wear down over time. This limits their lifespan, as seen in models rated for 2,500-5,000 hours.

Brushless DC (BLDC) Motors²: These are the choice for elite performance and longevity. They use electronics instead of brushes to commutate, eliminating the primary wear part. This results in much longer life (8,000+ hours), higher efficiency, less heat, and quieter operation. They are ideal for devices that run continuously or where maintenance is impossible.

Coreless Motors³: This is a specialized motor for ultimate portability. By removing the iron core from the rotor, the motor becomes incredibly light and responsive, with very low power consumption. It's the perfect choice for small, battery-powered devices where size, weight, and energy efficiency are the top priorities.

How Can You Configure One Pump for More Flow or Deeper Vacuum?

You're stuck choosing between two pumps: one has the flow you need, the other has the vacuum. This design compromise forces you to sacrifice a key performance metric and complicates your inventory.

With a dual-head diaphragm pump, you don't have to choose. By changing how the heads are plumbed, you can configure it "in parallel" for double the flow rate or "in series" for a significantly deeper vacuum level.

Getting Two Pumps in One

This is one of the most powerful features of our dual-head diaphragm pumps. It provides incredible flexibility from a single component. The magic lies in how you direct the airflow between the two pump heads.

Connection in Parallel:
In this setup, both pump heads work together, drawing air from a single inlet and exhausting it through a single outlet. Imagine two people bailing water out of a boat with two buckets—they work side-by-side to move more water, faster. This configuration doubles the flow rate (L/min)⁴ while maintaining the vacuum level of a single head.

Connection in Series:
Here, the heads work in a sequence. The outlet of the first head is connected to the inlet of the second head. The first head does the initial work, creating a partial vacuum. The second head then starts pulling from this already-evacuated space, allowing it to achieve a much deeper final vacuum level⁵. The trade-off is that the flow rate is limited to that of a single head. It's like a two-stage rocket for vacuum. This versatility, seen in models like our BD-05T057.2L, is a game-changer for designers.

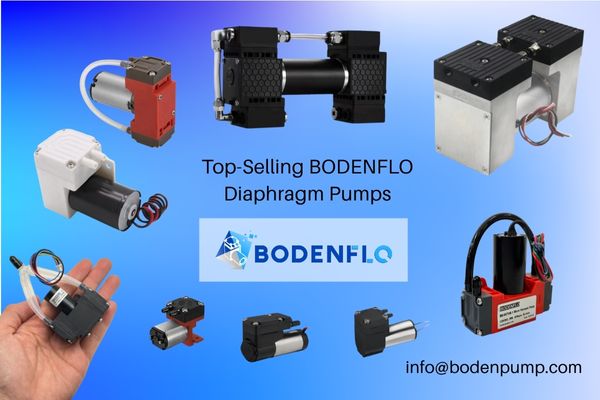

Which BODENFLO Diaphragm Pumps Are Our Top Sellers?

You need a proven solution but don't want to sift through dozens of spec sheets. Seeing what other engineers trust can save you time and reduce risk in your design process.

Our top sellers range from powerful, continuous-duty pumps for deep vacuum to ultra-compact pumps for portable devices. Models like the BD-05T30K and BD-05T02.53000 showcase the breadth and capability of our diaphragm pump technology.

A Look at Our Proven Performers

Here are a few of our most popular models, each designed to solve a specific set of challenges. This gives you a snapshot of what's possible with modern diaphragm pump technology.

The BD-05T30K is the choice for demanding, 24/7 industrial or medical applications where flow and longevity are paramount. In contrast, the tiny BD-05T02.53000 is a favorite for engineers designing the next generation of portable, battery-powered diagnostic devices.

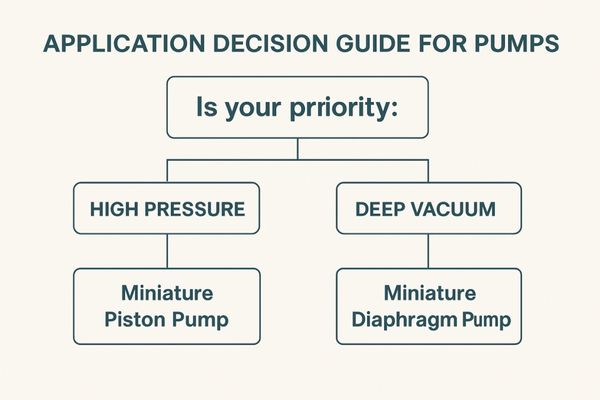

Which Pump Is Right for Your Specific Application?

You understand the technical details, but how do you make the final, real-world decision? You need to connect the pump's core strength directly to your product's most important function.

Match the pump's specialty to your application's priority. If you're inflating or need high pressure, a piston pump is a strong contender. If you're sampling, holding with suction, or need deep, stable vacuum, a diaphragm pump is the clear choice.

Making the Practical Choice

Let's apply this knowledge to common applications. The right choice becomes obvious when you focus on the primary task your pump must perform.

Choose a Miniature Diaphragm Pump for:

• Gas Analysis⁶ & Environmental Sampling⁷: These require drawing a sample into a sensor. The key here is deep, stable vacuum (-90 to -100 kPa) to ensure a pure, representative sample. The oil-free nature is also non-negotiable.
• Medical Suction Devices⁸: Applications like negative pressure wound therapy or clearing airways demand strong, reliable vacuum. Our multi-head diaphragm pumps provide the deep vacuum needed for effective therapy.
• Robotic Pick-and-Place⁹: Holding a delicate electronic component with a vacuum cup requires a good seal. The deep vacuum from a diaphragm pump provides a more secure grip.

Choose a Miniature Piston Pump for:

• Portable Tire Inflators: The main job is to compress ambient air to a high pressure. This is a perfect task for a piston pump's compressive strength.
• Pneumatic Actuators: Small automated devices might use bursts of high-pressure air to move a valve or a small cylinder. A piston pump can deliver this pressure quickly.

Conclusion

Piston pumps are pressure masters, perfect for compression tasks. Diaphragm pumps are vacuum specialists, excelling at deep evacuation with quiet, long-lasting performance. Choose the pump that specializes in the work you need done.
