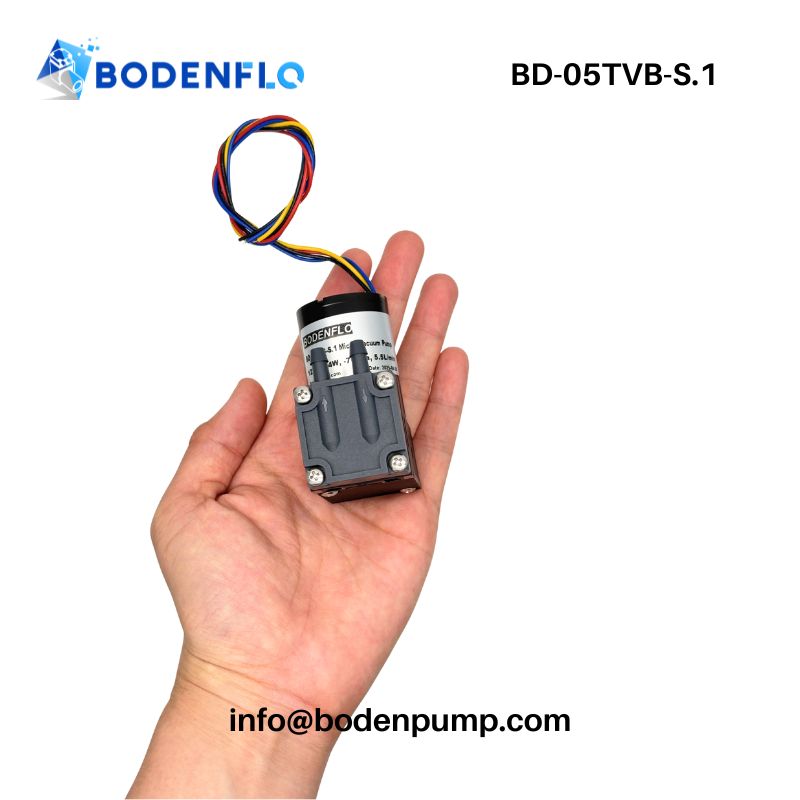

This miniature DC diaphragm pump uses a brushless motor to drive a flexible diaphragm, producing oil-free, maintenance-free vacuum and pressure. Ideal for integration in gas sampling, medical suction, and compact lab automation systems.
| Voltage | 12/24V |
|---|---|
| Max Flow | 5.5L/min |
| Max Vacuum | –70 kPa |
| Max Pressure | 1~1.5Bar |
| Motor | DC brushless motor |
| Max Power | 4 W |
| Weight | 148g |

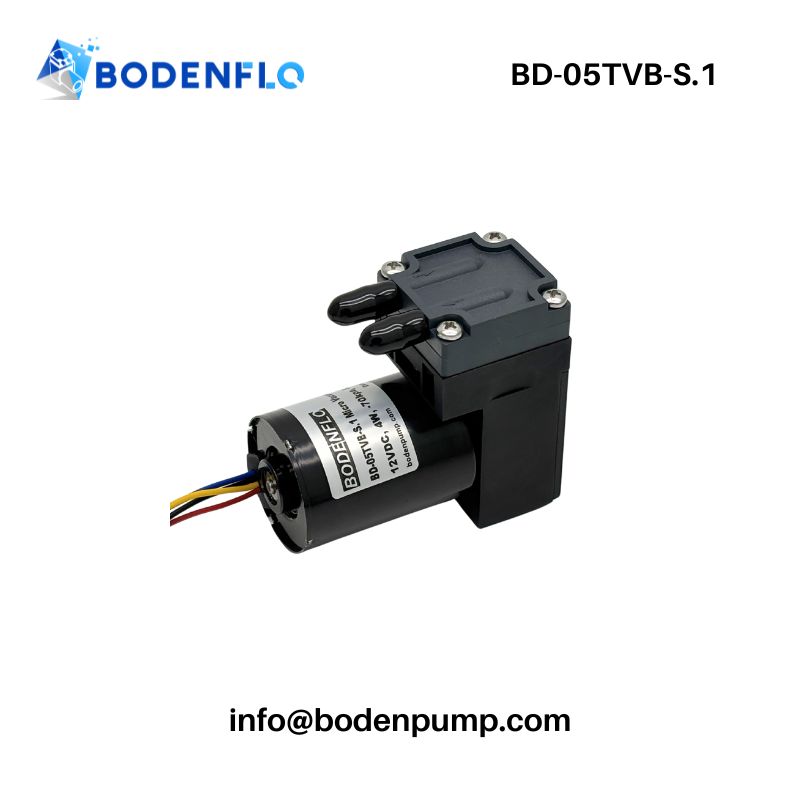

The BD-05TVB-S.1 uses a brushless DC motor to drive a reciprocating diaphragm, creating clean, oil-free airflow or vacuum. Gas enters during suction and exits under pressure through check valves—ensuring stable, contamination-free performance.

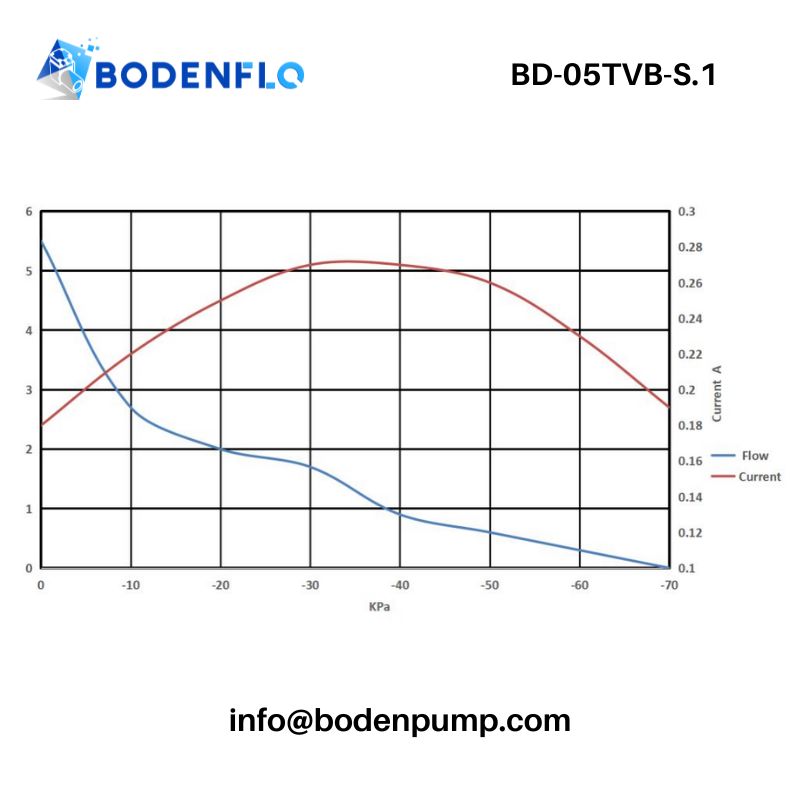

With a maximum flow rate of 5.5 L/min, vacuum suction up to –70 kPa, and positive pressure up to 1.5 Bar, this mini compressor pump offers stable performance for both vacuum and pressure-based systems.
Its compact structure (only 148 g) and reliable output make it ideal for applications such as negative pressure wound therapy (NPWT), vacuum gas sampling, and laboratory automation. Built with corrosion-resistant materials and optimized for long service life, it is a preferred solution for engineers integrating into space-constrained systems requiring high precision.
✓ Compact design with large output: up to 5.5 L/min flow
✓ High vacuum performance: –70 kPa, pressure up to 1.5 Bar
✓ Long life brushless DC motor: up to 8000 hours continuous duty
✓ Low power consumption: only 4 W
✓ Stable gas flow across wide operating voltage
✓ High-grade sealing: low leakage, high purity gas path
✓ Corrosion-resistant materials: EPDM/FKM rubber, PPS head
✓ Pollution-free airflow – ideal for gas sampling applications
| Parameter | Value |
|---|---|
| Model | BD-05TVB-S.1 |
| Voltage Range | 12 V / 24 V |
| Max Flow | 5.5 L/min |
| Max Negative Pressure | –70 kPa |
| Max Positive Pressure | 1~1.5 Bar |
| Motor Type | Brushless DC Motor |
| Max Power | 4 W |
| IP Rating | IP20 |
| Service Life | >8000 hours |
| Storage Temp. | –40 ℃ ~ 60 ℃ |
| Operating Temp. | –20 ℃ ~ 50 ℃ |
| Medium Temp. | –10 ℃ ~ 45 ℃ |

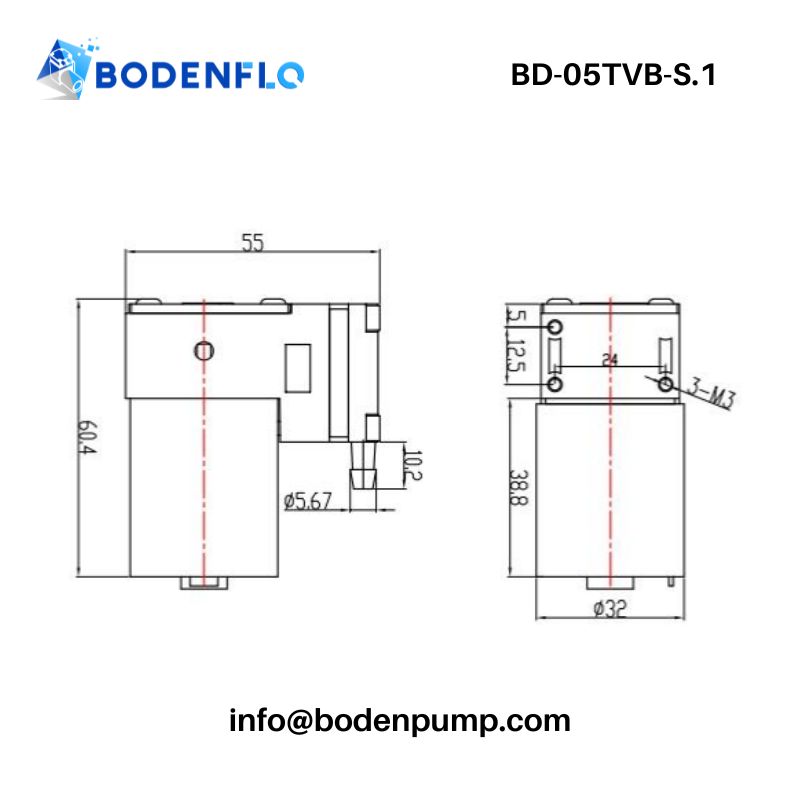

| Dimensions | 60.4 × 32 × 55 mm |
| Weight | 148 g |
| Component | Material / Notes |
|---|---|
| Pump Head | PPS – High-temperature, corrosion resistant |
| Diaphragm | EPDM (FKM optional) – High chemical resistance |
| Valve | EPDM (FKM optional) |
| Pump Body | Nylon – Strong, lightweight, durable |
| Bearings | Imported ball bearings – Reduce noise, extend life |
| Seal Design | Custom professional seal – Ensures low leakage |
📌 Negative Pressure Wound Therapy – Stable vacuum for wound drainage and healing devices.
📌 Gas Sampling & Air Analysis – Oil-free gas sampling in environmental and chemical analysis.
📌 Laboratory Systems – Continuous suction or pressure for automation, testing, and air handling.
📌 Medical & Portable Devices – Compact pressure generation in wearable and battery-powered systems.
📌 Embedded Gas Sensors – Drives air flow across sensor membranes in detection systems.
📌 Precision Equipment – Reliable vacuum/pressure source in metering, filtering, or microfluidic equipment.
| Customization Aspect | Options / Notes |
|---|---|
| Voltage / Connector | 12V or 24V, custom cables and connectors |
| Diaphragm Material | Standard EPDM or optional FKM for chemicals |
| Label / Branding | OEM branding and private label options |
| Mounting and Ports | Tailored for your equipment design |
Selecting a miniature pump supplier goes beyond product specifications. It requires a partner with proven reliability, technical depth, and global OEM experience. BODENFLO delivers exactly that:
Deep Industry Expertise – With over 15 years focused exclusively on micro pump technologies, we have developed more than 300 standard models and numerous custom solutions covering diaphragm, piston, compressor, and rotary vane pumps.
Assured Quality Standards – ISO9001-certified factory with comprehensive QC and full traceability. Every pump undergoes rigorous performance, noise, and durability testing to meet the strictest medical, analytical, and industrial standards.
Tailored OEM Customization – Flexible options from diaphragm materials (EPDM, FKM, FFKM, PTFE) to wiring, connectors, and multi-head designs. Our engineering team works with you to adapt pumps precisely to your system requirements.
Accelerated Development Cycles – From rapid prototyping to application-specific engineering support, we help OEM partners shorten time-to-market while reducing R&D costs.
Proven Global Track Record – Trusted by OEMs across Europe, North America, Brazil, South Korea, and other industrial markets. Our pumps power gas analyzers, medical devices, portable instruments, automation systems, and environmental monitoring equipment worldwide.
Competitive and Sustainable Value – Delivering equivalent or superior performance to leading EU/US brands, while maintaining cost-effectiveness to support your long-term competitiveness.
“We selected the BD-05TVB-S.1 for our vacuum sampling equipment. The brushless motor provides quiet, long-lasting operation in harsh lab conditions.”
– Lab Equipment Engineer, USA
“Excellent suction and pressure performance in such a compact size. It integrated easily into our NPWT device.”
– Medical Device Project Lead, South Korea
“After 8,000 hours of continuous running, the BD-05TVB-S.1 is still stable and leak-free. Impressive quality.”
– Instrumentation OEM Manager, Germany
For quick integration, the BD-05TVB-S is designed with simple 2-wire connection:
This straightforward wiring makes it easy to integrate the pump into compact instruments without complex setup.
[BD-05TVB-S.1 Miniature Diaphragm Pump Datasheet (PDF)]
Q1: What is the difference between BD-05TVB-S and BD-05TVB-S.1?
The BD-05TVB-S is a higher-spec pump with 10,000+ hours lifespan and flow up to 4.6 L/min, while BD-05TVB-S.1 is a lower-spec, cost-effective version with 8,000 hours lifespan but higher maximum flow at 5.5 L/min.
Q2: Does the BD-05TVB-S have a dual-head version?
Yes. The dual-head BD-05TVB is available:
Parallel connection: Flow 7.2 L/min, Vacuum –70 kPa
Series connection: Flow 4.6 L/min, Vacuum –90 kPa
Max positive pressure: 1–1.5 bar
