High-pressure, oil-free micro piston compressor delivering up to 32 L/min airflow (parallel) and –98 kPa vacuum (series). Compact, low-vibration, and durable for medical rehabilitation, automation, and high-pressure atomization applications.
| Voltage | 12V / 24V |
|---|---|
| Max Flow | 32L/minParallel) / 17L/min(Series) |
| Max Vacuum | –85 kPa(Parallel) / –98 kPa(Series) |
| Max Pressure | 8–10Bar (almost no flow at 10Bar) |
| Motor | High-end brushed DC motor |
| Max Power | 150W |
| Weight | 2063g |

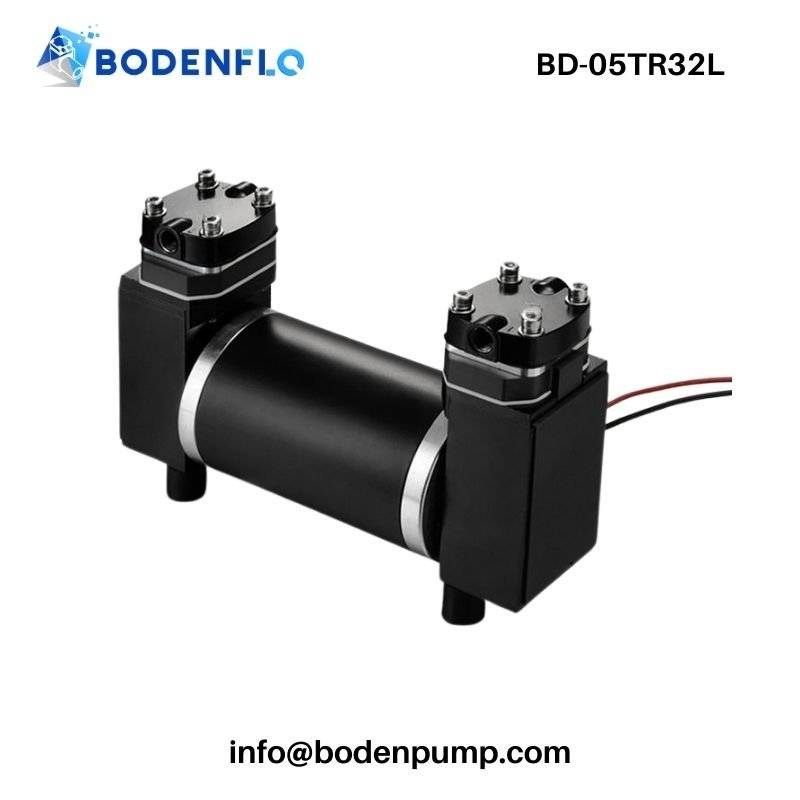

The BD-05TR32L is a high-pressure, industrial-grade micro piston compressor engineered for demanding pneumatic applications requiring strong vacuum performance, high positive pressure, and robust long-term reliability. Designed with an aluminum alloy pump body, PTFE piston cup, and stainless-steel valve system, this model delivers dual operating modes to support both high-flow and high-vacuum requirements:
Parallel mode: 32 L/min flow, –85 kPa vacuum
Series mode: 17 L/min flow, –98 kPa deep vacuum
Powered by a high-end 150W brushed DC motor, the BD-05TR32L is built for continuous-duty performance in environments where high pressure up to 8–10 bar is required (with limited flow at 10 bar). The oil-free compression design ensures clean, contamination-free gas handling for medical, analytical, automation, and environmental systems.
This model is ideal for pressurization systems, vacuum sampling, robotics, atomization, high-pressure pneumatic devices, and medical rehabilitation equipment.
✓ High-pressure capability – Delivers up to 10 bar output pressure with stable operation in demanding pneumatic applications.
✓ Dual-mode performance – Parallel mode for high flow (32 L/min), series mode for deep vacuum (–98 kPa).
✓ Oil-free compression – PTFE piston cup ensures zero contamination and clean gas output.
✓ Low vibration design – Optimized dynamic balance significantly reduces vibration for stable system integration.
✓ Stainless-steel valve system – Excellent durability and resistance to repeated high-pressure impact.
✓ Threaded G1/8 ports – Secure and leak-resistant connection for industrial piping systems.

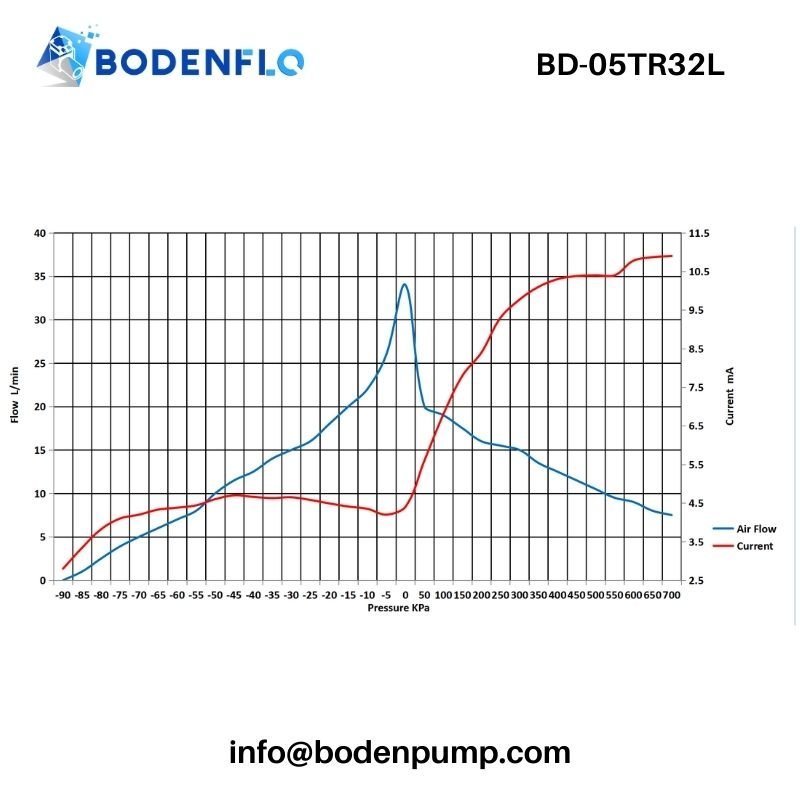

| Parameter | Value |
|---|---|
| Model | BD-05TR32L |
| Voltage Range | 12 / 24 V DC |
| Flow (Parallel) | 32 L/min |
| Vacuum (Parallel) | –85 kPa |
| Flow (Series) | 17 L/min |
| Vacuum (Series) | –98 kPa |
| Max Positive Pressure | 8–10 bar (very low flow at 10 bar) |
| Motor Type | High-end brushed DC motor |
| Max Power | 150 W |
| Waterproof Level | IP00 |
| Storage Temperature | –40 ℃ ~ 60 ℃ |
| Medium Temperature | –10 ℃ ~ 45 ℃ |
| Inlet/Outlet | G1/8 threaded |

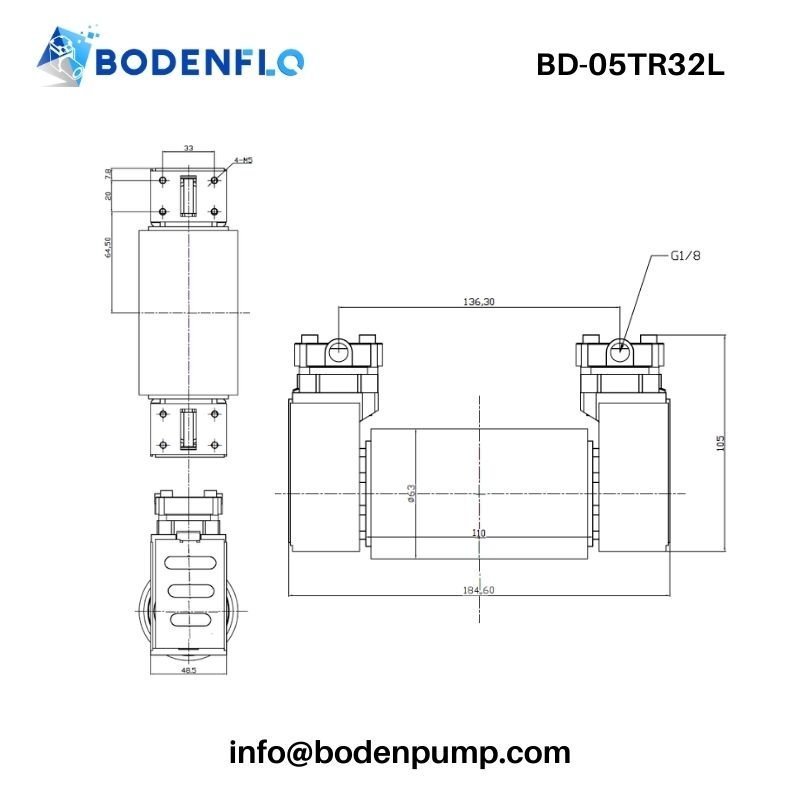

| Dimensions | 185 × 63 × 105 mm |
| Weight | 2063 g |
| Component | Material / Performance |
|---|---|
| Pump Head | Aluminum alloy |
| Valve Plate | Stainless steel |
| Piston Cup | PTFE |
| Pump Body | Aluminum alloy |
| Inlet / Outlet | G1/8 threaded |
📌 Medical rehabilitation equipment – Provides controlled airflow for therapeutic pneumatic systems.
📌 Pressurization therapy devices – Supports long-cycle compression and medical pneumatic actuation.
📌 Vacuum sampling systems – Ensures stable negative pressure for analytical sampling and inspection.
📌 High-pressure atomization and spray units – Supplies strong and consistent airflow for micro atomization systems.
📌 Cleaning and disinfection equipment – Provides high-pressure air for spray-based disinfection platforms.
📌 Automation equipment – Delivers reliable pressure or vacuum for industrial actuators and pneumatic mechanisms.
📌 Robotics and handling systems – Ideal for gripping modules, suction systems, and end-effectors requiring stable pneumatic performance.
| Aspect | Available Options |
|---|---|
| Piston Cup Material | PTFE (standard) |
| Voltage | 12 V / 24 V |
| Connector Type | Customized per customer specification |
| Label / Branding | Based on the model provided by the customer |
| Mounting Options | Brackets, dampers, custom installation bases |
| Cable / Connector | Custom lengths, terminals, plug types |
Selecting a micro pump supplier goes beyond specifications—it requires a manufacturer capable of supporting system performance, long-term reliability, and scalable OEM integration.
BODENFLO focuses on micro diaphragm pumps and micro piston pumps, delivering oil-free vacuum, controlled airflow, and compact high-pressure solutions across diverse applications.
Core Advantages
BODENFLO is trusted by OEM customers worldwide in medical devices, analytical instruments, industrial automation, environmental monitoring, and smart equipment—delivering scalable micro pump platforms that grow with your products.
“The BD-05TR32L delivered the pressure performance we needed for our pneumatic therapy device, with stable operation even under long-term load.”
— Medical Device Engineer, Finland
“The stainless-steel valve design and PTFE piston cup provided excellent corrosion resistance during high-pressure atomization testing.”
— R&D Team Lead, Germany
Installation & Wiring Guide
The BD-05TR32L is designed for easy integration into industrial and laboratory systems with a straightforward 2-wire configuration:
This simple wiring structure allows quick installation into compact equipment, ensuring fast setup without additional control modules or complex circuitry.
[BD-05TR32L High-Pressure Piston Compressor Download Datasheet (PDF)]
Q1｜Does the high-pressure piston pump require cooling?
For positive pressure operation, cooling is strongly recommended.
Common cooling methods include:
Forced air cooling (fan)
Water cooling systems
This prevents heat buildup and extends motor and piston lifespan.
Q2｜Can the pump support both high vacuum and high pressure?
Yes.
Parallel mode: optimized for high flow, moderate vacuum (–85 kPa).
Series mode: optimized for deep vacuum (–98 kPa).
The pump can also generate up to 10 bar pressure with minimal flow.
Q3｜Can this pump run continuously under high load?
Yes, but:
Maintain airflow around the pump
Avoid high ambient temperatures
Add cooling when using high pressure
These practices extend service life and prevent overheating.
Q4｜Is the pump suitable for corrosive air or gas?
The PTFE piston cup and stainless-steel valve provide good chemical resistance.
However, for highly corrosive gases, testing with real media is recommended.
Q5｜Can the pump be used for robotic gripping systems?
Absolutely.
Its stable vacuum, low vibration, and compact size make it ideal for:
Pneumatic grippers
Pick-and-place robots
Surface handling systems
Looking for a high-pressure piston compressor with dual-mode performance and robust industrial reliability?
BODENFLO provides:
✔ Fast prototyping & sample delivery (1–3 days)
✔ Full datasheets, wiring guides & STP files
✔ OEM customization for connectors, meterials, and label
✔ Engineering support from design to mass production
